Mode
Enable 2 Subnet
(Simulate 2 APs)
Hide SSID
SSID
Subnet
Isolate Member
VLAN ID
Channel
Extension Channel
Channel Width

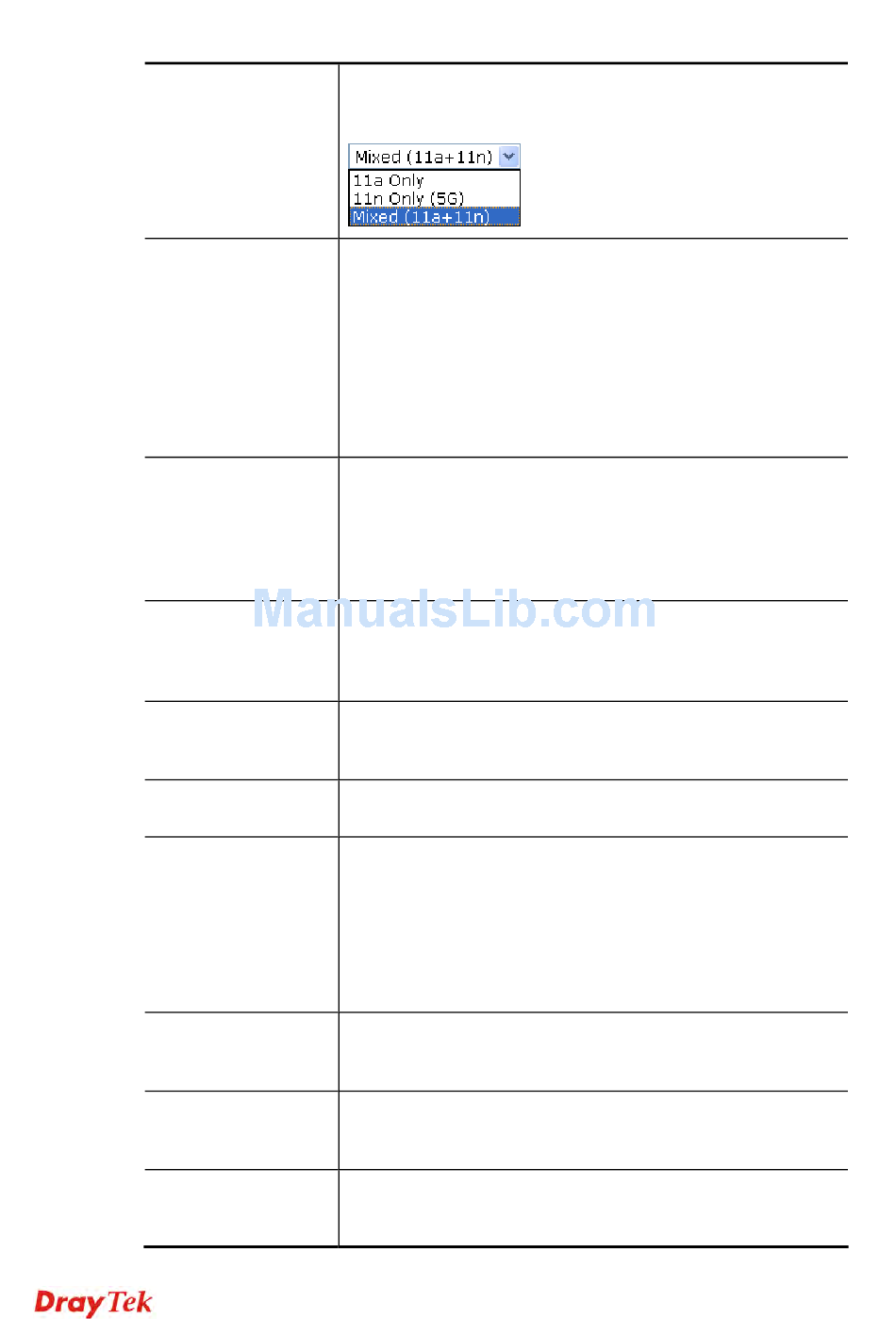

At present, VigorAP 900 can be connected by 11a only, 11n
only (5G), Mixed (11a+11n) stations simultaneously. Simply
choose Mixed (11a+11n) mode.
Check the box to enable the function for two independent
subnets. Once you enable this function, LAN-A and LAN-B
would be independent. Next, you can connect one router in
LAN-A, and another router in LAN-B. Such mechanism can
make you feeling that you have two independent AP/subnet
functions in one VigorAP 900.
If you disable this function, LAN-A and LAN-B ports are in the
same domain. You could only connect one router (no matter
connecting to LAN-A or LAN-B) in this environment.
Check it to prevent from wireless sniffing and make it harder for
unauthorized clients or STAs to join your wireless LAN.
Depending on the wireless utility, the user may only see the
information except SSID or just cannot see any thing about
VigorAP 900 while site surveying. The system allows you to set
four sets of SSID for different usage.
Set a name for VigorAP 900 to be identified. Default settings are
Draytek_5G-LANA and Draytek_5G-LANB. When Enable 2
Subnet is enabled, you can specify subnet interface (LAN-A or
LAN-B) for each SSID by using the drop down menu.
Choose LAN-A or LAN-B for each SSID. If you choose
LAN-A, the wireless clients connecting to this SSID could only
communicate with LAN-A.
Check this box to make the wireless clients (stations) with the
same SSID not accessing for each other.
Type the value for such SSID. Packets transferred from such
SSID to LAN will be tagged with the number.
If your network uses VLANs, you can assign the SSID to a
VLAN on your network. Client devices that associate using the
SSID are grouped into this VLAN. The VLAN ID range is from
3 to 4095. The VLAN ID is 0 by default, it means disabling the
VLAN function for the SSID.
Means the channel of frequency of the wireless LAN. The
default channel is 36. You may switch channel if the selected
channel is under serious interference.
With 802.11n, there is one option to double the bandwidth per
channel. The available extension channel options will be varied
according to the Channel selected above.
20 MHZ- the AP will use 20Mhz for data transmission and
receiving between the AP and the stations.
Auto 20/40 MHZ– the AP will use 20Mhz or 40Mhz for data
