Summary of Contents for Chiayo IrDA-9000

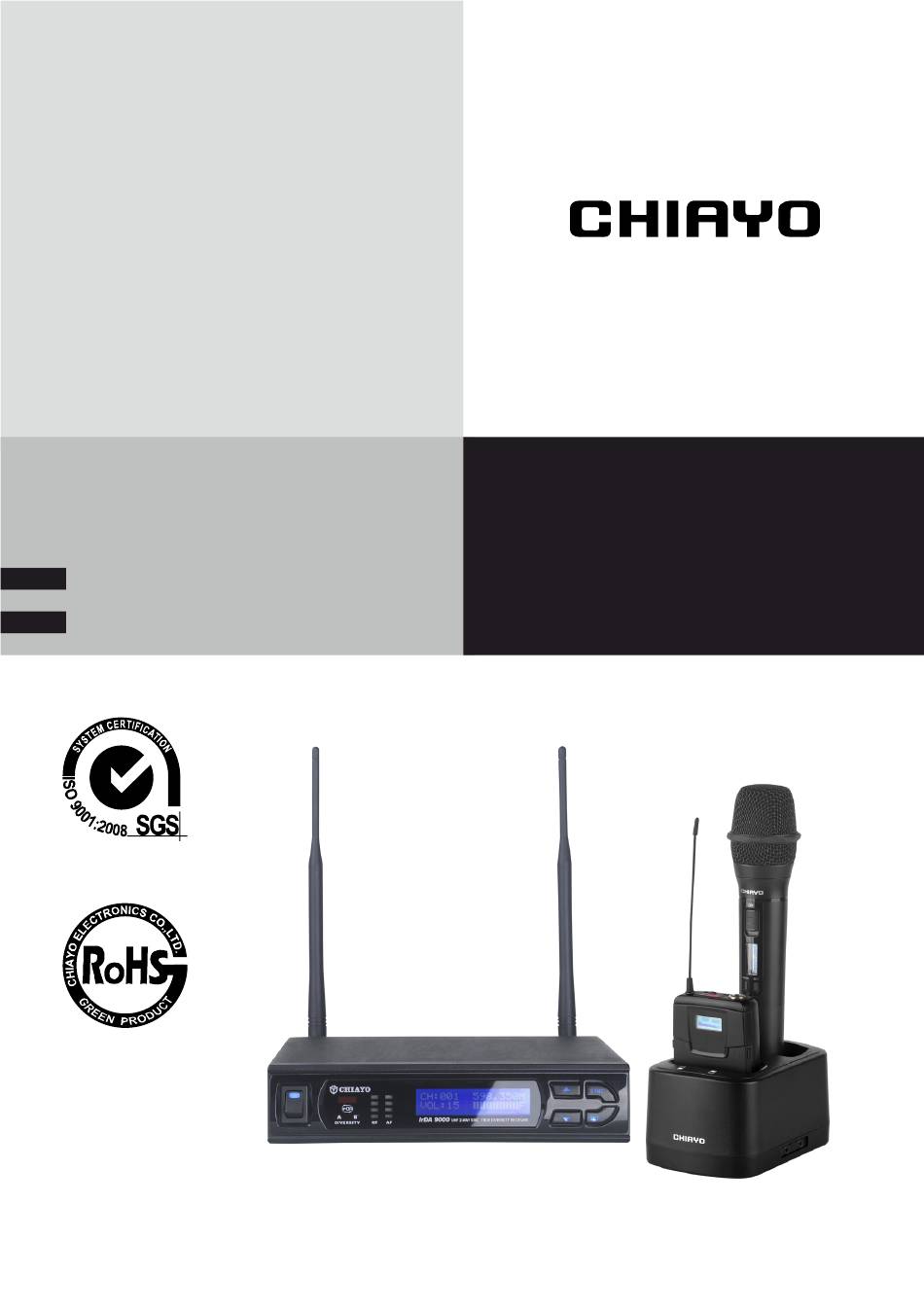

- Page 1 IrDA-9000 Operation manual Single-Channel 2-Way Sync True Diversity Wireless Microphone CHIAYO ELECTRONICS CO., LTD.
- Page 2 IrDA-9000 Single-Channel 2-Way Sync True Diversity Wireless Microphone Thank you for choosing this wireless microphone system! For more details, please take a few moments to read this operating manual to have a thorough understanding of the function and operation of both transmitter and receiver.
- Page 3 Instructions Parts and functions of receiver IrDA-9000 Front panel 1. Power switch 2. IR sensor area 3. Diversity indicator 4. Radio frequency indicator 5. Audio frequency indicator 6. LCD display 7. UP button 8. DOWN button 9. IrDA synchronization button 10.
-
Page 4: Channel Scanning
IrDA-9000 Single-Channel 2-Way Sync True Diversity Wireless Microphone Changing CHANNEL / FREQUENCY SDR-6200 IrDA F 2-WAY SYNC. TRUE DIVERSITY RECEIVER UHF 2-WAY SYNC. TRUE DIVERSITY RECEIVER D IV E R S IT Y A U D IO POWER 1. Press-release SET button until the CHANNEL-FREQUENCY page appears. -
Page 5: Adjusting Volume Level
Instructions Adjusting VOLUME level SDR-6200 IrDA UHF 2-WAY SYNC. TRUE DIVERSITY RECEIVER D IV E R S IT Y A U D IO POWER 1. The setting can be made right on the homepage. 2. Press ▲(UP) or ▼(DOWN) button to choose a new level. 3. - Page 6 IrDA-9000 Single-Channel 2-Way Sync True Diversity Wireless Microphone Audio output connection There are two audio outputs on the back of the receiver, MIC-level balanced and LINE-level unbalanced. Use shielded audio cable for the connection between the receiver and the amplifier/mixer. If the amplifier/mixer has a 1/4"(6.3mm) phone jack, connect a cable from the 1/4"(6.3mm) unbalanced audio output from the receiver to the amplifier/mixer.
- Page 7 Instructions Parts and functions of handheld microphone SQ-9000 IrDA 1. Cartridge 5. Menu button 9. Color cap 2. Battery power LED 6. Setting button 10. IrDA sensor area 3. Power switch 7. IrDA synchronizing button 11. Charging port 4. LCD 8.
-
Page 8: Channel Setting
IrDA-9000 Single-Channel 2-Way Sync True Diversity Wireless Microphone Battery installation & indicator This microphone requires 2 x AA batteries to operate. To install, remove the battery cover and slide the batteries according to the correct polarity into the battery compartment & replace the battery cover. - Page 9 Instructions Parts and functions of beltpack transmitter SM-9000 IrDA 1. Antenna 2. LCD 3. Cover release button 4. Power switch 5. IrDA synchronizing button 6. Menu button 7. Setting button 8. High-impedance gain control (GT) 9. Low-impedance gain control (MT) 10.
- Page 10 IrDA-9000 Single-Channel 2-Way Sync True Diversity Wireless Microphone GAIN setting (GT/MT) Gain control enables the user to set different output levels. GT⑧ is for the use of instrument with high impedance, such as guitar while MT⑨ is for the use of low impedance such as lapel or headset microphones.
- Page 11 (if any) of the same model and same frequency to switch on the receiver, If this transmitter of the same frequency could trigger on the receiver, then this proves that the other transmitter is faulty. Send it back to CHIAYO's authorized agent for service.
- Page 12 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611 12I1170...
