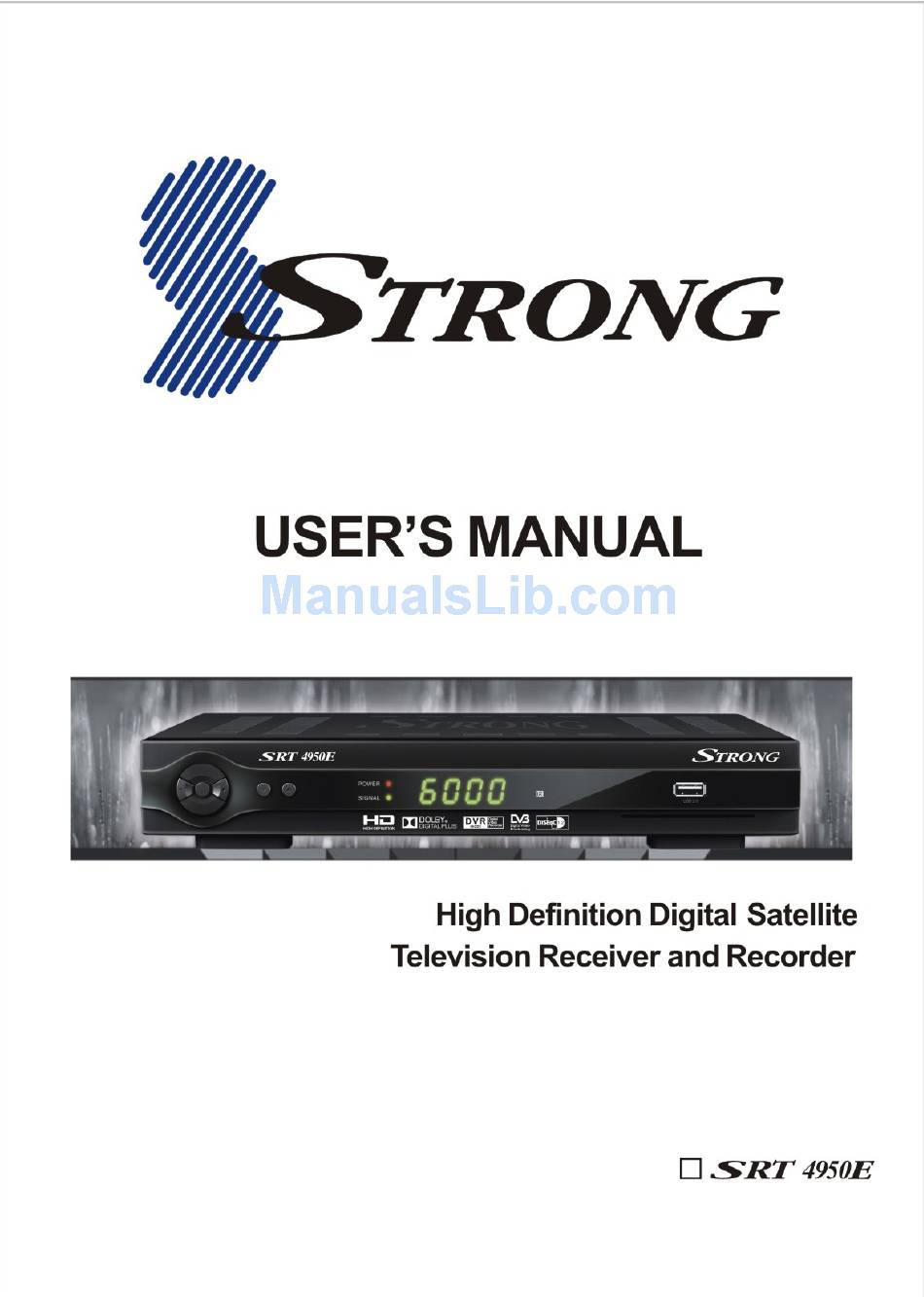

Strong SRT 4950E User Manual

High definition digital satellite television receiver and recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Strong SRT 4950E

Summary of Contents for Strong SRT 4950E

  • Page 3: Table Of Contents

    Content I. Reference ....................4 1.1 General Features ................4 1.2 Accessories ..................5 II. Product Overview ..................5 2.1 FrontPanel ..................5 2.2 Rear Panel ..................6 2.3 Remote Control Unit (RCU)............7 III. STB ......................9 IV. Installation ....................9 4.1 Dish Setting .................
  • Page 4 6.3 Sort Channels ................24 6.4 Delete Satellite Channels ............25 6.5 Multi Screen Application ............25 VII. Channels ..................... 25 IX. USB ..................... 25 9.1 USB Menu ................... 25 X. CA Menu ....................26 XI. System Information................26 XII. Additional Information ............... 26 12.1 Glossary ..................
  • Page 5 Safety Precaution This STB has been designed and manufactured to satisfy the international safety standards. Please read the following safety precautions carefully before operating this receiver.  Main Supply: Before operating, please check the units operating voltage is 90~250V AC 50/60Hz.

  • Page 6: Reference

    I. Reference 1.1 General Features DVB-S/DVB-S2 Satellite Compliant (MPEG-II/ MPEG-IV/ H.264) SCPC & MCPC receivable from Ku and C band satellites Universal, Single, Single S & C Band Wideband LNB Sensitive Tuner with Loop-Through DiSEqC1.0/1.1/1.2/1.3 (USALS) Unicable Supported Blind search supported Auto DiSEqC Search PAL/NTSC Conversion True full Color (32 bits) on screen display (OSD)

  • Page 7: Accessories

    1.2 Accessories Users manual Remote Control Unit Batteries . HDMI Cable A/V Cable II. Product Overview 2.1 FrontPanel 1. Power Switch between operation and standby modes. 2. VOL+/- Change volume while watching program or change option from up to down. 3.

  • Page 8: Rear Panel

    Signal Indicator(Green). 6. DISPLAY The LED display channel information. In standby mode it displays local time. 7.USB2.0 One USB 2.0 Host Port. 8.CA CA card’s slot. 2.2 Rear Panel 1. LNB IN Connect the Satellite Dish LNB. 2. RS232-C Connect to the computer using a serial line. 3.

  • Page 9: Remote Control Unit (Rcu)

    7.RF OUT Radio Frequency Output Interface 8.TV ANT IN TV Antenna Input Interface 9.POWER Switch Change the state of power on or off 2.3 Remote Control Unit (RCU) You can control this receiver by this remote controller with full function. 1.
  • Page 10 17. OK: Confirm the selected operation or display the channel list while watching a program. 18. EXIT: Exit current menu step by step. 19. VOL : Navigates through the Menus or change volume in viewing mode. 20.PVR List Display the PVR list. 21.

  • Page 11: Stb

    III. STB You should install the receiver when powering on your product for the first time after purchase. Note: The default password is 0000. If you have forgotten your password, please contact your local product distributor. Main menu Press the MENU button when you exit all menu, highlight the option which you want to operation,press OK button.

  • Page 12: Dish Setting

    4.1 Dish Setting Dish Setting allows you to configure the antenna setting parameters. 1. Satellite: Select the satellite which you want to setup. 2. Transponder: press OK button into TP list then press CH+/CH- button to change the TP, then press CH+/CH- button to Add/Delete/Edit TP. 3.

  • Page 13: Auto Scan

    Menu->Installation-> Manual Scan In this menu you can select the frequnecy in manual scan way. 4.3 Auto Scan Menu->Installation-> Auto Scan In this menu you can select the satellite in auto scan way. 4.4 Blind Search...

  • Page 14: Ota Menu

    Menu->Installation-> Blind Search All the frequency search that you selected satellites. 4.5 OTA Menu Menu->Installation-> OTA Menu Select the OTA in Standby from on and off. 4.6 Motorized Setting Menu->Installation-> Motorrized Setting You can select motor mode input from DiSEqC 1.2 and USALS.

  • Page 15: Usals Setup

    4.7 USALS Setup Menu->Installation-> USALS Setup If you set the Motor Mode to USALS, you need set the longitude and the latitude in USALS Setup. Setup By Country: Press the RED button, you can choose the country, press OK button, you will view the city in this country that you select. Get local Angle: Press the Green button, in this function you need connect to the network.
  • Page 16 1. Audio1: Set the preferred audio language. 2. Audio2: Set the sub-prime audio language. 3. EPG Language: Set the preferred EPG language. 4. TXT Language: Set the preferred TXT language. 5. Subtitle Language: Set the Preferred Suntitle language. 6. Exit Select Channel:You can select the exit select channel from On or OFF. 7.

  • Page 17: Osd Settings

    12. Save Find Result: 13. Desk Weather: If you select On, there will show the weather information. If you select OFF, you aren’t going to see the weather information. 5.2 OSD Settings Menu-> System Settings-> OSD Settings 1. Menu Language: Set the menu language. 2.

  • Page 18: Video Settings

    2. HDMI Mode: Set the HDMI output mode. 3. HDMI Resolution: Set the HDMI output Resolution. 4. TV System: Set the TV system mode. 5. SPDIF Mode: Set the SPDIF output mode. 6. HDMI Audio: Set the HDMI output mode. 7.

  • Page 19: Parental Control

    1. Brightness: Set the video brightness. 2. Contrast: Set the video contrast. 3. Saturation: Set the video saturation. 4. Hue: Set the video hue. 5. Default: If you want to reset video settings, please hightlight to default and press OK button. 5.5 Parental Control Menu->...

  • Page 20: Timer Adjust

    5.6 Timer Adjust Menu-> System Setting->Timer Adjust 5.6.1 Time Setup Menu-> System Settings->Timer Adjust->Time Setup You can setup the system time.

  • Page 21: Time Setup

    1. Timer Ahead On: Additional recording time before the recording starts. 2. Timer Delay off: Additional recording time after the recording ends. 3. Timer Mode: Set the system time mode. 4. Timer Zone: Set the timer zone according to your city. 5.

  • Page 22: Sleep Timer

    Press the GREEN button to setup a timer, press the RED button will delete this timer and press the YELLOW button can go to edit this timer. 1. Source: Switch TV and radio. 2. Channel: Press the VOL+/- button to display the channel list and press the OK button to select the channel.

  • Page 23: Ip Settings

    5.6.4 Prayer Timer You can visit the Prayer Times to choose a city to see it five times a day of worship. 5.7 IP Settings Menu-> System Settings->IP Settings In this menu, you can connect WIFI, cable LAN or 3G to Network. 5.8 Database Reset Menu->...

  • Page 24: Help

    Highlight the option you want and press the OK button to execute it. 1.All: All data and settings will be deleted. 2.Channels List only: All channels data will be deleted. 3. Radio Channel only: All radio channels data will be deleted. 4.

  • Page 25: Edit Channels

    6.1 Edit Channels Menu->Channels->Edit Channels Edit Channels: Enables you to delete, rename, move or lock/unlock the channels in the channel list conveniently. 1. Delete Channels: Highlight to Delete and input the password, and press OK button to select the channel. Press the CH+/- button or press the NUMERIC(0-9) buttons to the destination in the channel list and press the OK button.

  • Page 26: Set Favorites

    6.2 Set Favorites Menu->Channels->Set Favorites Input the Password to enter, and then press the Vol+/- button to add the Favorite Channel you want to setup. Like Movies/ Sports/ News/ Music/ Children’s/ Education/ Social/ Culture. Press the Red button can change the types.

  • Page 27: Delete Satellite Channels

    6.4 Delete Satellite Channels Menu->Channels->Delete Satellite Channels Highlight the satellite you want to delete,you can delete all channels of one satellite. 6.5 Multi Screen Application Menu->Channels-> Multi Screen Application Highlight the Multi Screen Application, you can see the two-dimension code for the G-Mscreen android and ISO.

  • Page 28: Xi. System Information

    the folder or play the file.Press the colourful button to do some other operations. 3. USB menu support play Movie/Music/Picture/Software and so on. 4. Press Red button to Manage the USB. USB manager can Create Folders, Delete, Rename, Format Disk, PVR Setting and Set Recording Path. X.
  • Page 29  DiSEqC DiSEqC(Digital Satellite Equipment Control)system, it is a communication bus between satellite receivers and peripheral equipment using only the existing coaxial cable.  DVB The Digital Video Broadcast group was created to establish a technical framework for the introduction of digital video broadcasting systems.  LNB (low-noise block converter) or LNBF An electronic unit mounted on the satellite dish.
  • Page 30  Transponder An automatic device that receives, amplifies and retransmits a signal on a different frequency.  Symbol rate Speed of the digital transmission  Scrambled TV programmer Some TV programmers are transmitted in scrambled form.
