Frontier ST1332 Operator's Manual

Hide thumbs Also See for ST1332:
Table of Contents

Advertisement

Quick Links

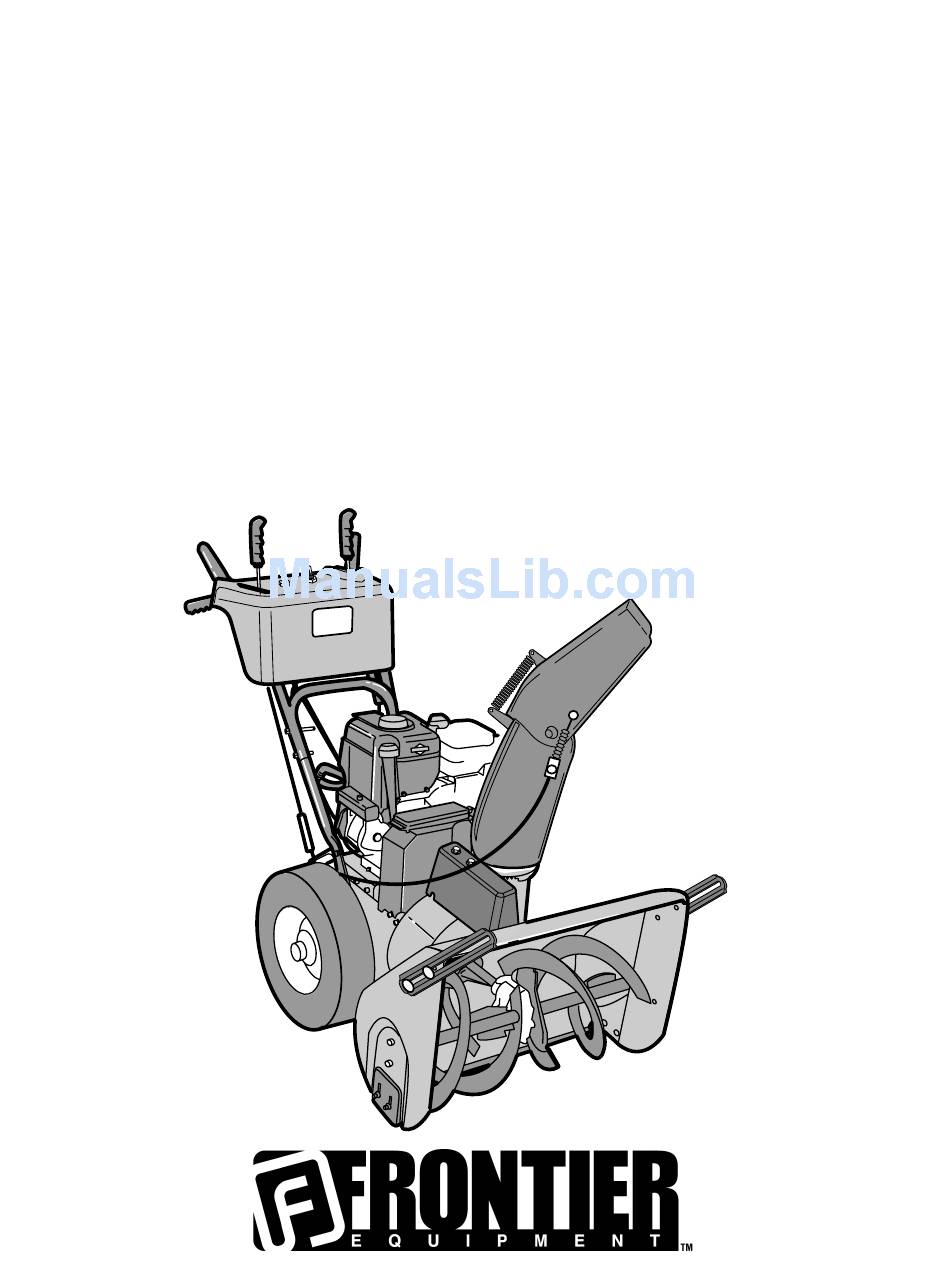

ST1332
Snow Thrower
OPERATOR'S
MANUAL
MTF−051059L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST1332 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frontier ST1332

Summary of Contents for Frontier ST1332

  • Page 1 ST1332 Snow Thrower OPERATOR’S MANUAL MTF−051059L...

  • Page 2: Responsibility Of The Owner

    INTRODUCTION Congratulations on your purchase of a Frontier Snowthrower. It has been designed, engineered and manufactured to give you the best possible dependability and performance. However, like all mechanical products, your machine will occasionally re- quire adjustment and maintenance. This handbook should be read before operating or performing and adjustments on your machine.

  • Page 3: Hazard Symbols And The Meanings

    RULES FOR SAFE OPERATION Operating Symbols and their meanings This manual contains safety information to make you aware of the hazards and risks associated with snow These symbols are used on your equipment and defined in your operating throwers, and how to avoid them. The snow thrower is designed and manual.
  • Page 4 RULES FOR SAFE OPERATION DANGER DANGER Avoid death or serious injury from rotating auger. Objects can be picked up by auger and thrown from chute. Keep hands, feet and clothing away. Never throw snow toward people or cars, and never allow anyone in front of the snow thrower.
  • Page 5 RULES FOR SAFE OPERATION WARNING WARNING Running engines produce heat. Engine parts, especially muffler, Gasoline and its vapors are extremely flammable and explosive. become extremely hot. Fire or explosion can cause severe burns or death. Severe thermal burns can occur on contact. WHEN ADDING FUEL Combustible debris, such as leaves, grass, brush, etc.
  • Page 6 RULES FOR SAFE OPERATION IMPORTANT WARNING: Always disconnect the spark plug wire and place it where it cannot make contact with spark plug to prevent accidental starting during: Preparation, Maintenance, or Storage of your snowthrower. Safe Operation Practices for Snowthrowers As Recommended By: American National Standards Institute.

  • Page 7: Maintenance And Storage

    RULES FOR SAFE OPERATION Maintenance And Storage 7. Stop the engine (motor) whenever you leave the operat- ing position, before unclogging the auger/impeller hous- 1. Check shear bolts and other bolts at frequent intervals ing or discharge chute and when making any repairs, for proper tightness to be sure the equipment is in safe adjustments, or inspections.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS HAZARD SYMBOLS AND THE MEANINGS ..... . . OPERATING SYMBOLS AND THEIR MEANINGS ....SAFETY DECALS .

  • Page 9: Safety Decals

    SAFETY DECALS the meaning, then thoroughly read all safety and operation WARNING: If safety decals are dam- instructions in this Owner’s Manual or contact your local aged or missing, replace immediately. dealer. If any safety decals become worn or damaged and cannot Look for this symbol to indicate important safe- be read, order replacement decals from your local dealer.

  • Page 10: Warranty

    THREE YEAR LIMITED WARRANTY Murray warrants to the original purchaser of this Frontier Branded Snowthrower that this unit shall be free from defects in material and workmanship under normal use and service for a period of Three (3) Year from the date of purchase; however,...

  • Page 11: Assembly

    ASSEMBLY TOOLS REQUIRED FOR ASSEMBLY CONTENTS OF SHIPPING CARTON 1 − Knife 1− Snowthrower 2 − 1/2” wrenches (or adjustable wrenches) 1− Container of Fuel Stabilizer (Located in Parts Bag) 2 − 9/16” wrenches (or adjustable wrenches) 1− Parts Bag 2 −...

  • Page 12: Unpacking

    ASSEMBLY Figure 2 shows the snowthrower in the shipping position. Figure 3 shows the snowthrower completely assembled. Reference to right and left hand side of the snowthrower is from the operator’s position at the handle. UNPACKING Figure 2 1. Locate the two tear tabs at the bottom of the carton. Remote Chute Control Speed Shifter Lever Auger Drive...

  • Page 13: Upper Handle Assembly

    ASSEMBLY UPPER HANDLE ASSEMBLY Upper Handle Lower Handle 1. Cut tie holding shift rod to lower handle and move shifter to the neutral position. 2. The fasteners that secure the upper handle to the lower Lockwasher handle are mounted in the handles. Loosen, but do not Bolt remove these fasteners (see See Figure 5).

  • Page 14: Remote Chute Control Knob

    ASSEMBLY REMOTE CHUTE CONTROL KNOB 1. Assemble the remote chute knob onto the lever until snug against the nut (see Figure 8). 2. Make sure lip on the remote chute knob is pointed to- Remote Chute ward the engine. Control Knob 3.

  • Page 15: Snow Chute Assembly

    ASSEMBLY SNOW CHUTE ASSEMBLY 1. Remove back carriage bolt (See Figure 11). Chute Deflector 2. Tilt chute back into operating position. Operating Position 3. Replace carriage bolt from inside of chute. 4. Replace flatwasher and nylon locknut on outside of flange.

  • Page 16: Operation

    OPERATION Get to know your snowthrower and its controls. Be sure you (or any other operator) have read and understood the Operation Precautions listed on page 2 of this manual. Gas Fill Choke Control Electric Chute Speed Shift Lever Switch Remote Chute Control Auger Drive Primer Button...

  • Page 17: Snowthrower Operation

    OPERATION The operation of any snowthrower can result in foreign objects being thrown into the eyes,which can result in severe eye damage. Always wear safety glasses or eye shields before beginning snowthrower Operation. We recommend standard safety glasses or Wide Vision Safety Mask for over spectacles. SNOWTHROWER OPERATION IMPORTANT: Be sure front of unit is clear of bystanders or obstacles before operating.

  • Page 18: How To Use The Wheel Lockout

    OPERATION HOW TO USE THE WHEEL LOCKOUT Each wheel is secured to the axle with a lockout pin. See Figure 14. The unit was shipped with the lockout pin in the locked position. For ease of maneuverability, disconnect the lockout pin as follows. 1.

  • Page 19: Before Starting Engine

    OPERATION BEFORE STARTING ENGINE use leaded gasoline. We recommend that fuel stabilizer be added to the fuel each time that gasoline is added to Check the oil the fuel tank. NOTE: The engine was shipped from the factory filled NOTE: Winter grade gasoline has higher volatility to with oil.

  • Page 20: To Stop Engine

    OPERATION TO STOP ENGINE WARNING: The electric starter is equipped with a three−wire power cord and plug designed to CAUTION: To stop the engine, do not move the choke operate on 120 volt AC house hold current. The control to CHOKE position. Backfire or engine damage power cord must be properly grounded at all times to can occur.
  • Page 21 Then, disconnect the power cord from the switch box. If after following the preceding instructions, your engine fails to start, have the engine checked by a John Deere/Frontier dealer. NOTE: Do not lose the safety/ignition key. Keep the safety/ignition key is a safe place. The engine will not start without the safety/ignition key.

  • Page 22: How To Cleara Clogged Discharge Chute

    OPERATION FROZEN STARTER WARNING: Never run engine indoors or in en- closed, poorly ventilated areas. Engine exhaust If the starter is frozen and will not turn engine: contains CARBON MONOXIDE, AN ODORLESS AND DEADLY GAS. Keep hands, feet, hair and loose 1.

  • Page 23: Operating Tips

    OPERATION OPERATING TIPS 1. For optimum snow blower efficiency, adjust ground 6. On gravel or crushed rock surfaces, the skids should be speed, not the throttle. REMEMBER − if the wheels slip, set at 1−1/4 inch (32 mm) below the scraper bar (see To forward speed will be reduced.

  • Page 24: Service Recommendations

    SERVICE RECOMMENDATIONS SERVICE RECOMMENDATIONS FIRST BEFORE EVERY EVERY EVERY BEGINNING EACH EACH BEFORE PROCEDURE HOUR OFTEN HOURS HOURS HOURS SEASON STORAGE √ Tighten all screws and nuts √ √ √ √ Auger Drive Belt * √ √ √ √ Adjust Traction Drive Belt √...

  • Page 25: Maintenance

    MAINTENANCE Some adjustments will need to be made periodically to properly maintain your snowthrower. All adjustments in the MAINTENANCE section of this manual should be checked at least once each season. SNOWTHROWER The following adjustment should be performed more than once each season.
  • Page 26 MAINTENANCE ENGINE Check Crankcase Oil Level before starting engine and after Oil Fill Cap/Dipstick each 5 hours of continuous use (see Figure 27). Add proper motor oil as required. FULL NOTE: Overfilling the engine can affect performance. Tighten the oil fill cap securely to prevent leakage. Change Oil every 25 hours of operation or at least once a year, even if the snowthrower is not used for twenty−five hours.

  • Page 27: Auger Housing Height Adjustment

    MAINTENANCE WARNING: Always turn unit off, remove igni- To adjust skids, proceed as follows: tion key and disconnect the spark plug wire be- 1. Place a block (equal to height from ground desired) un- fore making any repairs or adjustments. der scraper bar near but not under skid.

  • Page 28: How To Remove The Snow Hood

    MAINTENANCE HOW TO REMOVE THE SNOW HOOD To access the spark plug, the snow hood must be removed as follows: 1. Remove the choke control knob (see Figure 30). 2. Remove the ON/OFF key. 3. Remove the four mounting screws. 4.

  • Page 29: Traction Drive Belt

    MAINTENANCE BELT ADJUSTMENT Traction Drive Belt After approximately ten hours of operation, a new belt will stretch and require an adjustment of the belt tension. Also, if your snow thrower experiences a loss of power under heavy load, check the condition of the traction drive belt. If it is damaged or loose, replace it (see “How To Replace The Belts”...

  • Page 30: Auger Drive Belt

    MAINTENANCE BELT ADJUSTMENT Auger Drive Belt If your snowthrower will not discharge snow, check the control cable adjustment. If it is correct, then check the condition of the auger drive belt. If it is damaged or loose, replace it (see Belt Replacement in this section of the manual).

  • Page 31: How To Remove The Auger Drive Belt

    MAINTENANCE HOW TO REPLACE THE BELTS 15. Adjust the auger belt guide. See “How To Adjust The Belt Guide” in the Maintenance section. 16. Install the belt cover. Tighten screw (See Figure 36). The drive belts are of special construction and must be replaced with original factory replacement belts available 17.

  • Page 32: How To Remove The Traction Drive Belt

    13. Check the adjustment of the cables. See “How To Check traction drive belt. Replace the traction drive belt with And Adjust The Cables” in the Maintenance section. an original equipment replacement belt available from a John Deere/Frontier dealer. 14. Connect the spark plug wire. MTF−051059L...

  • Page 33: Auger Belt Guide Adjustment

    MAINTENANCE AUGER BELT GUIDE ADJUSTMENT 1. Remove spark plug wire. Belt Guide 2. Have someone engage auger drive. 1/8 Inch (3.17 mm) 3. Measure the distance between the belt guide and belt. Auger Idler The distance should be 1/8 inch (3.175 mm) for guide. Pulley Engaged See Figure 41.

  • Page 34: How To Check And Adjust The Cables

    MAINTENANCE HOW TO CHECK AND ADJUST THE CABLES The cables are adjusted at the factory and no adjustment should be necessary. If the cables have become stretched ”Z” Fitting or are sagging adjustment will be necessary. Whenever belts are adjusted or replaced, the cables will need to be adjusted.

  • Page 35: Auger Shear Bolt Replacement

    MAINTENANCE AUGER SHEAR BOLT REPLACEMENT The augers are secured to the auger shaft with special bolts that are designed to break if an object becomes lodged in the auger housing. Use of a harder bolt will reduce the protection provided by the shear bolt. To replace a broken shear bolt, Shear Pin proceed as follows: WARNING: To insure safety and performance...

  • Page 36: Storage

    STORAGE OFF SEASON STORAGE 5. Lubricate all lubrication points (see “Lubrication“ in the Maintenance section). WARNING: Never store the engine, with fuel in the tank, indoors or in a poor ventilated enclo- 6. Insure that all nuts, bolts, and screws are securely fas- sure where fuel fumes could reach an open tened.

  • Page 37: Trouble Shooting Chart

    If you have any questions concerning parts, service, or technical data, contact your nearest John Deere/Frontier dealer. For complete warranty information refer to the warranty in the Owner’s Information section of this manual.
  • Page 38 NOTES MTF−051059L...
  • Page 39 NOTES MTF−051059L...

  • Page 40: Replacement Parts

    PART NUMBERS MAY CHANGE. When you order replacement parts, use the part numbers listed below and on the fol- lowing pages. If a part number changes, your John Deere/Frontier dealer will have the latest part number. WHEN YOU ORDER PARTS, your John Deere/Frontier dealer must have your snowthrower model and serial number and your engine model number.

  • Page 41: Parts Schematics

    FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D ENGINE 25−2 Á Á 25−1 Á Á Á Á 25−5 25−3 25−4 Ref. Drive Page 25−2 25−2 Ref. Auger Housing Page Key No. Part No. Description Key No. Part No. Description MT6219 CORD, STARTER MT71060 WASHER, SPTLK .31X.58X.08...
  • Page 42 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D FRAME Ref. Auger Housing Page MTF−051059L...
  • Page 43 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D FRAME Key No. Part No. Description MT1501369 YZ IDLER ASSEMBLY, AUGER MT711682 PIN, HAIR .38DIAX1.64LG MT761761 PIN, CLEVIS 3/16” DIA MT165x159 SPRING, TENSION MT761675 YZ ASSY., SPRING ATTACH MT585781 BOLT, 3/8−16X1.25 CARR. MT711617 WASHER, FLAT...

  • Page 44: Auger Housing

    FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D AUGER HOUSING Ref. Gear Case Page MTF−051059L...
  • Page 45 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D AUGER HOUSING Key No. Part No. Description MT583146 PULLEY, 4L 8.40 OD MT2001022 KEY, SQUARE 3/16 X 3/4 MT15x112 NUT, 1/2−20 MT1501158 SPACER, FRICTION PULLEY MT582957 YZ RETAINER, BALL BRNG MT1501389 BEARING, BALL MT001X92 BOLT, HEX 5/16−18X .50...

  • Page 46: Discharge Chute

    FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D DISCHARGE CHUTE Pop Rivets Ref. Auger Housing Page MTF−051059L...
  • Page 47 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D DISCHARGE CHUTE Key No. Part No. Description MT761168E701 CHUTE, UPPER W/REMOTE MT578088 SCREW, 5/16−18 X.75 MT12021 PLASTIC WASHER MT71038 MT578088 SCREW, 5/16−18 X.75 MT6711 PLASTIC WASHER MT71038 MT761169E701 CHUTE, LOWER W/REMOTE MT2x100 BOLT MT71071...
  • Page 48 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D CHUTE ROTATION MOTOR Key No. Part No. Description MT1501347 COVER, MOTOR MT26x263 SCREW MT17x185 WASHER MT1501396 BRACE, CHUTE GEAR MT15x143 MT1501067 GEAR MT032x75 PIN, SPRING MT1501430 RING, RETAINER MT1501341 ADAPTER MT018x30 WASHER MT26x310 SCREW...
  • Page 49 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D REMOTE CONTROL Ref. Control Panel Ref. Engine Mount Bolt Ref. Upper Chute Ref. Lower Chute Key No. Part No. Description Key No. Part No. Description MT318468 TENSION SPRING MT1001221 TRIM STRIP, BLACK MT310088 BOLT, SHOULDER...
  • Page 50 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D HANDLE Ref. Drive Page Ref. Engine Page MTF−051059L...
  • Page 51 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D HANDLE Key No. Part No. Description MT1501381E701 ASSY., HANDLE MT01x129 BOLT MT7288 SCREW MT71072 WASHER MT71062 WASHER MT71044 MT7289 STOP, PLASTIC MT4049 BUMPER MT1501363 CABLE, DRIVE MT1501451 CABLE, AUGER MT1673 SPRING, AUGER CLUTCH MT15x116 NUT, HEX −...
  • Page 52 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D WIRING Ref. Control Panel Page Ref. Handle Page MTF−051059L...
  • Page 53 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D WIRING Key No. Part No. Description MT1501352 GRIP, HEATED MT1501351 WIRE HARNESS, UPPER MT1501348 SWITCH, CHUTE ROTATION MT1501349 SWITCH, HEATED GRIP MT1501350 WIRE HARNESS, LOWER MT071372 TIE, CABLE − − − − − FUSE, 7.5 AMP AUTOMOTIVE...
  • Page 54 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D CONTROL PANEL Ref.Key# 741 Ref.Key# 790 Ref. Key# 791 Ref. Upper Handle Key No. Part No. Description MT1501358E701 CLUTCH HANDLE LH MT1501357E701 CLUTCH HANDLE RH MT337380 GRIP, CLUTCH LEVER MT1501989 PANEL, CONTROL W/LIGHT MT316042...
  • Page 55 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D HYDRO DRIVE Ref. Engine Page 25−6 Key No. Part No. Description MT1501311E701 COVER, BOTTOM MT310169 SCREW, 1/4−20 X 0.62 25−6 MT1501334E511 FRAME, EXTENSION − HYDRO MT1501496 PLUG, HEYCO MT1501353 * TRANSMISSION, HYDRO (314−0410) *...
  • Page 56 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D GEAR CASE Key No. Part No. Description Key No. Part No. Description MT896 CASE, GEAR, RH MT50684 BEARING, ROLLER MT895 CASE, GEAR, LH MT48275 WASHER, FLAT MT910828 SCREW, 5/16−24 x 1.00 MT50795 MT71100 NUT, 5/’16−24...
  • Page 57 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D WHEELS Ref. Frame Page Ref. Drive Page Key No. Part No. Description Key No. Part No. Description MT3943 SPACER MT239 RING, RET MT01x193 SCREW, 1/4−20X1.75 MT1501825 TIRE & RIM, LEFT MT15x145 NUT, 1/4−20 MT1501032E701...

  • Page 58: Drift Cutter Assembly

    FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D DRIFT CUTTER ASSEMBLY Key No. Part No. Description MT762348E701 DRIFT CUTTER MT340720 BOLT MT12021 WASHER MT711604 WINGNUT MT11261 STOP, PLASTIC MTF−051059L...
  • Page 59 FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D DECALS Key No. Part No. Description MT48x5294 DECAL, SINGLE HAND CONTROL MT7390 DECAL, V−BELTS MT48x5967 DECAL, ROTATING AUGER MT48x5578 DECAL, THROWN OBJECT MT48x5965 DECAL, UNCLOGGING CHUTE MT48x5300 DECAL, SPEED CONTROL MT48x5297 DECAL, REMOTE CHUTE CONTROL...

  • Page 60: Specifications

    SPECIFICATIONS ST1332 Engine Briggs & Stratton Intek Snow OHV Horsepower 13 hp Starter Electric / Recoil Fuel Capacity 4 quarts Drive System Hydrostatic Speeds Variable Fwd/Rev 16” Tire Diameter Traction Control Wheel Lock Clearing Width 32” Housing Height 23.5” Auger Diameter 16”...
