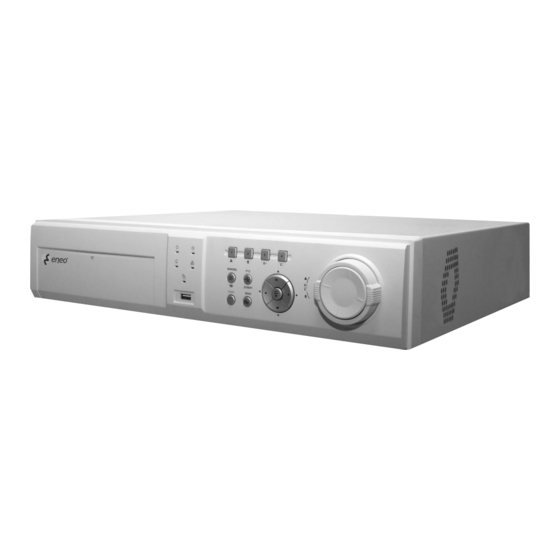

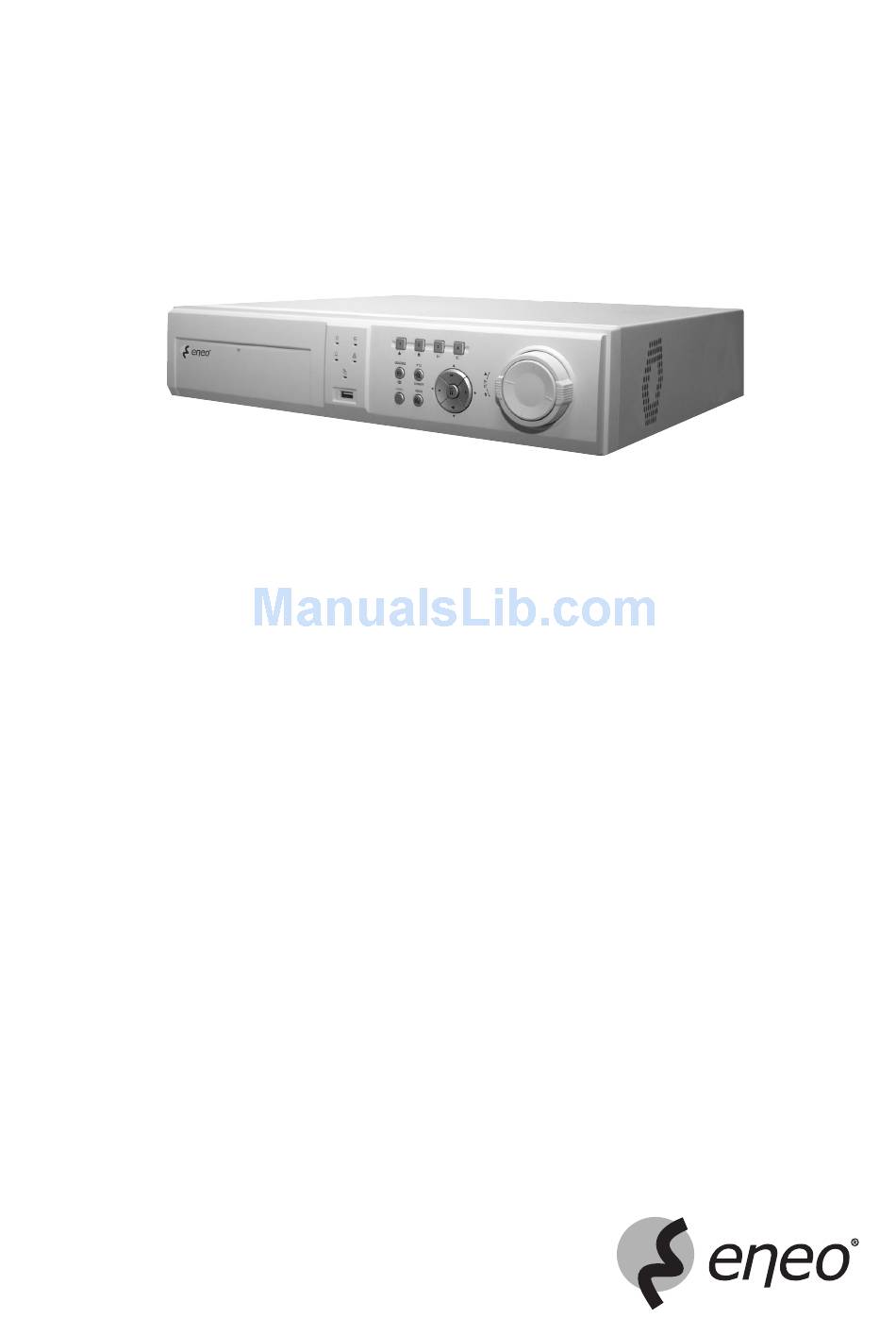

- Page 1 Operating Instructions Digital Video Recorder Model No.: DLR2-04N/80, DLR2-04N/160...
- Page 2 Safety instructions / maintenance • Before connecting and switching on the unit, please read the safety instructions and operating instructions. • Keep the operating instructions in a safe place for later use. • Never cover the ventilation slits. • The unit should only be used in closed areas and is to be protected against penetration of water and moisture. •...
-
Page 3: Table Of Contents
Table of Contents Introduction............................................4 1.1 Features..........................................4 1.2 Technical Overview ......................................... 4 Installation ............................................5 2.1 Package Contents ........................................5 2.2 Required Installation Tools....................................... 5 2.3 External Connections....................................... 5 Configuration..........................................10 3.1 Front Panel Controls......................................10 3.2 Turning on the Power ......................................12 3.3 Initial Unit Setup........................................ -
Page 4: Introduction
1. Introduction 1.1 Features Your color digital video recorder (DVR) provides recording capabilities for 4 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: • 4 Composite Input Connectors • Auto detectable for NTSC or PAL •... -
Page 5: Installation
2. Installation 2.1 Package Contents The package contains the following: • Digital Video Recorder • Power Cord • User’s Manual (This Document) • RAS Software Diskettes and User’s Manual • Rack-mount Kit • Assembly Screws for Adding Hard Disk Drives 2.2 Required Installation Tools No special tools are required to install the DVR. - Page 6 Connecting Audio NOTE: It is the user’s responsibility to determine if local laws and regulations permit recording audio. AUDIO IN 1 AUDIO IN 2 AUDIO IN 3 AUDIO IN 4 AUDIO OUT Audio In and Out connectors Your DVR can record audio. Connect the audio source to Audio In. Connect Audio Out to your amplifier. NOTE: The audio input is from an amplified source.
- Page 7 Connecting the RGB Monitor VGA connector A VGA port is provided for RGB monitor output. Connect the RGB monitor to the VGA connector if required. Connect a RGB cable with a DB-15 (male) connector, which is usually less than 10 feet, to the DVR connector. NOTE: For RGB monitor output, set the CVBS(SVHS)/VGA selector switch to the VGA.
- Page 8 To reset the unit, you will need a straightened paperclip: 1. Turn the DVR off. 2. Turn it on again. 3. While the DVR is initializing, poke the straightened paperclip in the unlabeled hole to the right of the RS-232C connector. 4.
- Page 9 Connecting to the RS-485 Port RX+ RX- TX+ TX- RS-485 Connector The DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex serial communications signals. The RS-485 connector can also be used to control PTZ (pan, tilt, zoom) cameras. Connect RX-/TX- and RX+/ TX+ of the control system to the TX-/RX- and TX+/RX+ (respectively) of the DVR.
-
Page 10: Configuration
3. Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 - Installation. 3.1 Front Panel Controls DVR front panel Many of the buttons on the front panel have multiple functions. The following describes each button and control. Take a few minutes to review the descriptions. - Page 11 PTZ Button Pressing the PTZ button opens a Pan/Tilt/Zoom screen which allows you to control properly configured cameras. In the PTZ mode, pressing the PTZ button enters the digital zoom mode, and pressing the button again in the digital zoom mode returns to the live monitoring mode.
-
Page 12: Turning On The Power
3.2 Turning on the Power Connecting the power cord to the DVR turns on the unit. The unit will take approximately 60 seconds to initialize. 3.3 Initial Unit Setup Before using your DVR for the first time, you will want to establish the initial settings. This includes items such as time and date, display language, camera, audio, remote control, record mode, network and password. -
Page 13: Normal Setup Screen
Selecting Password enters a screen where you will be able to change passwords. Selecting Date/Time enters a screen where you will be able to set the DVR’s time and date. Selecting System Shutdown shuts the DVR down. When shutting down the DVR, you need to confirm that you want to shut down the unit, you will be asked for an administrator password. - Page 14 button. The System Information Change screen appears. Highlight Change and press the System Information Change screen Highlight the box beside Site Description and press the button. A virtual keyboard displays. Virtual keyboard Use the arrow keys to highlight the first character you want in the Site Title and press the button.
- Page 15 System Upgrade screen Select Start, and enter the Admin password to start the upgrade. The system restarts automatically after completing the upgrade. The software will start running after restarting the unit. NOTE: Only the system administrator can upgrade the software. NOTE: You cannot upgrade the software during clip copy.
- Page 16 Highlight the Holiday Setup box and press the button. You can set up holidays by highlighting Add: and pressing the button. The current date appears. Highlight the month and day and change them by using the arrow buttons. Press the button to add the date.
- Page 17 NOTE: When the time difference between the DVR and the time server is more than one minute, the DVR might not synchronize the time to prevent any unexpected loss of recorded video data. If you want to synchronize the time manually, select Now..Highlight the Run as Server box and press the button.
- Page 18 Highlight the Alarm Out / Notify tab and the System Check - Alarm Out / Notify screen displays. System Check (Alarm Out / Notify) screen Highlight the box under the Alarm Out heading and press the button. A drop menu displays available alarm outputs for the recording problem. Highlight the desired alarm output from the external alarm out terminal or internal buzzer, and press the button.
- Page 19 button. The S.M.A.R.T. Setup screen appears. Highlight the S.M.A.R.T. Setup and press the NOTE: If no hard disk drives are installed in the DVR, the S.M.A.R.T. Setup... button will be disabled. S.M.A.R.T. Setup screen Your DVR shows the conditions of Hard Disk Drives when the installed IDE hard disk drives support S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) Monitoring program.
-
Page 20: Configuring Input Devices
System Shutdown Highlight System Shutdown in the Main menu and press the button. This shuts the DVR down. When shutting down the DVR, you need to confirm that you want to shut down the unit, and you will be asked for an administrator password. 3.6 Configuring Input Devices You can configure the video, audio and remote control devices connected to the DVR. - Page 21 PTZ Device list You can assign IDs to each camera by highlighting the ID heading and pressing the button. Change the number by highlighting it and using the arrow buttons to increase and decrease the number. The PTZ ID number can be set from 0 to 256. Alarm In Setup Screen button.
- Page 22 Motion Detector Motion Detector setup screen Your DVR has built-in video motion detector. Video motion detector can be turned On or Off for each camera. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to motion. There are five settings with 1 being the least sensitive and 5 being the most sensitive.
- Page 23 Text-In Setup Screen Highlight Text-In in the Main menu and press the button. The Text-In setup screen appears. Text-In Setup screen NOTE: If networking is configured by the external modem, the text-in cannot be set up. Set the DVR for LAN connections and set up text-in for RS-232C port.
- Page 24 Highlight the box beside Transaction End, and press the button. Use the virtual keyboard to enter the Transaction End string. Refer to the device manufacturer’s documentation for the text string that the device sends when a transaction ends. Highlight the more line(s) box and press the button.
- Page 25 Alarm Out Setup Screen The Alarm Out setup screen allows you to establish a schedule for each alarm output from the DVR. Alarm Out setup screen Each alarm output can be given its own title by highlighting the box under the Title heading and pressing the button.
- Page 26 Audio Setup Screen Highlight Audio in the Main menu and press the button. The Audio Setup screen appears. Audio Setup screen Highlight the box beside Audio Recording and press the button. This toggles between On and Off. When it is On, the DVR also records audio when it is recording video.
-
Page 27: Configuring Recording Settings
3.7 Configuring Recording Settings NOTE: When the DVR is recording video, the REC LED on the front panel is lit and a red dot appears on the monitor. Your DVR offers a variety of flexible recording modes. You can set it up to record all the time or to only record events. It can be set up to continue recording once the hard disk drive is full by recording over the oldest video, or you can set it up to alert you when the hard disk is full and stop recording. - Page 28 Time-Lapse Record Mode Setup Screen Time-Lapse Record Setup screen Highlight the box under the Speed heading and press the button. A drop-down list of record speeds appears. You can select from 0.5ips to 30ips (25ips for PAL). NOTE: You cannot select 30ips (25ips for PAL) for High Resolution. Highlight the box under the Quality heading and press the button.
- Page 29 There are several ways to set recording times: • You can highlight an individual block and toggle it On or Off by pressing the button. • You can change a 30-minute segment for all days by placing the cursor on the time line and pressing the button to toggle the segment On or Off. •...
- Page 30 Alarm In Event Action (Record) Setup Screen The DVR can be set to react to events differently. Each sensor can be assigned a schedule, camera, recording speed, video quality and dwell time. Alarm In Event Action (Record) setup screen Highlight the Sched box and press the button.
- Page 31 Alarm In Event Action (Notify) Setup Screen The DVR can be set to notify the remote site when certain events are activated. Alarm In Event Action (Notify) setup screen Highlight the Sched box and press the button. A schedule screen appears. Set the schedule as described earlier. Highlight the Notify box and press the button.
- Page 32 Motion Detector Event Action (Alarm Out) Setup Screen The DVR can be set to react to motion events differently by activating an internal buzzer or external alarms. Motion Detector Event Action (Alarm Out) setup screen Highlight the Sched box and press the button.
- Page 33 Text-In Event Action (Record) Setup Screen The DVR can be set to react to text input from the Text-in device. The text-in can be assigned a schedule, associated camera, recording speed, video quality and dwell time. Text-In Event Action (Record) setup screen Highlight the Sched box and press the button.
- Page 34 Text-In Event Action (Notify) Setup Screen The DVR can be set to notify the remote site in the case of text-in. Text-In Event Action (Notify) setup screen Highlight the Sched box and press the button. A schedule screen appears. Set the schedule as described earlier. Highlight the Notify box and press the button.
- Page 35 Video Loss Event Action (Alarm Out) Setup Screen The DVR can be set to react to video loss differently by activating an internal buzzer or external alarms. Video Loss Event Action (Alarm Out) setup screen Highlight the Sched box and press the button.
-
Page 36: Display Setup
3.8 Display Setup Highlight the OSD, Main Monitoring in the Main menu, and press the button to set up the on-screen display or camera display on the main monitor. OSD (On-Screen Display) Setup The DVR can be set up to display Date, Time, Title and Status on screen. Each feature can be turned on or off, and you can adjust the margins. OSD Setup screen Highlight the box beside Date and press the button to toggle the date display On and Off. - Page 37 Highlight the box beside Sequence Dwell Time and press the button. You can adjust the sequence dwell time from 3 to 60 seconds. NOTE: The DVR does not sequence the camera having video loss. Highlight the box beside Event Monitoring and press the button to toggle between On and Off.
- Page 38 LAN Setup Screen LAN Setup screen Highlight the box beside Type and press the button to select from Manual, DHCP and ADSL (PPPoE). Selecting Manual from the Type allows you to set up LAN parameters manually. NOTE: You will need to get the appropriate IP Address, Gateway and Subnet Mask from your network administrator. Change the numbers by highlighting them and use the arrow buttons or Jog Dial to increase or decrease the number.
- Page 39 NOTE: Do NOT use the same port number for two different programs, otherwise, the DVR cannot be connected with a PC running RAS. CAUTION: When changing the port settings, you must change the port settings on the PC running RAS as well. Refer to the RAS manual for details. You can save your changes and return to the Network Setup screen by highlighting OK and pressing the button.
- Page 40 Modem Setup Modem Setup screen The Use field displays the available modem type, External Modem. Highlight the box beside Baud Rate and press the button. A list of baud rates ranging from 300 to 115,200 appears. Highlight the box beside Data Bit and press the button.
- Page 41 Highlight the Use NAT box and press the button to toggle On and Off. NOTE: When using the NAT (Network Address Translation) device, refer to the NAT manufacturer’ instructions for the proper network settings. Highlight the box beside DVR Name and press the button to name the DVR to be registered on the DVRNS server.
-
Page 42: Password Setup Screen
Callback Center Setup by Modem connections Callback Center (Modem) Setup screen Highlight the box beside Pager Number and enter the telephone number of the pager. Enter the number as it must be dialed from your telephone system; e.g., if you must dial „9” for an outside line, enter „9” before the pager number. Highlight the box beside Mailbox and enter the voice mailbox number if your pager uses a voice mailbox. -
Page 43: Config Screen
NOTE: The Admin and User passwords are composed of up to eight digits using the camera buttons. The default Admin password is 4321. CAUTION: Write down the new password and save it in a secure place. If the password is forgotten, the unit must be reset using the Factory Reset Button and all data settings will be lost. - Page 44 Highlight the File Name box and press the button. A virtual keyboard appears. Enter a file name for the video you are backing up and select Close. The DVR will automatically add the camera number (for example „01”) and „.exe” to the file name. If you want to save the file in a specific folder, enter the folder name followed by a „/”.
-
Page 45: Operation
Load / Save Setup You can load saved DVR settings or save the current DVR settings. To load saved DVR settings, connect the USB device containing the setup file (.cfg) to the DVR. Highlight Load - File Name and press the button. -
Page 46: Live Monitoring
4.2 Live Monitoring As soon as the DVR completes its initialization process, it will begin showing live video on the attached monitor and playing live audio through the attached speaker. The default mode is to display 4 cameras at once. Pressing any camera button will cause that camera to display full screen. It displays live video and plays live audio until the user enters another mode. -
Page 47: Recording Video
Set Preset Once you have the camera at the desired settings, you can save camera position settings as „presets” so that you can go directly to desired views. Select Set Preset in the PTZ Menu. Select the number you want to assign to the preset and press the button. -
Page 48: Recording Audio
4.4 Recording Audio If the DVR was set up to record audio, it will record audio when video is recording. NOTE: Make certain you comply with all local and federal laws and regulations when recording audio. 4.5 Playing Recorded Video Once video has been recorded, you can view it using the arrow buttons. - Page 49 Shuttle Ring The Shuttle Ring functions in the Playback mode. The Shuttle Ring is spring loaded and returns to the center position when released. Turning the ring clock- wise plays video forward. Turning the ring counterclockwise plays video backward. Playback speed varies with the amount the ring is turned. The playback speeds are x0.5, x0.5,...
-
Page 50: Searching Video
4.6 Searching Video Pressing the MENU button in the playback mode displays the Search Menu. Search Menu • Go to the First - Displays the first recorded image • Go to the Last - Displays the last recorded image • Date/Time Search - Searches by date and time (see below for more details) •... - Page 51 Calendar Search Calendar Search screen Days with recorded video display on the calendar with white numbers. Highlight a day using arrow buttons and press the button to select it. A time bar will display at the bottom of the calendar. Hours in which video was recorded will be highlighted with blue. Highlight the time bar and select the time using the arrow buttons.
- Page 52 Event Search (by Event) screen Event Search (by Camera) screen Highlight the box beside Search by and press the button to toggle between Event and Camera. You can search video from the first to last recorded images, or you can set the start and stop times and dates. When you select the Search by Camera, select the target cameras and event options.
- Page 53 The DVR maintains a log of each time there is Text Input. The Text-In Log screen displays this list. Highlight the event for which you would like to see video. Pressing the button will extract the event video and display the first image of the event. Pressing the arrow button will start playing the „text-in” video segment with the text-in data on the image.
-
Page 54: Usb Hard Disk Drive Preparation
5. USB Hard Disk Drive Preparation 5.1 Preparing the USB-IDE hard disk drive in Windows 2000 NOTE: Preparing a USB-IDE hard disk drive under Windows XP is almost identical to Windows 2000. 1. Connect the USB-IDE hard disk drive to your computer using the USB Cable. 2. -
Page 55: Text-In Query Examples
5.3 Text-In Query Examples Query Example I In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored automatically), 28th (Qty) and 40th (amount) characters (including spaces) from the left. In this case, you can enter „17”, „28” and „40” in each Column box. For example, if you want to search for Coke with a Qty (Quantity) of more than 1 and Hotdog with an amount totaling over $8, the following search condition can be set. -
Page 56: Troubleshooting
For example, if you want to search for Coke with a Qty (Quantity) of more than 1 and Hotdog with an amount totaling over $8, the following search condition can be set. 6. Troubleshooting Problem Possible Solution No Power • Check power cord connections. •... -
Page 57: Map Of Screens
8. Map of Screens MENU System System Information Date/Time System Check Storage System Log System Shutdown Device Camera Alarm-In Motion Detector Text-In Alarm-Out Audio RS232/RS485 Record Record Mode Time-Lapse Record Pre-Event Record Event Action Alarm-In Action Motion Action Text-In Action Video Loss Action Display Main Monitoring... -
Page 58: Specifications
9. Specifications Type DLR2-04N/160 * DLR2-04N/80 * EDP No. 71931 * 71861 * Remarks Recommended LCD Monitors: s. Accessories Video Standard PAL/NTSC Text Insertion Interface POS/ATM Monitor Display Realtime Multidisplay 25 Fields/sec. (PAL), 30 Fields/sec. (NTSC) Covert Camera Operation Pogrammable Alarm Log Up to 1,000 for user login/out, config. - Page 59 Accessories EDP-No. Description 71855 Hard Disk Drive 160GB for DLR/DLR2 and DXR series 71857 Hard Disk Drive 250GB for DLR/DLR2, DXR/DXR2 and DCR series 74092 System Keyboard with 3-axis Joystick, 5” Monitor 74088 System Keyboard with 3-axis Joystick 90392 15” LCD Professional Colour Monitor, 1024x768 pixels 90393 17”...
- Page 60 Videor Technical E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. VIDEOR TECHNICAL E. Hartig GmbH V1.4 Carl-Zeiss-Str. 8 · 63322 Rödermark, Germany Technical changes reserved. Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 www.videortechnical.com...
