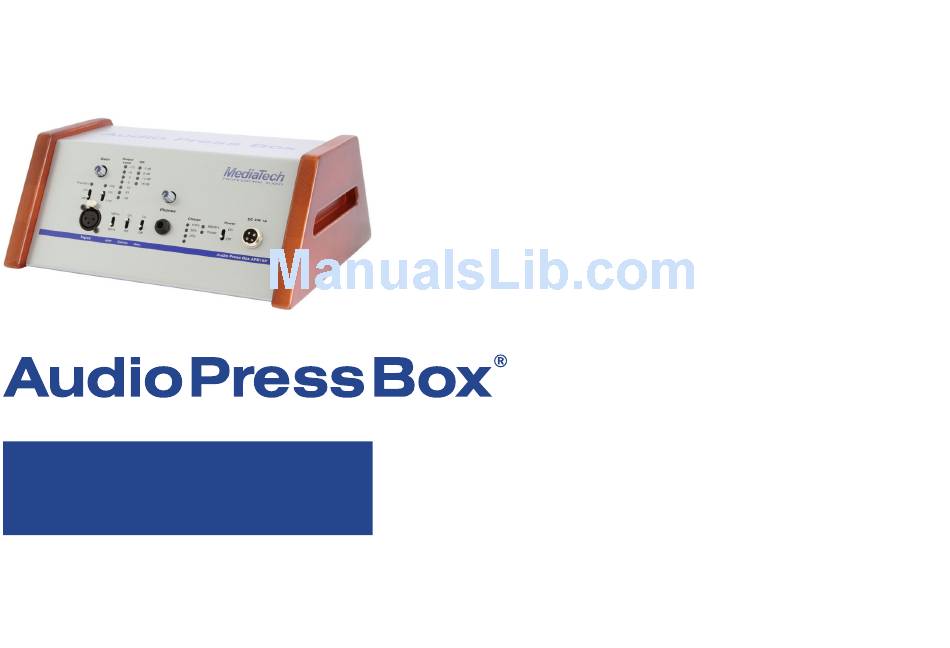

- Page 1 APB-116P Press Conference Audio Distribution Amplifier Owner’s manual...
- Page 2 Dear customer, Thank you for purchasing Audio Press Box® APB-116 P, the most sophisticated portable distribution amplifier. Signal from one lectern’s microphone or line input (i.e. mixing console) is distributed to independent micro- phone/line outputs used by multiple journalists, TV Camera operators, audio recorders and reporters at the same time.
- Page 3 APB-116P - Front panel (Input section) Output level Gain + 12 3 dB 6 dB 12 dB 18 dB Phantom Clip - 24 - 48 Line Phones DC 24V 1A Charge Power 160 Hz 100% Battery Power 80 Hz Input Comp.
- Page 4 Front panel (Input section) rumble like a microphone handling noise or pops. careful when setting the levels, too high monitoring You have 2 possible low-cut frequencies – 80Hz and volumes can damage your hearing ability! 160Hz. The one you choose depends on the sound, Rechargeable battery charging...
- Page 5 APB-116P - Rear panel (Output section) Balanced Isolated Outputs Line Line Line Line Line Line Line Line Mic/Line Mic/Line Level Level -20/+6 dBu -20/+6 dBu Line Line Level Level +6 dBu +6 dBu Audio Press Box APB-116P 20. Mic/Line Outputs 1-8 22.
- Page 6 Get your Audio Press Box® operational: 1. In case you are not running on rechargeable batteries, plug your power supply to the Audio Press Box® and plug it to mains. 2. Turn Audio Press Box® on (by switching Power switch (17) ON). 3.
