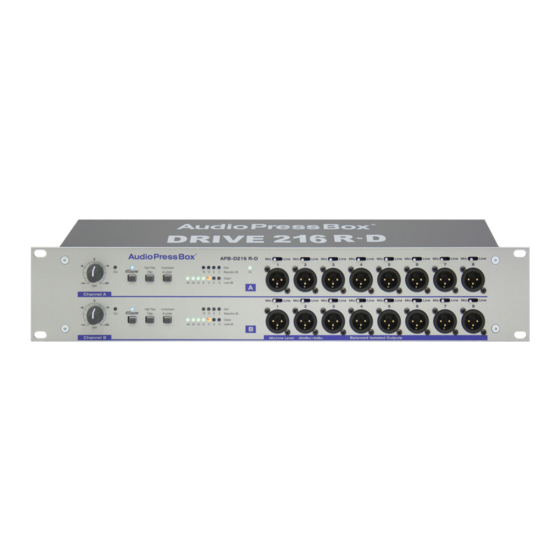

- Page 1 APB-D216 R-D Press Conference Audio Distribution Amplifier Owner’s manual...
-
Page 2: Power Supply/Power Cord
• If the power cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the device, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the electric plug from Do not open • Do not open the device or attempt to disassemble the internal parts or modify them in any the outlet, and have the device inspected by qualified AudioPressBox service personnel. way. The device contains no user-serviceable parts. If it should appear to be malfunctioning, • If this device or the AC power adaptor should be dropped or damaged, immediately turn discontinue use immediately and have it inspected by qualified AudioPressBox service off the power switch, disconnect the electric plug from the outlet, and have the device personnel. inspected by qualified AudioPressBox service personnel. Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. -
Page 3: Handling Caution
Use only the adaptor included with this Be sure to unplug the adaptor from the outlet To avoid generating unwanted noise, make AudioPressBox. Use of a different adaptor may when not using AudioPressBox, or when there sure there is 50 cm or more between the result in equipment damage, overheating, or fire. - Page 4 To provide perfect output signal without clipping or like a microphone handling noise or pops. You have 2 distortion, you can switch the Comp button ON. If you options – full range or 160Hz low-cut frequency. The switch this OFF, signal in output could contain signal one you choose depends on the sound, you want to clipping or distortion. filter out. Transformer 2 buffered expander outputs TRANSFORMER DRIVER Individually transformer isolated outputs. for AudioPressBox expanders 24V DC Power Supply 2-channel Dante interface The package contains AudioPressBox unit. Power supply. Manual Test report...
- Page 5 APB-D216 R-D - Front panel (Input section) APB-D216 R-D Line Line Line Line Line Line Line Line Gain High Pass Composer Reduction dB Clip Filter & Limiter Output Level dB Channel A Line Line Line Line Line Line Line Line Gain High Pass Composer Reduction dB Filter &...
- Page 6 D216R-D-serialnumber. It is set to receive the IP address get perfect signal without clipping or distortion. You can from a DHCP server. switch this element on or off for each input depending your 9) Buffered XLR output for expanders needs. Output for connecting the AudioPressBox expanders 11) Power supply connector (APB-008 SB-EX, APB-024 R-EX, APB-008 OW, APB-008 Please connect supplied AudioPressBox® power supply IW, APB-P112 SB) to provide up to 24 additional Line/MIC here.
-
Page 7: Specifications
Specifications Audio Press Box APB-D216 R Type 2 in 16 out Groups Input section Inputs 2 (Line or Dante) Input connectors Balanced, XLR / 6.3mm JACK, RJ45-Dante Max. input level Line: +32/+2 dBu Input Impedance >5kOhm Output section Outputs 16 Line/MIC level, 2 buffered outputs for expanders (max 48 Line/MIC outputs) Output connectors Balanced, XLR Nominal Output Level... -
Page 8: Block Diagram
Block diagram... - Page 9 | web: www.audiopressbox.com MediaTech Central Europe, a.s., Drienova 34, 821 02 Bratislava, Slovak Republic (EU) Tel: +421 2 20 999 700...
