- Page 1 APB-216 C Press Conference Audio Distribution Amplifier Owner’s manual...
- Page 2 Do not open the device or attempt to disassemble the internal parts or modify them in any the outlet, and have the device inspected by qualified AudioPressBox service personnel. way. The device contains no user-serviceable parts. If it should appear to be malfunctioning, •...
- Page 3 Company names and product names herein are trademarks or registered trademarks of their respective companies. Specifications and descriptions in this owner’s manual are for information purposes only. AudioPressBox reserves the right to change or modify products or specifications at any time without prior notice.

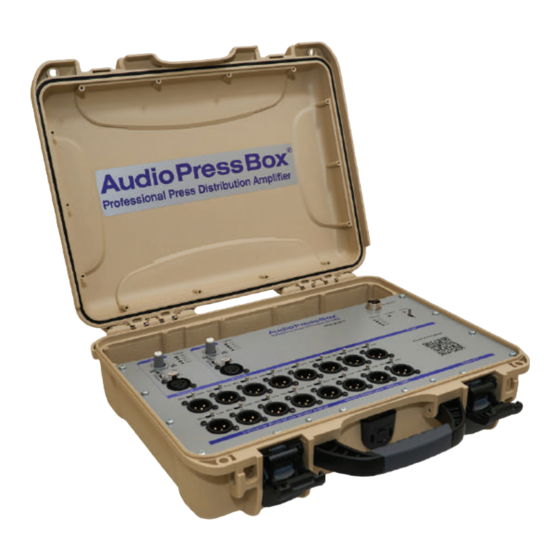

- Page 4 A professional portable 1 channel active press box (Audio Splitter) suitable for both indoor and outdoor press conferences. It features 2 MIC/Line Inputs and 16 Line/Mic Outputs. Each Output is independet transformer balanced and isolated. The APB-216 C also includes a rechargable AccuPack so it can run on its own up to 10 hours. All of this placed in a waterproof, heavy duty Nanuk case.
- Page 5 APB-216 C Be sure to leave this switch off ( ) if yo u do not 1) Input XLR microphone/line connector 3) Mic/Line Input switch need phantom power. CAUTION Input your microphone or line-level source into this If you are using microphone as an input, this lever should...
- Page 6 6) Power supply connector Plug the mains cable to AudioPressBox® here. 7) Power switch With the power switch, you can turn your AudioPressBox® ON or OFF. When AudioPressBox® is turned on, this indicator lights up. 8) Battery and Charge indicator When APB is turned ON and is running on battery, the battery indicator lights blue.
-
Page 7: Specifications
Specifications Audio Press Box APB-216 C Type 2 in 16 out Groups Input section Inputs Input connectors Balanced, XLR Input Gain MIC +22/+62 dB LINE -4/+36 dB Max. input level Mic: -10/-30dBu Line: +36/-4dBu Input Impedance Mic: 2,4 kOhm Line: 3,5 kOhm... -
Page 8: Block Diagram
Block diagram APB-216 C Input 1 Phantom Signal Meter Gain Input Mic/Line Mic/Line Mic/Line HPF 160Hz Compressor Limiter Buffer 26dB Amp. Mic/Line Mic/Line -26dB -26dB Input 2... - Page 9 | web: www.audiopressbox.com MediaTech Central Europe, a.s., Drienova 34, 821 02 Bratislava, Slovak Republic (EU) Tel: +421 2 20 999 700...
