- Page 1 APB-P112SB Press Conference Audio Distribution Amplifier Owner’s manual...
- Page 2 • Do not expose the device to rain, use it near water or in damp or wet conditions, or place device contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue containers on it containing liquids which might spill into any openings. use immediately and have it inspected by qualified AudioPressBox service personnel. • Never insert or remove an electric plug with wet hands. Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following:...

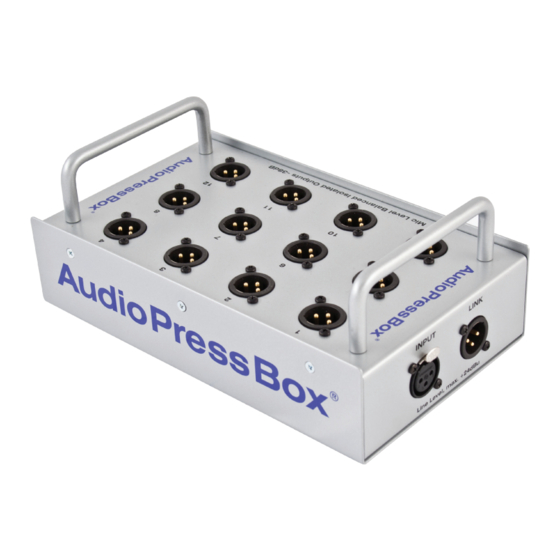

- Page 3 Dear customer, Thank you for purchasing AudioPressBox® APB-P112SB. This is passive unit for AudioPressBox® or mixing console. You can use it everywhere you need more outputs and where you need to distribute your signal all over the room or multiple rooms. APB-P112SB is very compact, full of high quality outputs. You can use only Mic level for each output. With more APB-P112SBs you can cascade your outputs up to 48 along with the basic unit. With AudioPressBox® you are set in a minute with providing the perfect signal to every reporter! APB-P112SB Unpacking your AudioPressBox® Your Audio Press Box® comes to you packaged in the transfer box with the filling material in used to avoid any damage caused by transport. In the package, you should find: Audio Press Box® This manual Please be careful while unpacking all the components from original package. Using your AudioPressBox® Using every Audio Press Box® model is simple and it can be presented in 3 simple steps: Connect your unit to mixing console or to the main unit (AudioPressBox®) Set your output signal Start using your AudioPressBox® unit by providing perfectly processed signal to every recipient, who connects his device into the output module.
- Page 4 APB-P112SB - Front panel (Input section) 1) Input XLR connector 2) Input link Input your output from your main Input link is a parallel output connector to the AudioPressBox® unit mixing input connector. It can be used if you need INPUT LINK console into this XLR balanced to connect more APBs on parallel for more connector.
- Page 5 Specifications AudioPressBox® APB-P112SB Type Passive Unit Groups Inputs 1x XLR Input connectors ballanced, XLR Outputs 12 MIC Level Output connectors ballanced, transformer isolated, XLR-M connector Nominal Output Level MIC: -38dBu Output impedance MIC: 150 Ohm Dimensions (WxHxD) W: 13,5 cm H: 10 cm D: 23 cm...
- Page 6 | web: www.audiopressbox.com MediaTech Central Europe, a.s., Drienova 34, 821 02 Bratislava, Slovak Republic (EU) Tel: +421 2 4341 7777 | Fax: +421 2 4342 7777...
