Summary of Contents for AudioPressBox APB-112 OW-D

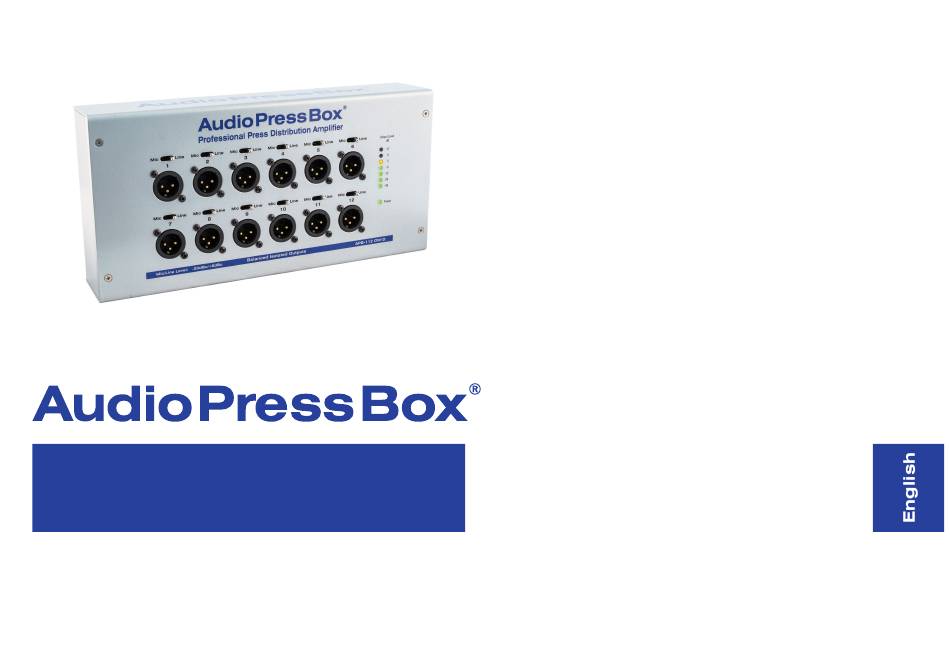

  • Page 1 APB-112 OW-D Press Conference Audio Distribution Amplifier Owner’s manual...
  • Page 2 AudioPressBox service caused by it, immediately turn off the power switch, disconnect the electric plug from personnel. the outlet, and have the device inspected by qualified AudioPressBox service personnel. Water warning •...
  • Page 3 Company names and product names herein are trademarks or registered trademarks of their respective companies. Specifications and descriptions in this owner’s manual are for information purposes only. AudioPressBox reserves the right to change or modify products or specifications at any time without prior...

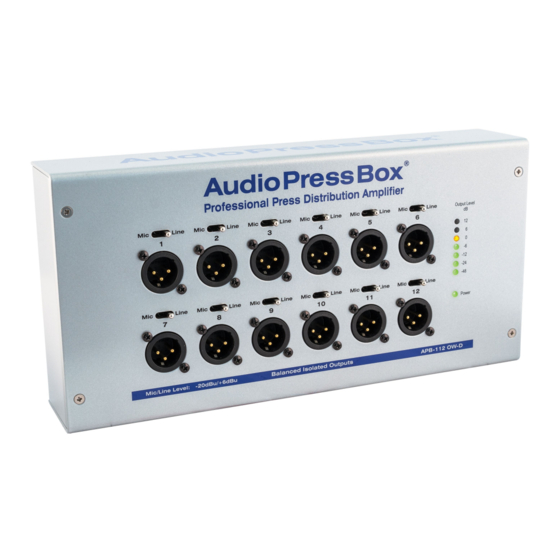

  • Page 4 Thank you for purchasing the AudioPressBox APB-112 OW-D. APB-112 OW-D is an active AudioPressBox unit with one channel DANTE input, 12 transformer isolated outputs with switchable Mic/Line output level. OW suffix means that the unit is designed for wall mounting. The unit is powered directly from Dante network via PoE. It is a PoE Class 3 device...
  • Page 5: Mic/Line Switch

    APB-112 OW-D 1.) Mic/Line switch 4.) Output level indicator Output level switch. You can individually Indicates the analog output level in dB. 0dB select nominal output level for each output. is nominal output level which corresponds Mic = -26dBu, Line = +6dBu to +6dBu (Line) or -26dBu (Mic) on outputs 5.) Dante connector...
  • Page 6 Usage APB-112 OW-D is designed for use as a distribution audio amplifier for press conferences. It features one digital input from Dante network and twelve analog audio outputs with individual output level switch – MIC/LINE. There is no signal processing inside. All desired processing should be done in other devices (e.g. mixing console or DSP).
  • Page 7 Set up the output level on your source device to reach the nominal output on APB – 0dB LED APB-112 OW-D is a PoE Class 3 device, so it on Output Level indicator. You can also set the can be powered from a basic PoE output level switch for each output as desired –...
  • Page 8: Installation

    Installation APB-112 OW-D is designed for “On Wall” installation. 1.) Unscrew 4 screws on top panel 3.) Screw it to the wall, the wall may be 5.) Screw the APB to the back plate from concrete, stud, wood… Please use...
  • Page 9: Specifications

    Specifications Audio Press Box APB-112 OW-D Type 1 in 12 out Groups Input section Inputs Input type digital, Dante Input connector RJ-45 Output section Outputs Output type analog Output Level switchable – Mic: -26dBu, Line: +6dBu +20dBu (no load) Maximum Output Level...
  • Page 10: Block Diagram

    Block diagram...
  • Page 11 | web: www.audiopressbox.com MediaTech Central Europe, a.s., Drienova 34, 821 02 Bratislava, Slovak Republic (EU) Tel: +421 2 20 999 700...
