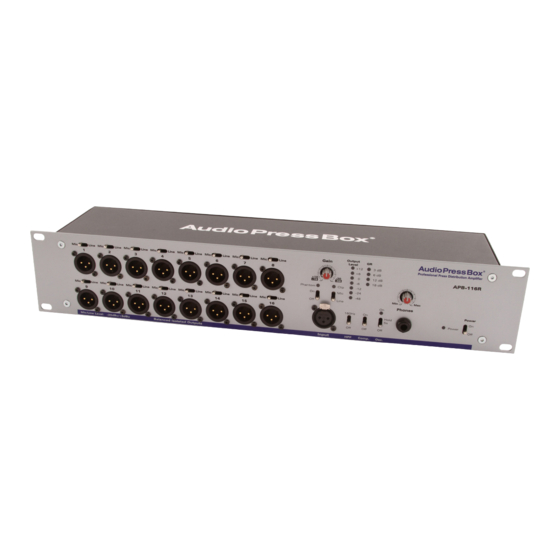

Press conference audio distribution amplifier

Advertisement

Quick Links

APB-116R
Press Conference Audio Distribution Amplifier
Owner's manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the APB-116R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AudioPressBox APB-116R

  • Page 1 APB-116R Press Conference Audio Distribution Amplifier Owner’s manual...
  • Page 2 IMPORTANT NOTICE FOR THE UNITED KINGDOM Connecting the Plug and Cord IMPORTANT. The wires in this mains lead are coloured in accordance with the following code: BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured makings identifying the terminals in your plug proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
  • Page 3 Do not expose the device to rain, use it near water or in damp or wet conditions, or place device contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue containers on it containing liquids which might spill into any openings. use immediately and have it inspected by qualified AudioPressBox service personnel. • Never insert or remove an electric plug with wet hands. Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property.
  • Page 4 TV Camera operators, audio recorders and reporters at the same time. No more hassle with the multiple microphones on the table or disturbing late-coming reporters. With AudioPressBox® you are set in a minute with providing the perfect signal to every reporter! Unpacking your AudioPressBox® Your AudioPressBox® comes to you packaged in the transfer box with the filling material in used to avoid any damage caused by transport.
  • Page 5 APB-116R - Front panel (Input section) Line Line Line Line Line Line Line Line Output Line Line Line Line Line Line Line Line Output level Gain level Gain + 12 3 dB + 12 3 dB APB-116R 6 dB APB-116R 6 dB 12 dB 12 dB...
  • Page 6: Rear Panel

    If the Phantom power is on, this is indicated with solid 12) High-Pass Filter switch 17) Power supply connector red light. This switch helps to avoid distributing low-end Plug the mains cable to AudioPressBox® here. rumble like a microphone handling noise or pops. 6) Input gain level knob You have 2 possible low-cut frequencies – 80Hz and After connecting your microphone, you can set 160Hz. The one you choose depends on the sound,...
  • Page 7 Get your Audio Press Box® operational: 1. In case you are not running on rechargeable batteries, plug your power supply to the AudioPressBox® and plug it to mains. 2. Turn AudioPressBox® on (by switching Power switch (16) ON). 3. Plug your microphone into input XLR connector (11). 4. If you are using condenser microphone, switch Phantom power switch (4) ON. 5. Switch Comp (13) ON 6. Speak to the microphone and adjust the Input gain (6) level to get visual confirmation on output signal level indicator (8) as you speak, this indicator will light up continuously. 7. If you want to hear your output signal, plug your headphones (with 6.3mm TRS connector) to headphone connector (15) and adjust monitoring level (10) to listen to the output. 8. Recipients can plug their recording devices to outputs. 9. You are ready to go!
  • Page 8: Specifications

    Specifications Audio Press Box APB-116 R 1 in 16 Type Groups Input section Inputs Input connectors Balanced, XLR Limiter ON Limiter OFF Max. input level Mic: -10/-30dBu Mic: -2/-42dBu Line: +36/-4dBu Line: +24/-16dBu Phantom Voltage Mic: 2,4 kOhm Line: 3,5 kOhm Input Impedance Output section Outputs...
  • Page 9: Block Diagram

    Block diagram...
  • Page 10 | web: www.audiopressbox.com MediaTech Central Europe, a.s., Drienova 34, 821 02 Bratislava, Slovak Republic (EU) Tel: +421 2 4341 7777 | Fax: +421 2 4342 7777...
