Faucet Drain Tubing and Water Supply Tubing
If Option A, BASEMENT ACCESS INSTALLATION, see
Filtration Drain Connection Installations section, was used,
go to step 2.
If Option B, C or D from page 13 was used, connect
1
the faucet drain tubing by running the 27² length,
3 ⁄ 8 ² tubing from the 3 ⁄ 8 ² faucet barb to the drain fitting
(installed in Filtration Drain Connection Installations
section). Keep this tubing run as short and straight as
possible, without loops, dips, or low-spots. Cut the tubing
as needed and insert into the drain fitting (see Fig. 3B,
3C or 3D in the Filtration Drain Connection Installations
section).

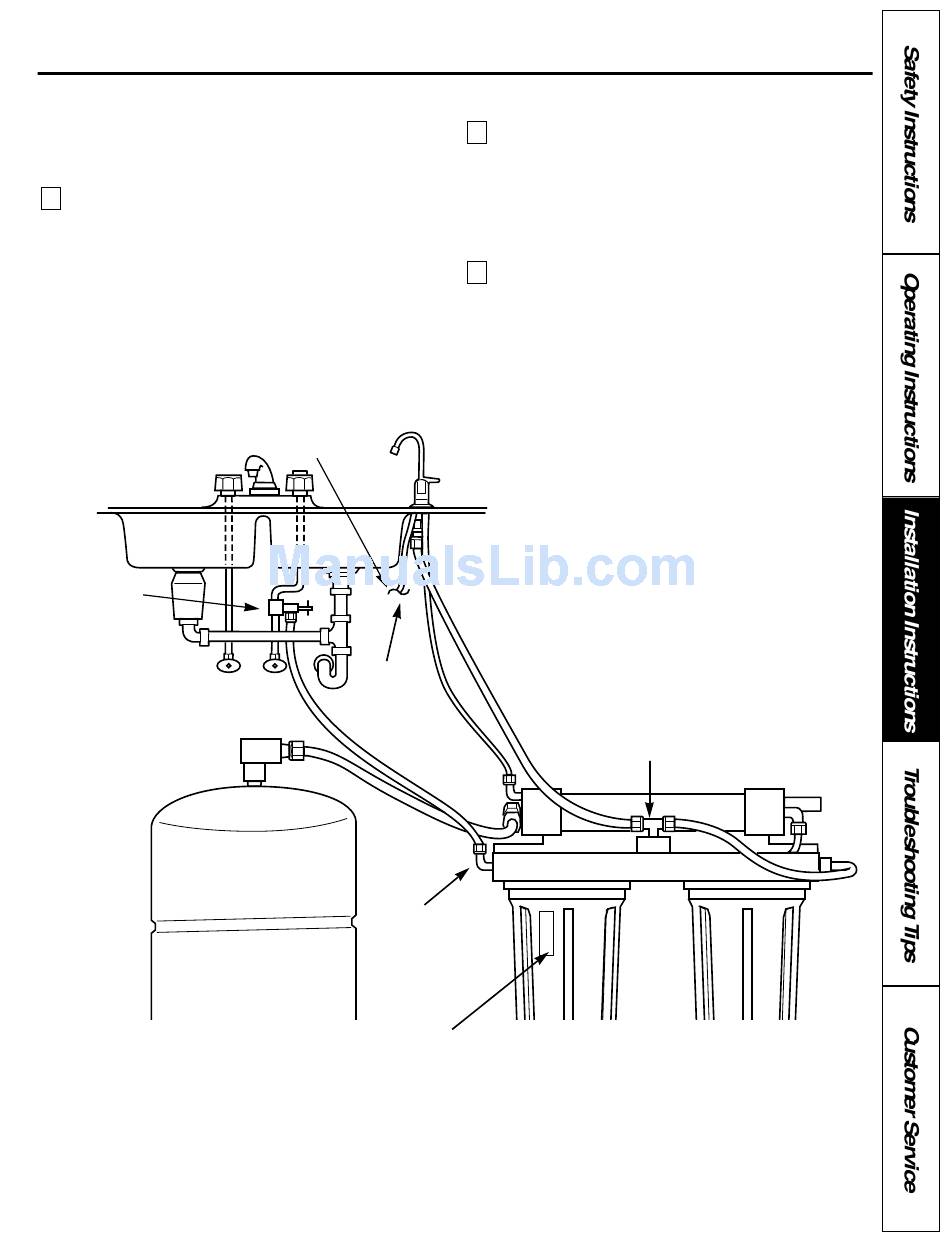

Fig. 5.
Water supply
valve or
compression
fitting
Storage tank
3 ⁄ 8 ²
drain tubing
Drain line*
Hot Cold
RO inlet
Filter Replacement Reminder Label
To connect the water supply tubing: Run the 1 ⁄ 4 ² tubing
2
(marked "WATER SUPPLY") from the Reverse Osmosis
inlet to the feed water supply fitting (see Fig. 2A or 2B,
in the Feed Water Supply section). Connect the tubing as
applies (Fig. 2A or 2B, in the Feed Water Supply section)
and tighten the nut securely (use Teflon Tape™ to
prevent leaks).
Apply the Filter replacement reminder label to one
3
of the filter sumps between the ribs. Mark the date for
filter replacement six months from the installation date.
*For drain line options see Reject Water Drain Fitting section.
Automatic shutoff assembly
