Faucet Installation

Be sure there is room underneath the sink to make the
needed connections. Select one of the following places to
install the faucet:
—IN an existing sink spray attachment or soap dispenser
hole.
—IN a hole to be drilled in the sink top.
—IN a hole to be drilled in the countertop, next to the sink.
NOTE: Looking at Fig. 4B, be sure the faucet base will fit
flat against the surface at the selected location so the gasket
will seal.
If drilling is needed, make a 1-1 ⁄ 4 ² dia. hole.
1
Be sure to use the proper procedure for drilling
porcelain or stainless steel.
Place base on threaded stem (flange facing down).
2
Next, place large gasket on threaded stem, making sure
the stem and two barbed studs fit through the gasket.
Place spacer on stud (open end up) followed by metal
washer and hex nut (Fig. 4A).
Insert washer into tubing adapter. Securely tighten to
3
faucet stud.

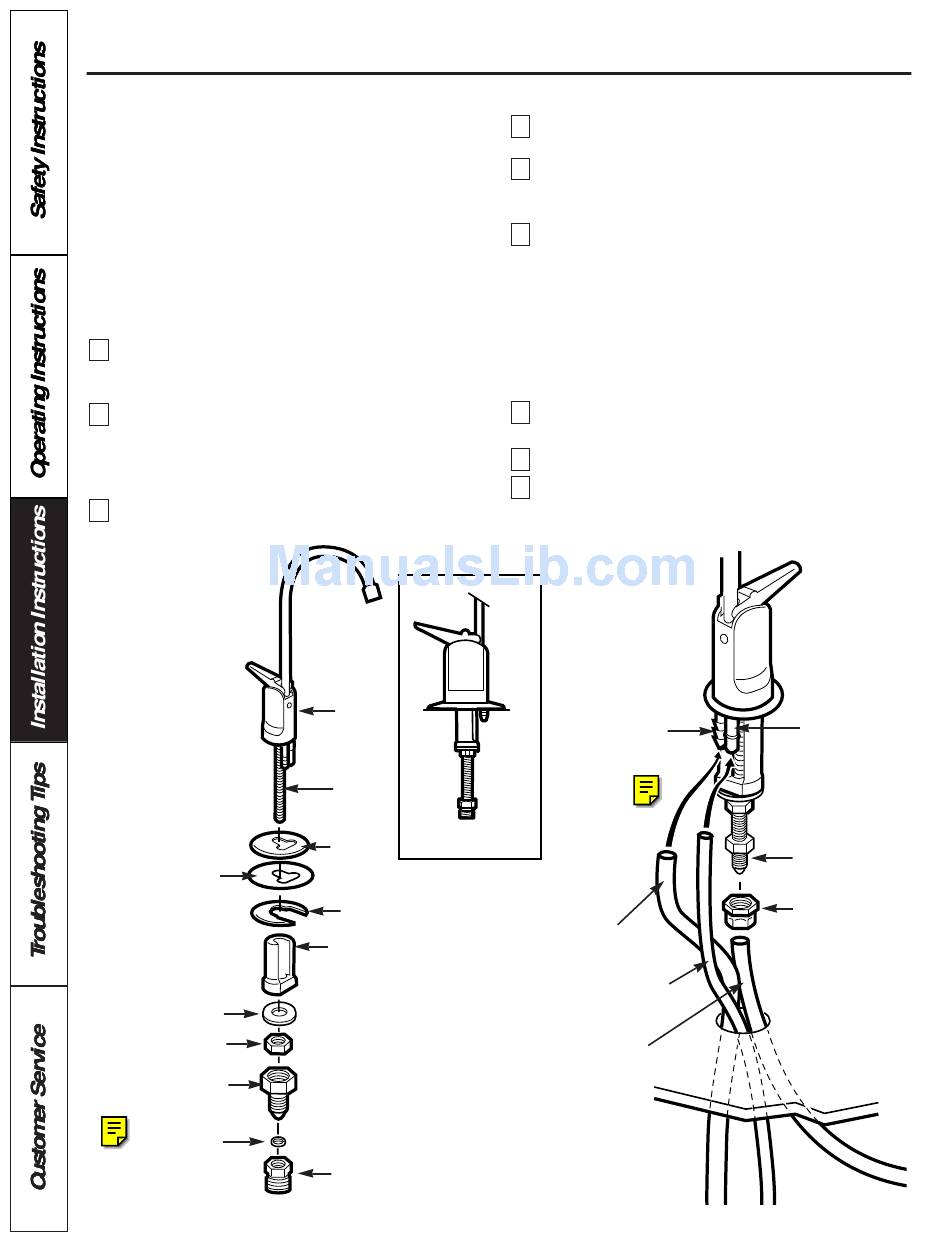

Fig. 4A.
Lever
Large gasket
Metal washer
Hex nut
Tubing adapter
Plastic washer
14
ASSEMBLED
Spout
Faucet
Faucet
stud
Base
Mounting plate
Spacer
NOTE: For ease of service and
maintenance, keep tubing lengths
long enough so removal of the
Reverse Osmosis system from
Compression nut
under the sink is possible.
Take the 27² length of 3 ⁄ 8 ² tubing and push one end
4
completely onto the 3 ⁄ 8 ² faucet barb fitting (Fig. 4B).
Position the Reverse Osmosis system under the sink.
5
Referring to Fig. 5, on the next page, hang the system on
cabinet wall.
Route the 1 ⁄ 4 ² tubing (marked "1 ⁄ 4 ² BARB
6
ON FAUCET") and the 3 ⁄ 8 ² tubing (marked
"FAUCET") up through the mounting hole:
a. Push one end of the 1 ⁄ 4 ² tubing onto the 1 ⁄ 4 ² barb
on the faucet.
b. Using the compression nut, fasten the 3 ⁄ 8 ² tubing to
the tubing adapter and tighten the nut. Make sure the
tubing is completely seated in the adapter.
Remove the short shipping tube and insert the spout
7
into the faucet body.
Lower the faucet assembly through the sink.
8
Under the counter, place the mounting plate above spacer
9
and securely tighten the hex nut.
Fig. 4B.
1/4² barb fitting
1/4² tubing
marked 1/4² barb
3/8² tubing,
27² long
3/8² tubing
marked FAUCET
From RO
3/8² barb fitting
Tubing adapter
Compression nut
From RO
To drain
