Clare Controls Mainline CV-M13B10-ODI Installation Manual

1.3 mp mainline bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network Camera
Installation Guide
1.3 MP Mainline Bullet Camera
Doc ID 2014-08-338 • REV 02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mainline CV-M13B10-ODI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clare Controls Mainline CV-M13B10-ODI

Summary of Contents for Clare Controls Mainline CV-M13B10-ODI

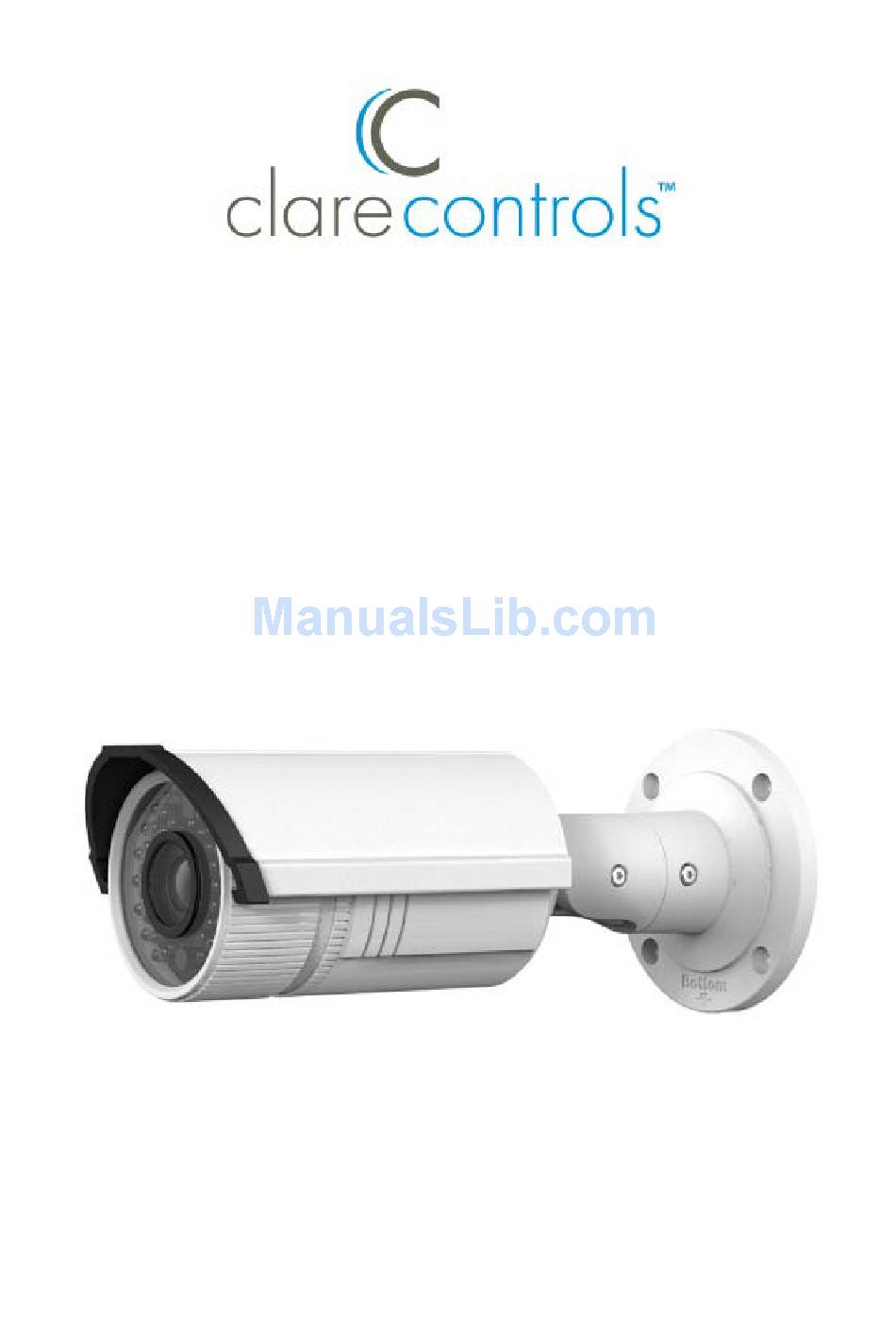

  • Page 1 Network Camera Installation Guide 1.3 MP Mainline Bullet Camera Doc ID 2014-08-338 • REV 02...
  • Page 2 © 04AUG14 Clare Controls, Inc. All rights reserved. Copyright This document may not be copied in whole or in part or otherwise reproduced without prior written consent from Clare Controls, Inc., except where specifically permitted under US and international copyright law.

  • Page 3: Table Of Contents

    Contents Description...1 Package contents...1 Safety instruction...1 Overview...4 Wiring...6 Installation...6 Before you start...7 Mounting...11 View angle adjusting...15 Zoom and focus adjusting...17 Setting the network camera over the LAN...18 Accessing via a web browser...22 System requirements...22 Specifications...27 Regulation information...29 Contact information...31...

  • Page 4: Description

    Description The ClareVision Midrange 1.3 MP Mainline Bullet Camera is a PoE 1.3 MP IP bullet camera for outdoor use. Capable of 1280 × 960 resolution, the camera features a varifocal lens, IR LEDs for nighttime vision up to 20 m, and digital wide dynamic range and zone-configurable backlight compensation for best- case images in various lighting conditions.
  • Page 5 WARNINGS  In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.  Refer to the technical specifications for detailed information.  Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 24 VAC or 12 VDC according to the IEC60950-1 standard.
  • Page 6 CAUTIONS  Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch CMOS modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently.

  • Page 7: Overview

    Overview Figure 1: Camera overview Sun shield Video output interface Front cover Integrated bracket Zoom and focus lever Reset button IR LED (10) SD card slot Lens (11) Power interface Air vent (12) Network interface To reset the default parameters to the camera, press and Note: hold the reset button and power on the camera.
  • Page 8 The bullet camera supports audio and alarm functions. The interfaces are shown in Figure 2. Figure 2: Audio and alarm interfaces Audio Alarm...

  • Page 9: Wiring

    Wiring Wire your bullet camera as shown in Figure 3. Figure 3: Wiring Installation To ensure the camera operates properly, install the camera according to the instructions below.

  • Page 10: Before You Start

    Before you start  Make sure that the device in the package is in good condition and all the assembly parts are included.  Make sure that all the related equipment is powered off during the installation.  To determine the proper environmental operating conditions, refer to Specifications on page 27.
  • Page 11 To mount the SD card: Rotate the TW M3 × 5 screw counterclockwise about 3 to 4 rounds to loosen it. Slide the sun shield according to the arrow direction, as shown in the figure below (left). Turn screw...
  • Page 12 Remove the sun shield according to the arrow direction, as shown in the figure above (right). Remove the front cover by rotating it counterclockwise, as shown in the figure above (right). Insert the SD card to the SD card slot. Place the cover back on the front of the camera and rotate it clockwise, as shown.
  • Page 13 Rotate the TW M3 × 5 screw clockwise to tighten the sun shield. Rotating label For waterproofing, align the rotating label on the front Note: cover with that on the camera when you rotate the front cover clockwise.

  • Page 14: Mounting

    Mounting This camera is equipped with a bracket on the bottom. It can be mounted to a wall or ceiling directly or it can be mounted to a wall with a junction box (not included) or a gang box (not included).
  • Page 15 Screw Hole Cable Hole 2:Screw Hole 1:Screw Hole for Mounting for Bracket Base If you need to route cables through the wall or ceiling, cut a cable hole according to the drill template. Skip this step, if you want to route the cables on the surface of the ceiling.
  • Page 16 Secure the camera to the wall (or ceiling) with expansion screws, as shown below. To mount with a junction box: Attach the drill template to the wall where the camera is to be mounted. Drill holes in the wall according to the number two holes of the drill template.
  • Page 17 If you need to route cables through the wall, cut a cable hole according to the drill template. Skip this step, if you want to route the cables on the surface of the wall or ceiling. Secure the junction box to the wall with expansion screws.

  • Page 18: View Angle Adjusting

    To mount with a gang box: Secure the camera attachment to a gang box with screws. Route the cables of the camera. Gang box Camera attachment View angle adjusting The 3-axis (pan/tilt/rotation) adjusting allows adjustment for optimum camera rotation and placement. You can use this function to get the angle of view that you want.
  • Page 19 To adjust tilt: Loosen the lock screw-2. Adjust the tilting position of the camera. The adjusting range is from 0 degrees to 90 degrees. Tighten the lock screw-2. To adjust rotation: Loosen the lock screw-3. Rotate the rotation position to adjust the azimuth angle of the image.

  • Page 20: Zoom And Focus Adjusting

    Zoom and focus adjusting You can use the zoom lever and focus lever to adjust the zoom value and focus value. To adjust zoom and focus: Disassemble the camera. View the camera image using the monitor. Loosen the zoom lever and move the lever between T (Tele) and W (Wide) to obtain the appropriate angle of view.

  • Page 21: Setting The Network Camera Over The Lan

    Setting the network camera over the LAN To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the SADP software to search and change the IP of network camera. The following figure shows the cable connection of network camera and PC: Figure 4: Wiring over LAN...
  • Page 22 Change the IP address and subnet mask to the same subnet as of your PC. After launching the SADP software, it automatically searches the online devices every 15 seconds from the subnet where your computer is located. It displays the total number and information of the searched devices in the Online Devices interface.
  • Page 23  You can also click Refresh Every 15s to refresh the online device list manually. The newly searched devices are added to the list.  You can click on each column heading to order the information. You can also click to show the device table and hide the network parameter panel on the right side, or click...
  • Page 24 Edit the modifiable network parameters – for example, IP address and port number. Enter the password of the admin account of the device in the Password field and click Save to save the changes. Enter the IP address of the network camera in the address field of the web browser to view the live video.

  • Page 25: Accessing Via A Web Browser

    Notes  The default value of the IP address is 192.168.1.250. The default user name is “clareadmin,” and password is “secure7.”  When accessing the network camera from different subnets, set the gateway for the network camera after you log in. Accessing via a web browser System requirements ...
  • Page 26 Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. You may need to close the web browser to finish Note: the installation of the plug-in.
  • Page 27 Click OK.
  • Page 28 Click Next. Click Finish.
  • Page 29 Reopen the web browser after the installation of the plug- in and repeat steps 2 and 3 to login. For detailed instructions of further configuration, Note: refer to the Network Camera User Guide (Doc ID 343).

  • Page 30: Specifications

    Specifications Camera module Image sensor 1/3 in. progressive scan CMOS Image resolution 1280 × 960 max. Shutter time 1/25 s (1/30 s) ~ 1/100,000 s Minimum illumination 0.01 lux at F1.2, AGC on 0 lux with IR Lens 2.8 ~ 12 mm at F1.4, angle of view: 98°...
  • Page 31 Electrical Power source 12 V DC ± 10 %, PoE (802.3 af) Power consumption Max. 5.5 W (7.5 W with ICR on) Environmental Temperature -22 to 140°F (-30 to 60°C) Relative humidity 0 to 95% noncondensing Mechanical Housing IP66 Dimension 3.74 ×...

  • Page 32: Regulation Information

    Regulation information DISCLAIMER Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product.
  • Page 33 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.

  • Page 34: Contact Information

    Contact information Clare Controls, Inc. 7519 Pennsylvania Ave, Suite 104 Sarasota, FL 34243 Support: 941.404.1072 Fax: 941.870.9646 http://support.clarecontrols.com www.clarecontrols.com...
