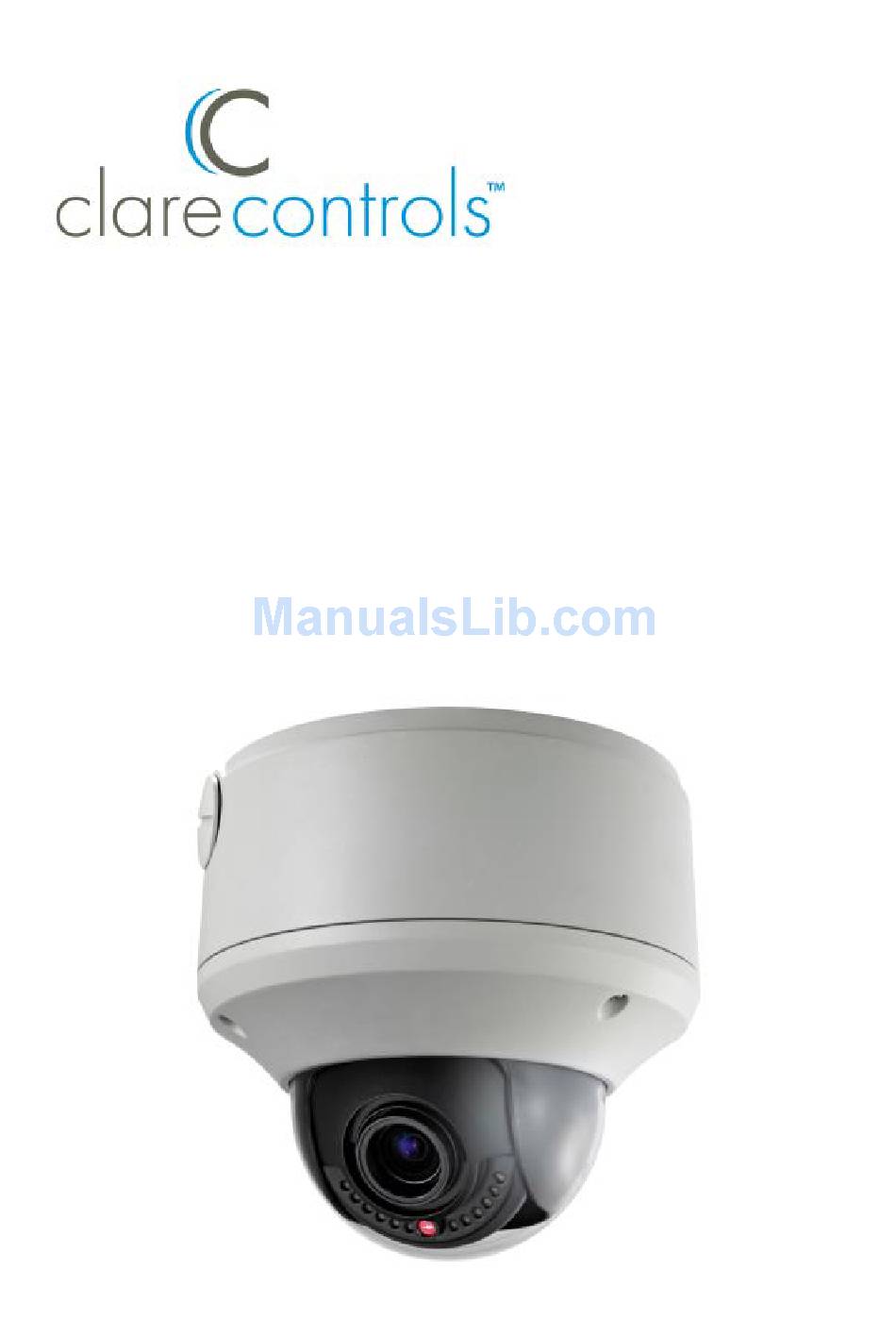

- Page 1 Network Camera Installation Guide 5 MP Motorized Dome Camera Doc ID 2014-08-342 • REV 02...
- Page 2 © 08AUG14 Clare Controls, Inc. All rights reserved. Copyright This document may not be copied in whole or in part or otherwise reproduced without prior written consent from Clare Controls, Inc., except where specifically permitted under US and international copyright law.
-
Page 3: Table Of Contents
Content Description...1 Package contents...1 Safety instruction...1 Overview...4 Wiring...6 Installation...7 Before you start...7 Outdoor mounting...23 Setting the network camera over the LAN...34 Accessing via a web browser...38 System requirements...38 Specifications...43 Regulatory information...45 Contact information...46... -
Page 5: Description
Description The 5 MP Motorized dome camera is a high- r es olu tio n fixed dome IP camera with 5 MP and a built-in fan and heater, making it an ideal choice for all-weather outdoor applications where image detail and/or a wider coverage is important. - Page 6 WARNINGS In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Refer to the technical specifications for detailed information. Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 24 VAC or 12 VDC according to the IEC60950-1 standard.
- Page 7 CAUTIONS Make sure the power supply voltage is correct before using the camera. Do not drop the camera or subject it to physical shock. Do not touch CMOS modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently.
-
Page 8: Overview
Overview Figure 1: Camera overview 1 2 3 4 5 Video output interface LINK: Indicator is solid yellow when network is connected ACT: Indicator flashes blue when network connection is functioning properly PWR: Indicator is solid red when the device is powered on Micro SD slot RESET: Reset the camera 10 M/100 M self-adaptive Ethernet interface... - Page 9 Notes The extended interface can be connected to an alarm input/output interface, audio input/output interface, or RS-485 interface. After the powering on of the camera, pressing and holding the RESET button for about 10 seconds will reset all the parameters to the default settings.
-
Page 10: Wiring
Wiring Wire your dome camera as shown in Figure 3. Figure 3: Wiring... -
Page 11: Installation
Installation To ensure the camera operates properly, install the camera according to the instructions below. Before you start Make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is powered off during the installation. - Page 12 Secure the back box to the ceiling with screws, as shown below.
- Page 13 Loosen the set screws with the hex key (supplied) to remove the lower dome; remove the dome liner.
- Page 14 Install the dome module to the back box and pull the cables through the cable outlet on the bottom of the back box.
- Page 15 If you need to pull the cable through the cable Note: outlet from the side of the camera, remove the cover and use waterproof joints and a waterproof pipe to route the cables.
- Page 16 After connecting the network and power cables, view the image of the camera over the network. Loosen the lock screws and adjust the panning position and tilting position. Rotate the lens to get the desired surveillance angle, and then refasten the lock screws.
- Page 17 Reinstall the dome liner and lower dome to finish the installation. To mount in-ceiling: Drill the screw holes on the ceiling with the supplied drilling template.
- Page 18 Drilling holes Cut the mounting holes on the ceiling with the supplied drilling template. Mounting hole...
- Page 19 Loosen the set screws with the hex key (supplied) to remove the lower dome, and then remove the dome liner. Rotate the toggle to remove it from the toggle bolt. Insert the bolt into the toggle bolt hole on the dome module and use the screwdriver to rotate the bolt slightly but not tightly.
- Page 20 Toggle Bolt Fasten the toggle bolt and the toggle will automatically secure the dome module to the ceiling.
- Page 21 Ceiling After connecting the network cable and power cable, view the image of the camera over the network. Loosen the lock screws, and then adjust the panning and tilting positions. Rotate the lens to get the desired surveillance angle, and then refasten the lock screws.
- Page 22 Reinstall the dome liner and lower dome to finish the installation.
- Page 23 To mount on a wall: Drill the screw holes on the wall with the supplied drilling template. If you need to route the cables from the bottom of the camera, cut a cable hole in the wall. Cable hole Secure the back box to the wall with screws. Position the side cable outlet directly below to Note: prevent moisture from getting inside the camera.
- Page 24 Loosen the set screws with the hex key (supplied) to remove the lower dome; remove the dome liner.
- Page 25 Install the dome module to the back box and pull the cables through the cable outlet on the bottom of the back box. If you need to pull the cable through the cable Note: outlet from the side of the camera, remove the cover and use waterproof joints and a waterproof pipe to route the cables.
- Page 26 Reinstall the dome liner and lower dome to finish the installation.
-
Page 27: Outdoor Mounting
Outdoor mounting You can use outdoor mounting for your Dome Camera. To mount outdoors: Make sure that the ceiling is strong enough to withstand Note: three times the weight of the camera and the housing. Drill the holes in the ceiling. Drill four expansion screw holes and one cable hole in the ceiling. - Page 28 You may only see two expansion screw holes from Note: the above figure, because the visual line is horizontal, the other two expansion screw holes are exactly behind the visible ones. Install the mounting base. Remove the nuts from the expansion screws. Rotate the aluminum pipe to the mounting base and secure every joint with the supplied lock screws.
- Page 29 There are two cable entries on the mounting base. One is in the middle of the mounting base; the other one is hidden by the seal ring that is inserted in the mounting base. See the figure below. Seal ring Cable entry 1 Mounting base Cable entry 2...
- Page 30 Install the housing. Secure the housing to the threaded end of the aluminum pipe with the M4 × 6 lock screws. Insert the securing plate for the network camera, and secure them with the M4 × 8 set screws.
- Page 31 Housing Securing plate Notes Because of the different production batch, some type 11 securing plates may be already installed on the housing, some are not. Check it carefully during the installation. As to the securing plates, not yet installed on the housing, the plate side with the dimpled holes on it should face the ground when being inserted to the housing.
- Page 32 Toggle bolt holes Type 11 securing plate Type 17 securing plate...
- Page 33 Disassemble the camera. Remove the hex screws from the dome camera with the supplied screwdriver to separate the camera lid and the camera. Remove the camera hook because it is not necessary here. See the figure below. Install the camera. Connect the corresponding power/video cables.
- Page 34 Toggle bolts Getting the bolt inserted to the toggle bolt hole and Note: tightened the camera with the toggle bolt correctly is a key point during the installation.
- Page 35 Mount the camera to the ceiling. Insert the bolt into the toggle bolt hole and attach the toggle on its top. Fold the toggle to get the toggle bolt through the securing plate. Unfold the toggle to get it hang on the securing plate, and screw the bolt tight.
- Page 36 Fasten the lock screws to secure the lens, attach the black inner cover and camera lid to the camera. Tighten the screws. Lock screw Camera lid Complete the installation. a. Attach the trim ring to the housing. b. Secure the trim ring and the housing with the hex screws.
- Page 37 Trim ring...
-
Page 38: Setting The Network Camera Over The Lan
Setting the network camera over the LAN To view and configure the camera via LAN (Local Area Network), you will need to connect the network camera in the same subnet with your PC. Then, install the software to search and change the IP of network camera. The following figure shows the cable connection of network camera and PC. - Page 39 Change the IP address and subnet mask to the same subnet as of your PC. After launching the SADP software, it automatically searches the online devices every 15 seconds from the subnet where your computer is located. It displays the total number and information of the searched devices in the Online Devices interface.
- Page 40 You can also click Refresh Every 15s to refresh the online device list manually. The newly searched devices are added to the list. You can click on each column heading to order the information. You can also click to show the device table and hide the network parameter panel on the right side, or click...
- Page 41 Edit the modifiable network parameters – for example, IP address and port number. Enter the password of the admin account of the device in the Password field and click Save to save the changes. Enter the IP address of the network camera in the address field of the web browser to view the live video.
-
Page 42: Accessing Via A Web Browser
Accessing via a web browser System requirements Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32 bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1 G or higher ... - Page 43 To access via a web browser: Open the web browser. In the browser address bar, enter the IP address of the network camera – for example, 192.168.1.250 and press Enter to display the login interface. Enter the user name and password and then click Login. Install the plug-in before viewing the live video and managing the camera.
- Page 44 Click OK.
- Page 45 Click Next. Click Finish.
- Page 46 Reopen the web browser after the installation of the plug- in and repeat steps 2 and 3 to login. For detailed instructions of further configuration, refer to Note: the Network Camera User Guide (Doc ID 343).
-
Page 47: Specifications
Specifications Camera module Image sensor 1/2.5 in. progressive scan CMOS Image resolution 2560 × 1920 (max.) Shutter time 1/25 s ~ 1/100,000 s Minimum illumination 0.6 lux at F1.2, AGC on, 1 lux at F1.6, AGC on, -I: 0 lux with IR Lens 3.5 ~ 9 mm at F1.6, angle of view: 92°... - Page 48 Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1×, QoS (SIP, SRTP, IPv6 optional) Electrical Power source 4 VAC ± 10 %, PoE (802.3 af) -H: 24 VAC ± 10 %, High PoE (802.3 at) Power consumption max.
-
Page 49: Regulatory Information
Regulatory information DISCLAIMER Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. -
Page 50: Contact Information
(Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see www.recyclethis.info. Contact information Clare Controls, Inc. 7519 Pennsylvania Ave, Suite 104 Sarasota, FL 34243 Support: 941.404.1072 Fax: 941.870.9646 http://support.clarecontrols.com...
