Content Description...1 Package contents...1 Safety instruction...2 Overview...4 Wiring...5 Installation...6 Before you start...6 Disassembling...7 Mounting...8 Conduit installation on the side...12 Ceiling mounting with gang box...14 Wall mounting...16 Image and focus adjusting...20 Setting the network camera over LAN...23 Accessing via a web browser...27 System requirements...27 Specifications...31 Regulatory information...33...

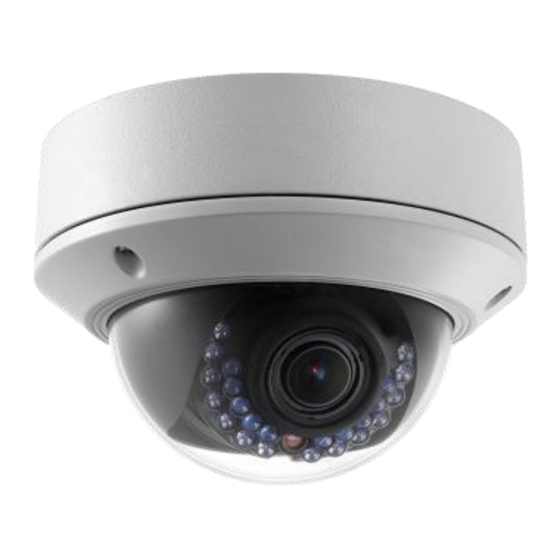

Description The 3 MP Mainline Dome Camera is a high resolution fixed dome IP camera with 3 MP, making it an appropriate choice for outdoor applications where image detail and/or a wider coverage is important. Capable of 2048 × 1536 resolution, the camera incorporates digital wide dynamic range and 20 meter IR LEDs for use in varying light conditions.
Safety instruction Follow these instructions to ensure that the product is used correctly and to avoid danger or property loss. Serious injury or death may occur if any of the warnings are ignored. Injury or equipment damage may occur if any of the cautions are neglected.
Page 7
CAUTIONS Make sure the power supply voltage is correct before using the camera. Do not drop the camera or subject it to physical shock. Do not touch CMOS modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently.
Overview Figure 1: Camera overview Lower dome Power interface Black liner Ethernet interface Reset button Mounting base AUX video output interface Lens Serial port To reset the default parameters to the camera, press and Note: hold the reset button and power on the camera. After powered on, continue to press and hold the reset button for another 10 seconds.
Installation To ensure the camera operates properly, install the camera according to the instructions below. Before you start Make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is powered off during the installation.
Disassembling To disassemble the camera: Loosen the three screws on the edge of the lower dome with a screwdriver. Open the lower dome and remove the inner black liner, as shown below.
Mounting To mount on a ceiling: Disassemble the camera as described in the previous section. Attach the drill template to the place where you want to fix the camera. As shown in the drill template below, drill three screw holes in the ceiling.
Page 13
If you want to route the cables inside the ceiling, drill a cable hole in the ceiling according to the drill template. Skip this step, if you want to route the cables on the surface of the ceiling. Refer to Conduit installation on the side on page 12.
Page 14
Route the cables through the cable hole. Connect the video output connector to the monitor. Connect the power connector to the power supply. Adjust the image and focus. Install the inner black liner back to the camera.
Page 15
Install the lower dome back to the camera and secure it with screws, as shown below.
Conduit installation on the side If you want to route the cables from side of the camera, you need to follow the steps below to install a conduit for cable routing. To route the cables from the side: Rotate the waterproof plug counterclockwise to remove it from the camera.
Page 17
For wall mounting, position the side outlet directly Note: downward for waterproofing.
Ceiling mounting with gang box To mount the camera on the ceiling with a gang box: Disassemble the camera. Install the gang box in the ceiling. Attach the mounting base to the gang box with two screws.
Page 19
Route the cables through the hole in the center of the mounting base. Align the camera with the mounting base. Tighten the screws to secure the camera with the mounting base. Connect the video output connector to the monitor. Connect the power connector to the power supply. Adjust the image and focus.
Install the inner black liner back to the camera. Align the lower dome with the camera. Tighten the screws to secure the lower dome with the camera, as shown below. Wall mounting For the wall mounting, you must purchase a wall mount. To mount the camera on the wall: Disassemble the camera.
Page 21
Align the screw holes of the mounting base with the corresponding screw holes of the mounting adapter. Secure the mounting base to the mounting adapter with four screws.
Page 22
Route the cables through the hole in the center of the wall mount. Align the camera with the mounting base. Tighten the set screws to secure the camera with the mounting base. Connect the video output connector to the monitor. Connect the power connector to the power supply.
Page 23
Adjust the image and focus. Camera Install the inner black liner back to the camera. Align the lower dome with the camera.
Tighten the screws to secure the lower dome with the camera. Image and focus adjusting To adjust image and focus: Make the three-axis adjustment. View the camera image using the monitor. Rotate the panning table to adjust the panning position of the camera.
Page 25
Rotate the lens table to adjust the azimuth angle of the image. Tilt Rotate To adjust zoom and focus: View the camera image using the monitor. Loosen the zoom lever and move the lever between T (Tele) and W (Wide) to obtain the appropriate angle of view.
Setting the network camera over To view and configure the camera via LAN (Local Area Network), you will need to connect the network camera in the same subnet with your PC. Then, install the SADP software to search and change the IP of network camera. The following figure shows the cable connection of network camera and PC.
Page 28
It displays the total number and information of the searched devices in the Online Devices interface. The interface displays the device type, IP address, port number, and gateway. Notes The camera takes 15 seconds to show up online, and 45 seconds to show offline when it is removed.
Page 29
To modify device information: Select the device to be modified from the device list, as shown below. The network parameters of the device are displayed in the Modify Network Parameters panel, as shown below. Edit the modifiable network parameters as necessary.
Page 30
Enter the password of the admin account of the device in the Password field and click Save to save the changes. Enter the IP address of the network camera in the address field of the web browser to view the live video. Notes ...
Accessing via a web browser System requirements Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32 bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1 G or higher ...
Page 32
Notes You may need to close the web browser to finish the installation of the plug-in. Mac’s require the plug-in to be downloaded manually. See the Clare Controls ClareVision IP CCTV Dashboard to download the plug-in. Click OK.
Page 34
Reopen the web browser after the installation of the plug- in and repeat steps 2 and 3 to login. For detailed instructions of further configuration, Note: refer to the Network Camera User Guide (Doc ID 343).
Specifications Camera module Image sensor 1/3 in. Progressive scan CMOS Image resolution 2048 × 1536 max. Shutter time 1/25s to 1/100,000s Illumination 0.07 lux at F1.2, AGC on 0 lux with IR (min.) Lens 2.8 to 12 mm at F1.4, Angle of view: 98° to 30.5°...
Page 36
Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1×, QoS, UPnP (SIP, SRTP, IPv6 optional) SD memory Built-in Micro SD card slot, up to 32 GB Electrical Power source 12 VDC ± 10%, PoE (802.3 af ) Power consumption Max.
Regulatory information DISCLAIMER Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product.
Page 38
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
Warranty information Clare Controls offers a three (3) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, www.clarecontrols.com/warranty. Scan the code to view product warranty details.
