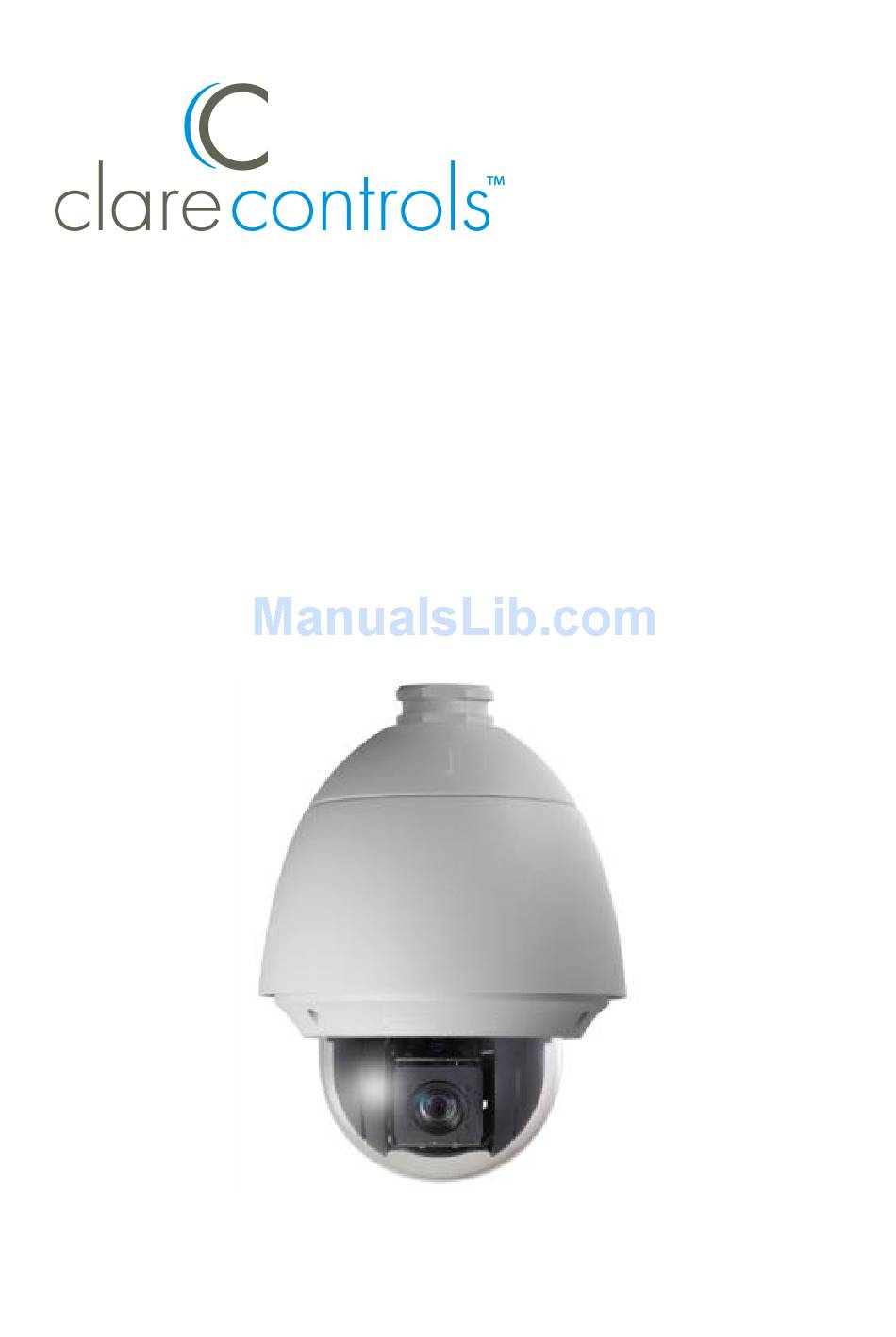

Page 1: Network Camera
Network Camera Installation Guide Mainline 2MP PTZ Dome Doc ID 2014-11-684 • REV 02... -
Page 3: Table Of Contents
Content Description...1 Safety instruction...1 Overview...4 Micro SD card instructions...5 Installation...5 Wall mounting...6 In-ceiling mounting...10 Setting the dome over the LAN...15 Accessing via a web browser...20 System requirements...20 Specifications...24 Regulatory information...27 ... -
Page 5: Description
Description The ClareVision Mainline 2MP PTZ Dome camera (CV-M2PT10-OD) is integrated with a built-in pan/tilt unit and a digital image receiver. The camera features highly sensitive response and reliable performance, and it also ensures the image clarity and stability. Safety instruction Follow these instructions to ensure that the product is used correctly and to avoid danger or property loss. - Page 6 • If smoke, odor, or noise rise from the device, turn off the power at once and unplug the power cable. Contact the service center. • If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself.
- Page 7 CAUTIONS • Make sure the power supply voltage is correct before using the camera. • Do not drop the camera or subject it to physical shock. • Do not touch CMOS modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently.
-
Page 8: Overview
• Improper use or replacement of the battery may result in hazard of explosion. Replace it with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer. • If the product does not work properly, please contact your dealer or the nearest service center. -
Page 9: Micro Sd Card Instructions
Micro SD card instructions There are two kinds of SD card slot positions because of different dome models. Refer to the following reference-only figures. Figure 2: Install the SD card SD Card Slot SD Card Slot Installation Before you start, check the package contents and make sure that the device in the package is in good condition and that all the assembly parts are included. -
Page 10: Wall Mounting
Figure 3: Do not carry the dome by its cables Wall mounting When mounting the dome to a wall, be sure that the wall is thick enough to mount the expansion screws. The wall must be strong enough to withstand more than four times the weight of the dome and its accessories. - Page 11 Screw holes Loosen the screws and remove the lower dome from the back box. Remove the protective lens cover, foam, and sticker from the dome drive. See the following figure. Attach the lower dome to the back box, and then secure it with screws.
- Page 12 Lens cover Protective sticker Protective foam Secure the dome to the wall mount. a. Feed the dome cables through the wall mount. b. Rotate the connector of dome to the wall mount. c. Tighten the lock screw with the hex key (supplied) to secure the two units.
- Page 13 V I EO Cables Connector Lock screw Route the cables and secure the wall mount. a. Route the cables for the dome. Refer to “Overview” for connecting the cables. b. Tighten the set screws to secure the wall mount to the wall with the dome.
-
Page 14: In-Ceiling Mounting
Set screws In-ceiling mounting When mounting the dome in the ceiling, be sure that the height of the space above the ceiling is more than 25 cm. The ceiling must be with the thickness between .5 and 4.0 cm. The ceiling must be strong enough to withstand more than four times the weight of the dome and its accessories. - Page 15 Disassemble the dome. a. Loosen three screws as shown in the following figure. b. Remove the lower dome. Lower dome Three screws Loosen the three screws and remove the back box.
- Page 16 Remove the protective lens cover, foam, and sticker from the dome drive. Install the toggle bolts. a. Remove the toggle from the toggle bolt. b. Insert the bolts into the screw holes on the dome. c. Rotate the bolts through the screw holes.
- Page 17 Toggle bolt holes Reinstall the toggles as shown below. Toggle Bolt Align the toggle bolts with the screw holes on the ceiling.
- Page 18 Push the dome to the mounting hole on the ceiling. Rotate the bolts again. The toggle will automatically rotate down to secure the dome to the ceiling. Toggle Ceiling Attach the lower dome to the dome. Secure the lower dome with three screws. Screws Route the cables through the ceiling for the dome.
-
Page 19: Setting The Dome Over The Lan
PC. Next, install the SADP software to search and change the IP of network camera. You can download the SADP software tool from the Clare Controls website at www.clarecontrols.com. The following figure shows the cable connection of network... - Page 20 Figure 4: Wiring over LAN To set the camera’s IP address for accessing via LAN: To get the IP address, use the SADP software tool. The tool can automatically detect the network camera in the LAN and list the device information, such as IP address, subnet mask, port number, device serial number, device version, etc., shown in the following figure.
- Page 21 Change the IP address and subnet mask to the same subnet as of your PC. After launching, the SADP software automatically searches the online devices every 15 seconds from the subnet where your computer is located. It displays the total number and information of the searched devices in the Online Devices interface.
- Page 22 parameter panel on the right side, or click Left arrow to show the network parameter panel. To modify device information: Select the device to be modified from the device list. The network parameters of the device will be displayed in the Modify Network Parameters panel on the right side, as shown below.
- Page 23 Edit the modifiable network parameters – for example, IP address and port number. Enter the password of the admin account of the device in the Password field and click Save to save the changes. Enter the IP address of network camera in the address field of the web browser to view the live video.
-
Page 24: Accessing Via A Web Browser
Accessing via a web browser System requirements • Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits • CPU: Intel Pentium IV 3.0 GHz or higher • RAM: 1G or higher •... - Page 25 To access via a web browser: Open the web browser. In the browser address bar, enter the IP address of the network camera – for example, 192.168.1.250, and then press Enter to display the login interface. Enter the user name and password, and then click Login.
- Page 26 Click OK. Click Next.
- Page 27 Click Finish. Reopen the web browser after the installation of the plug-in and repeat steps 2 and 3 to login. Note: For detailed instructions of further configuration, refer to the Network Camera User Guide (Doc ID 343).
-
Page 28: Specifications
Specifications Camera Image sensor 1/2.8 in. Progressive Scan CMOS Minimum illumination 0.05 lux at F1.6, AGC ON (color) 0.01 lux at F1.6, AGC ON (black and white) White balance Auto/Manual/ATW/Indoor/Outdoor/ Daylight lamp/Sodium lamp Digital noise reduction 3D DNR Wide dynamic range Digital WDR Shutter time 1/1 to 1/10,000s... - Page 29 Park action Pattern / Pan scan / Tilt scan / Frame scan / Panorama scan / Random scan Power-off memory Supported PTZ position display On / Off Preset freezing Supported Input / output Monitor output 1.0V[p-p] / 75Ω, PAL or NTSC composite, BNC Audio input 1 audio input (line input), 2-2.4 V [p-p];...
- Page 30 System integration Interface for application Open-ended API, support Onvif, PSIA and CGI programming Web browser IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 + Power 24 VAC /PoE + 802.3at 18 W max. (heater: 6W) (outdoor) 12 W max.
-
Page 31: Regulatory Information
Regulatory information DISCLAIMER Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. - Page 32 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 33: Contact Information
Contact information Clare Controls, Inc. 7519 Pennsylvania Ave, Suite 104 Sarasota, FL 34243 Support: 941.404.1072 Fax: 941.870.9646 http://support.clarecontrols.com www.clarecontrols.com...
