Planning

Identify the type and height of your garage door. Survey your
garage area to see if any of the conditions below apply to your
installation. Additional materials may be required. You may find it
helpful to refer back to this page and the accompanying
illustrations as you proceed with the installation of your opener.
Depending on your requirements, there are several installation
steps which may call for materials or hardware not included in the
carton.
• Installation Step 1 – Look at the wall or ceiling above the
garage door. The header bracket must be securely fastened to
structural supports.
• Installation Step 5 – Do you have a finished ceiling in your
garage? If so, a support bracket and additional fastening
hardware may be required.
• Do you have an access door in addition to the garage door? If
not, Model 1702E Outside Quick Release is required. See
Accessories page.

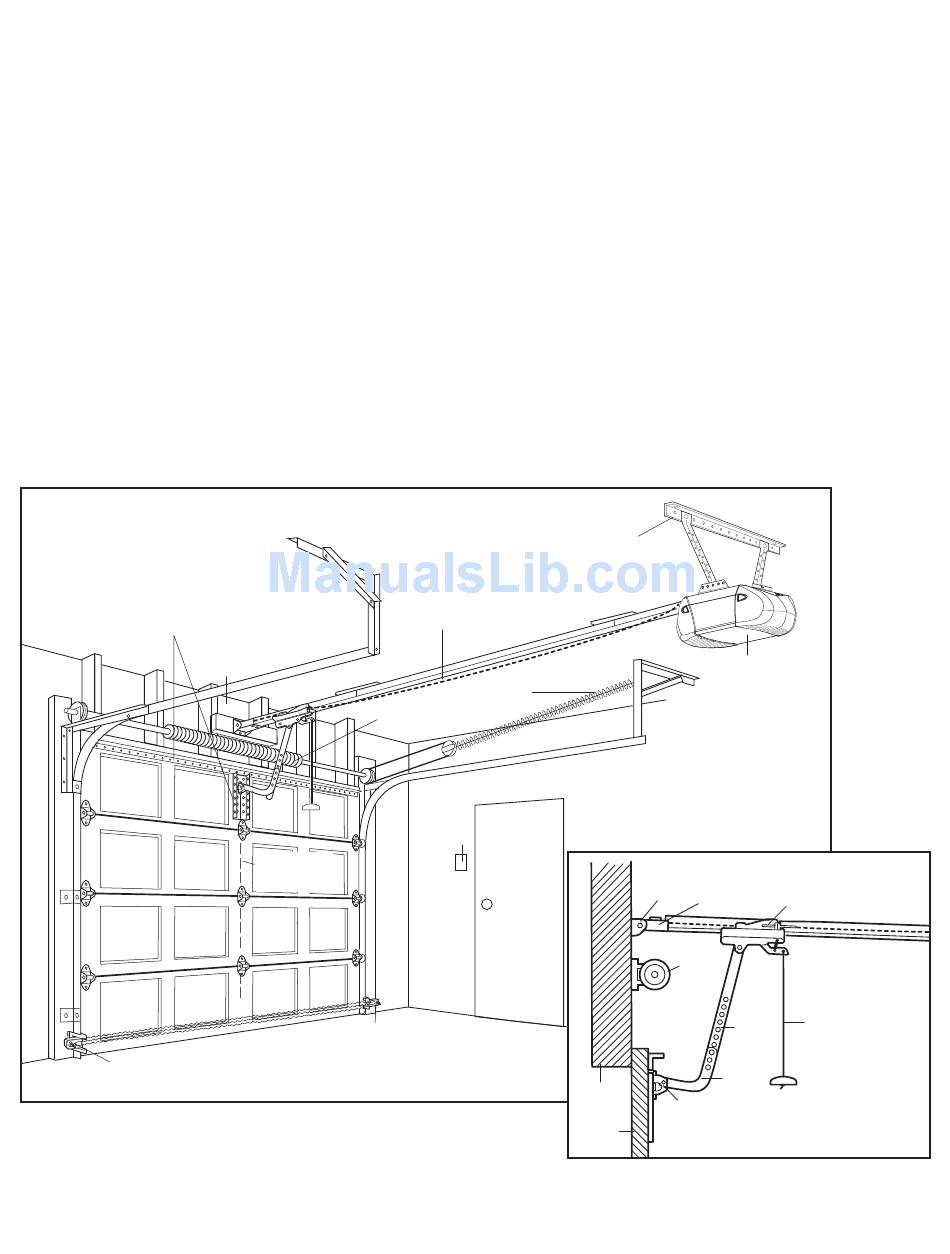

SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 25 for details.
Header Wall
Safety Reversing Sensor
(Optional Accessory)
Torsion
Spring
Vertical
Centerline
of Garage Door
Safety Reversing Sensor
Gap between floor
(Optional Accessory)
and bottom of door
must not exceed 6 mm.
• Look at the garage door where it meets the floor. Any gap
between the floor and the bottom of the door must not exceed
6 mm. Otherwise, the safety reversal system may not work
properly. See Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass panel door?
If so, horizontal and vertical reinforce ment is required
(Installation Step 10).
• The opener should be installed above the center of the door. If
there is a torsion spring or center bearing plate in the way of
the header bracket, it may be installed within 1.2 m to the left
or right of the door center. See Installation Steps 1 and 10.
FINISHED CEILING
Support bracket &
fastening hardware
is required.
See page 21.
Slack in chain tension
is normal when
garage door is closed
Extension
Spring
OR
Wall-
mounted
Access
Door
Door
Control
Header
Wall
Garage
Door
4
Motor unit
CLOSED POSITION
Header
Chain Pulley
Bracket
Bracket
Trolley
Garage
Door
Spring
Straight
Emergency
Door
Release
Arm
Rope & Handle
Curved
Door
Arm
Door Bracket
