Life Fitness SC8500 General Assembly

Life Fitness SC8500 General Assembly

Stepper
Hide thumbs Also See for SC8500:

Advertisement

Quick Links

Download this manual

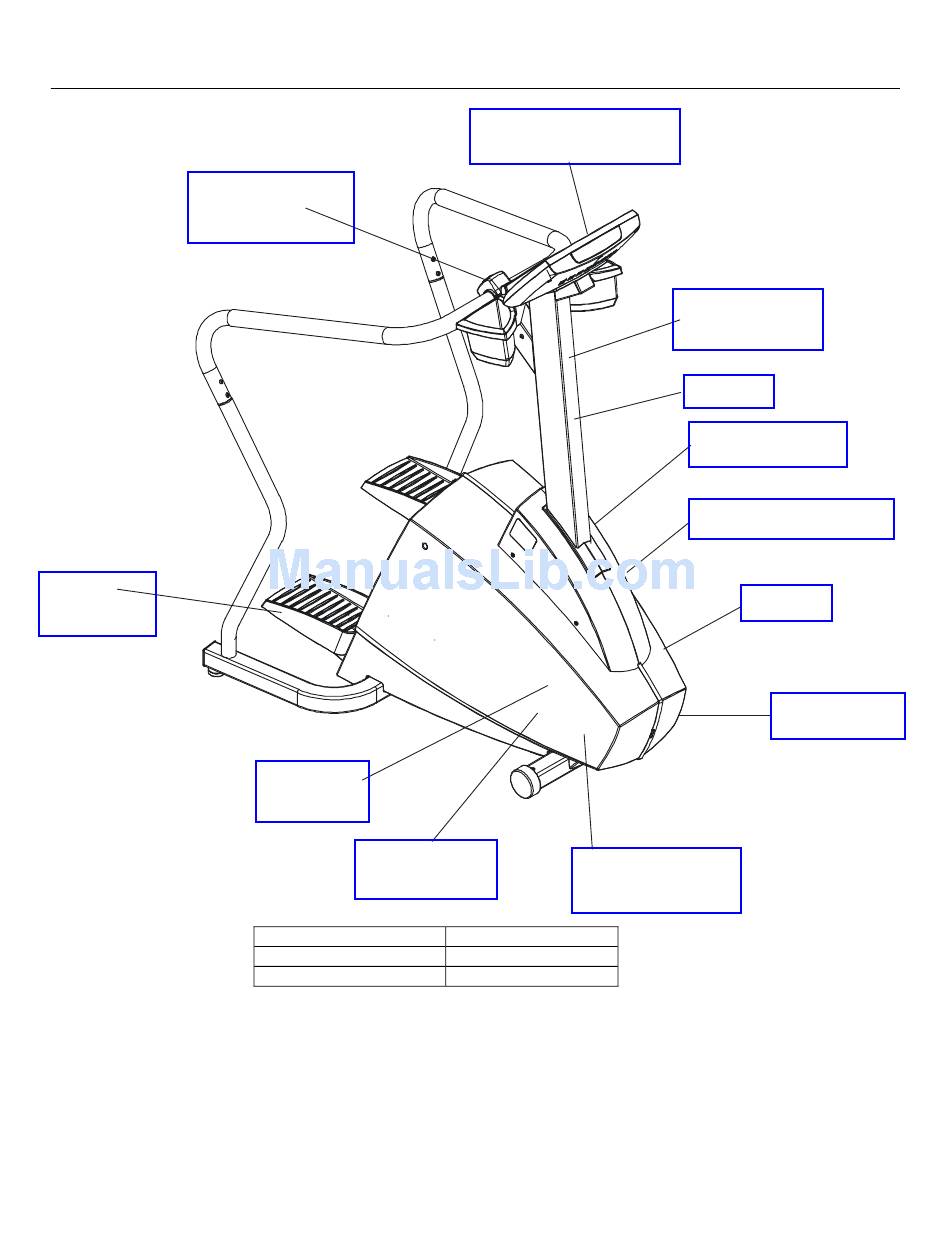

Stepper SC8500 - S/N HSG100000
General Assembly
Polar Receiver
Assembly
Pedal
Assembly
Alternator
Assembly
Main Drive
Pulley/Clutch
Operation Manual
Service Manual
Hardware Bag
1Page 1 of 13
Console Overlay
Bezel Assembly
Crossover
Pulley Assembly
M051-00K20-A311
M051-00K47-A013
AK47-00080-0000
Frame
Components
Cables
Guide Rollers
Clutch Assembly LT
Shrouds
PCB/Resistor

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC8500 and is the answer not in the manual?

Questions and answers

Related Manuals for Life Fitness SC8500

Summary of Contents for Life Fitness SC8500

  • Page 1 Stepper SC8500 - S/N HSG100000 General Assembly Console Overlay Bezel Assembly Polar Receiver Assembly Frame Components Cables Guide Rollers Clutch Assembly LT Pedal Shrouds Assembly PCB/Resistor Alternator Assembly Main Drive Crossover Pulley/Clutch Pulley Assembly Operation Manual M051-00K20-A311 Service Manual M051-00K47-A013...
  • Page 2 Stepper SC8500 Console Overlay Bezel Assembly Bezel/Switch Assembly Switch Membrane AK63-00075-0000 118E-00001-0133 Upper Overlay Console Board - Upper A084-92220-A003 Console Case Assembly Lower Overlay AK63-00121-0000 Phillips Pan Screws(13) 0017-00101-1650 Battery Door 0K63-01029-0000 Console Assembly Overlay Bezel Upper Overlay Lower Overlay...

  • Page 3: Frame Components

    Stepper SC8500 Frame Components Console Mounting Screws Optional Accessory 0017-00101-1253 Tray Kit 0K63-00002-0004 Mounting Screws 0017-00101-1253 Handlebar AK47-00057-0000 Mono-Column AK47-00067-0000 TORX Capscrew(4) Mono-Column Decal 0017-00101-1715 0K47-01125-0000 Vertical Handrail 0K47-01030-0000 End Cap 0K47-01156-0000 Leg Levelers AK61-00035-0000 Jam Nut 0017-00103-0273 Wheel 0K63-01040-0000...
  • Page 4 Stepper SC8500 Shrouds Mono-Column Shroud AK47-00083-0000 - Sc85 AK47-00082-0000 - Sc95/91 Phillips Pan Screw(2) 0017-00101-1242 Grommet 0017-00042-0754 Phillips Pan Screw(2) 0017-00101-1735 Center Shroud 0K47-01057-0000 Left Shroud AK47-00064-0002 w/Cable Pedal Tube 0K47-01132-0000 Pedal Tube Cover Rail Bracket Right Shroud Mounting Bolts...

  • Page 5: Pedal Assembly

    Stepper SC8500 Pedal Assembly Track Roller 0K47-01084-0000 Roller Sleeve(2) Retainer, Bottom Center Track Roller 0K47-01084-0000 0K35-01144-0001 0K47-01084-0000 Side Roller Hex Bolt(4) Retainer, Top 0017-00101-1731 0K35-01144-0003 Sleeve Roller(2) Allen Screw 0K47-01136-0000 0017-00101-1348 Track Roller(4) 0017-00103-0052 w/Busshing Assy AK47-00087-0000 Mono-roller Hex Bolt(2)
  • Page 6 Stepper SC8500 Main Drive Pulley and Clutch Main Drive Pulley/Shaft AK47-00006-00000 E-ring 0017-00100-0107 Thrust Washers Thrust Washer(3) 0K47-01104-0000 Flat Washer 0K47-01105-0000 Right Drive Clutch Assembly AK47-00043-0001 Main Drive Belt 0K47-01054-0000 6Page 6 of 13...
  • Page 7 Stepper SC8500 Clutch Assembly - LT Thrust E-Ring Left Pulley Clutch Washer AK47-00043-0002 E-Rings(2) 0017-00100-0107 Flat Washers(3) 0K47-01105-0000 Thrust Flat Washer Washer 7Page 7 of 13...

  • Page 8: Crossover Pulley Assembly

    Stepper SC8500 Crossover Pulley Assembly Crossover Pulley Assy AK47-00007-0000 Frame Lock Nut 0017-00103-0025 0017-00103-0026 Washer 0017-00104-0043 Magnet 118E-00001-0124 Bolt 0017-00101-1717 Screw Plate 0017-00101-1713 0K47-01056-0000 Tensioning Bolt 0017-00101-0928 Adjustable Bracket 0K47-01052-0000 Auto Start Switch Bolts(2) and Cable 0017-00101-1048 AK63-00050-0000 8Page 8 of 13...

  • Page 9: Alternator Assembly

    Stepper SC8500 Alternator Assembly Alternator w/Flywheel Alternator Flywheel AK47-00038-0000 0K47-01069-0000 Alternator Pivot Bolt Locking Nut 0017-00101-0956 0017-00103-0117 Washer 0017-00104-0044 Tensioning Bracket 0K47-01053-0000 Tensioning Bracket Bolt 0017-00101-0986 Alternator Belt 0K47-01106-0000 9Page 9 of 13...
  • Page 10 Stepper SC8500 Guide Rollers Spring Guide Pulley(2) 0K47-01066-0000 Snap Ring(6) 0017-00100-0050 Shaft 0K47-01154-0000 Bolt 0017-00101-1048 Belt Idler Pulley(2) 0017-00009-1147 Bolt(2) 0017-00101-1089 0017-00103-0025 Belt Guide Pulley(2) AK63-00008-0000 Bolt - 0017-00101-1722 Nut - 0017-00143-0025 10Page 10 of 13...
  • Page 11 Stepper SC8500 PCB and Resistor Resistor AK47-00037-0000 Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92239-B000 PCB Bracket 0K47-01087-0000 Phillips Screw(4) 0017-00101-0823 11Page 11 of 13...
  • Page 12 Stepper SC8500 Bullhorns and Telemetry Polar Cap 0K47-01075-0000 Isolator 0K36-01059-0002 All Units EXCEPT ENG/ENG Screw Polar Receiver 0017-00101-1723 SK40-00045-0001 All Units EXCEPT ENG/ENG 12Page 12 of 13...
  • Page 13 Stepper SC8500 Cables Description Part Number Domestic 120/60 Battery Charge w/Cord 118E-00001-0148 Universal Battery Charger w/o Line Cord 118E-00001-0147 Line Cord 220V/60Hz 0017-00003-0704 Line Cord 100V/50Hz Line Cord 240+ 0017-00003-0918 Line Cord 220V/50Hz 0017-00003-0691 Line Cord 200V/50Hz Line Cord 230V/50Hz...
