  • Page 1 5 STACK MULTI-JUNGLE (SM51) WITH 2 ADJUSTABLE PULLEYS UNPACKING AND ASSEMBLY INSTRUCTIONS M051-K50-B112...

  • Page 2: Assembly Time

    SM51 Unpacking & Assembly Instructions The SM51 comes partially assembled. Follow the steps below to complete the assembly. WARNING: COMPONENTS OF THE SM51 ARE LARGE AND HEAVY. USE CAUTION WHEN ASSEMBLING THIS MACHINE. MATERIALS AND TOOLS REQUIRED FOR ASSEMBLY 1/2”, 3/8”, 5/8” & 9/16”...
  • Page 3 3. Remove the items in the parts box. These items are shown in Figure 1. A. Remove the bolts bag. B. Remove the parts shown below. Parts that are used to build the SM51 are described in the section HARDWARE at the end of these instructions.

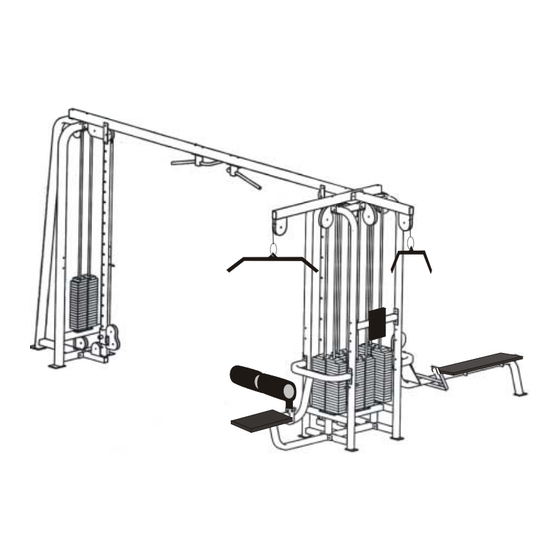

  • Page 4 SM51 Unpacking & Assembly Instructions ASSEMBLY Figure 2 shows an assembled SM51. Figure 2. SM51 main components (seats and cables removed for clarity). 1. 1 stack cell 2. 4 stack cell 3. Lat bench 4. Connecting beam 1. Place the two weight “cells” in their final resting spots. The cells will be approximately 11’4”...
  • Page 5 SM51 Unpacking & Assembly Instructions Figure 3. Set the weight stack cells. 2. Bolt on the teardrop pulleys above the benches (see Figure 4) on the 4 stack cell using two 3/8” x 2-3/4” hex head bolts (used to bolt the cross beam to the cross members and the adjustable pulley tops to the top beams).
  • Page 6 SM51 Unpacking & Assembly Instructions Figure 5. Configuration for 2-3/4” and 3” bolts. 3. Bolt on the connecting beam (part 4 from Figure 2) using a 5/8” socket with extension and combination wrench, to the cells using two of the large 7/16” x 6” bolts, 7/16”...
  • Page 7 A. Remove the tricep back rest bolts using a 9/16” socket and combination wrench (see Figure 9). B. Unbolt the top plate and remove the guide rods using a 9/16” socket and combination wrench (see Figure 9). SM51 Unpacking & Assembly Instructions...
  • Page 8 SM51 Unpacking & Assembly Instructions Figure 9. Remove the tricep back rest, the top plate and the guide rods. C. Prepare the weight stack- add bumpers to bottom, insert guide rods, put pull pin in bottom plate of stack. Figure 10. Putting on the weight stacks.
  • Page 9 Figure 12. Leave the pulleys out since you will need to have them out when the cable is routed. Figure 12. Bolt the floating pulley into the 190 lb weight stack (away from the tricep pushdown weight stack). SM51 Unpacking & Assembly Instructions...
  • Page 10 SM51 Unpacking & Assembly Instructions 7. Mount adjustable pulley brackets. When shipped, the adjustable pulley brackets look like the ones shown in Figure 13. The bolts need to be removed and the bracket needs to be positioned so that the top of the bracket is in the top hole as shown by the arrow in Figure 13.
  • Page 11 SM51 Unpacking & Assembly Instructions Figure 15. Bolt the benches to the frame.

  • Page 12: Installing The Cables

    SM51 Unpacking & Assembly Instructions INSTALLING THE CABLES The SM51 uses five cables. There are three different types of cable used on the SM51. They are: 1. Adjustable crossover cables (ball end cables) (2). 2. Low row cable (the long cables) (1).
  • Page 13 SM51 Unpacking & Assembly Instructions ADJUSTABLE CROSSOVER CABLE ROUTING Once you’ve removed the pulleys as described previously, route the adjustable crossover cable on the 4-stack cell as shown in Figure 17. The crossover cable is routed at the factory on the 1 stack cube (shown at right in Figure 17).

  • Page 14: Low Row Cable Routing

    SM51 Unpacking & Assembly Instructions Figure 18. Adjustable crossover cable end detail. Using a 7/8” wrench, tighten the jam nut onto the adjustable pulley threads as shown in Figure 18. Place a rubber cap on the top of the cable as shown in Figure 18 (right).
  • Page 15 Figure 20. Screw the cable into the weight stack. LAT PULLDOWN CABLE ROUTING Route the lat pulldown cable as shown in Figure 21. Screw the cable into the weight stack as shown previously in Figure 20. Figure 21. Lat pulldown cable routing. SM51 Unpacking & Assembly Instructions...
  • Page 16 SM51 Unpacking & Assembly Instructions TRICEP PUSHDOWN CABLE ROUTING Route the tricep pushdown cable as shown in Figure 22. Screw the cable into the weight stack as shown previously in Figure 20. Figure 22. Tricep pushdown cable routing.
  • Page 17 SM51 Unpacking & Assembly Instructions HARDWARE ½ ½ ½ ½ ½ ½ Hardware Figure 1. Assembly Parts.
  • Page 18 SM51 Unpacking & Assembly Instructions The parts shown in Hardware Figure 1 are used to assemble the SM51. They are: A. 7/16” x 6” hex head bolt (used to bolt the tricep top beam, adjustable crossover top beam, lat top beam, and connecting beam to the tops of the cells) B.
  • Page 19 Hardware Figure 3. Cable jam nut. M. Cable jam nut Hardware Figure 4 shows the types of cables that are included with the SM51. Hardware Figure 4. Cables. N. Lat pulldown cables (same as tricep cable) (1) P.
  • Page 20 SM51 Unpacking & Assembly Instructions S. Teardrop pulleys (bolt on above lat and seated row bench) (2) T. 56” Lat top (bolt to top of 4-stack cell with pulleys above lat bench) (1) U. 29” Tricep top (bolt on to 56” lat top bar) (1)
  • Page 21 SM51 Unpacking & Assembly Instructions Hardware Figure 6. Weight stack rubber bumpers. W. Weight stack rubber bumpers (inserted under weight stacks) (8) Hardware Figure 7. Floating pulleys. X. Floating pulley (bolt to 190 lb weight stack other than tricep pushdown stack) (1)

  • Page 22: Parts List

    SM51 Unpacking & Assembly Instructions PARTS LIST Part # Main components Cables, caps & nuts 0017-00042-0936 0017-00103-0234 0017-00101-1408 0017-00101-1408 0017-00101-1422 0017-00101-1561 6” bolt hardware 0017-00101-1561 0017-00104-0363 0017-00104-0366 0017-00103-0233 2-3/4” & 3” bolt hardware 0017-00101-1422 0017-00101-1408 0017-00042-0969 0017-00104-0313 0017-00104-0368 0017-00103-0217 Pulleys and bumpers...
