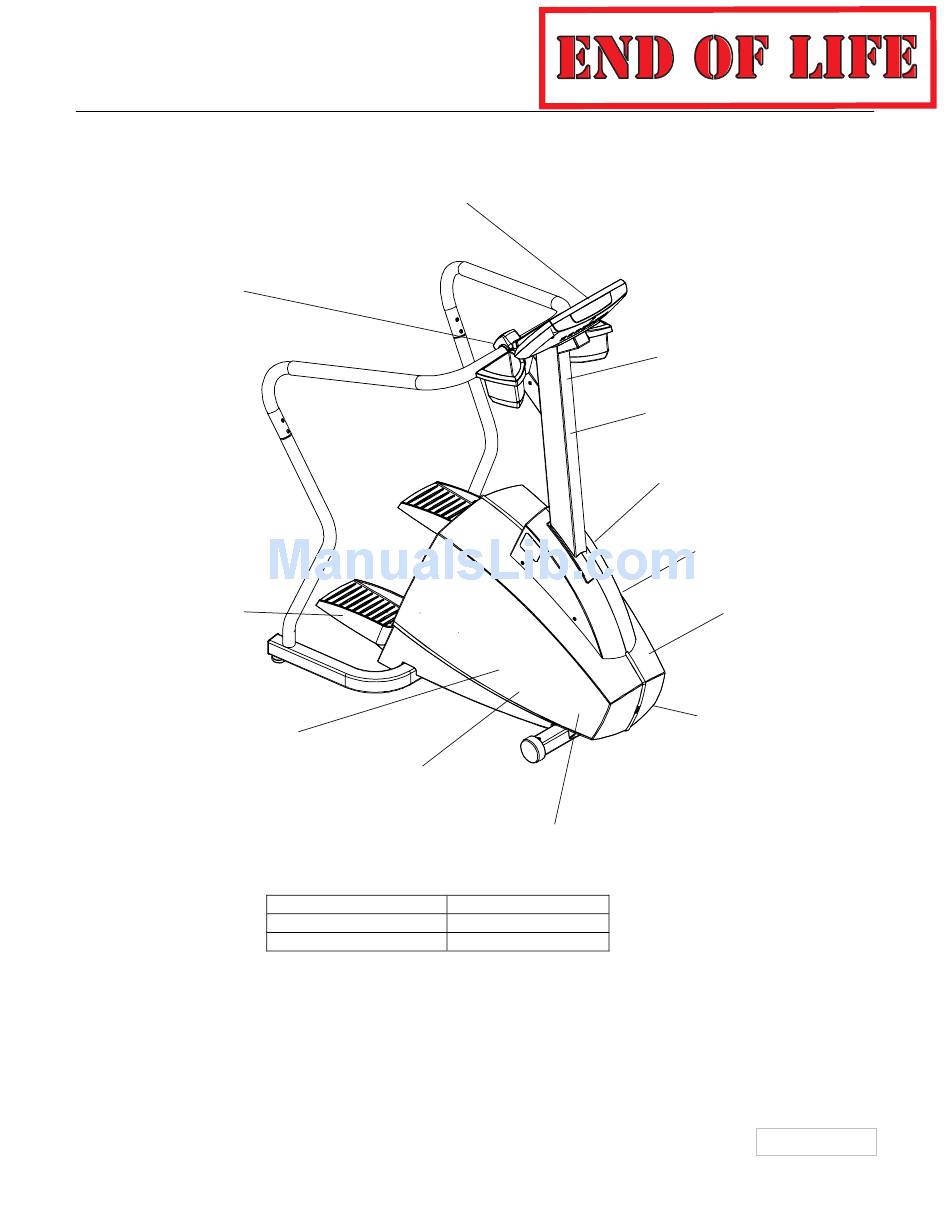

Stepper SC8500 - S/N HSG100000
General Assembly
Polar Receiver
Assembly
Pedal Assembly
Alternator
Assembly
Console Overlay
Bezel Assembly
Main Drive Pulley
and Clutch
Operation Manual
Service Manual
Hardware Bag
Crossover Pulley
M051-00K20-A311
M051-00K47-A013
AK47-00080-0000
Frame Componets
Cable
Guide Rollers
Clutch Assembly - LT
Shrouds
PCB/Resistor
revised 12 Mar 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC8500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness SC8500

Summary of Contents for Life Fitness SC8500

  • Page 1 Stepper SC8500 - S/N HSG100000 General Assembly Console Overlay Bezel Assembly Polar Receiver Assembly Frame Componets Cable Guide Rollers Clutch Assembly - LT Shrouds Pedal Assembly Alternator PCB/Resistor Assembly Main Drive Pulley and Clutch Crossover Pulley Operation Manual M051-00K20-A311 Service Manual...
  • Page 2 Stepper SC8500 - S/N HSG100000 Console Overlay Bezel Assembly Upper Overlay Console Board - Upper A084-92220-A003 Console Case Assembly Lower Overlay AK63-00121-0000 Phillips Pan Screws(13) 0017-00101-1650 Battery Door 0K63-01029-0000 Console Assembly Overlay Bezel Upper Overlay Lower Overlay AK47-00017-0001 Eng Met...

  • Page 3: Frame Components

    Stepper SC8500 - S/N HSG100000 Frame Components Console Screws Optional Accessory Tray 0017-00101-1253 GK63-00002-0004 Screws 0017-00101-1253 Handlebar AK47-00057-0000 Mono-Column AK47-00066-0000 Mono-Column Decal 0K47-01125-0000 Vertical Handrail 0K47-01030-0000 End Cap 0K47-01156-0000 Leg Levelers AK61-00035-0000 Handrail Bolt Jam Nut 0017-00101-0933 0017-00103-0273 Wheel w/Bearings...
  • Page 4 Stepper SC8500 - S/N HSG100000 Shrouds Mono-Column Shroud AK47-00083-0000 Phillips Pan Screw(2) 0017-00101-1242 Grommets 0017-00042-0754 Phillips Pan Screw(2) 0017-00101-1735 Center Shroud 0K47-01165-0001 Left Shroud w/Decal AK47-00064-0002 Right Shroud Cover Rail Bracket AK47-00064-0001 0K47-01146-0000 Bracket Screw 0017-00101-1732 Track Cover Plate Pedal Tube 0K47-01128-0000 Decal;...

  • Page 5: Pedal Assembly

    Stepper SC8500 - S/N HSG100000 Pedal Assembly Track Roller 0K47-01084-0000 Roller Sleeve(2) Center Track Roller 0K47-01084-0000 0K47-01084-0000 Side Roller Hex Bolt(4) Retainer, Bottom 0017-00101-1731 0K35-01144-0001 Sleeve Roller(2) Retainer, Top 0K47-01136-0000 0K35-01144-0003 Allen Screw Track Roller(4) 0017-00101-1348 w/Busshing Assy Nut - 0017-00103-0052...
  • Page 6 Stepper SC8500 - S/N HSG100000 Main Drive Pulley and Clutch Main Drive Pulley/Shaft AK47-00007-00000 E-ring 0017-00100-0107 Thrust Washers Thrust Washer(3) 0K47-01104-0000 Flat Washer 0K47-01105-0000 Right Drive Clutch Assembly AK47-00043-0001 Main Drive Belt 0K47-01054-0000...
  • Page 7 Stepper SC8500 - S/N HSG100000 Clutch Assembly - LT Thrust E-Ring Left Pulley Clutch Washer AK47-00043-0002 E-Rings(2) 0017-00100-0107 Flat Washers(3) 0K47-01105-0000 Thrust Flat Washer Washer...

  • Page 8: Crossover Pulley Assembly

    Stepper SC8500 - S/N HSG100000 Crossover Pulley Assembly Crossover Pulley Assy AK47-00007-0000 Frame Lock Nut 0017-00103-0025 0017-00103-0026 Washer 0017-00104-0043 Magnet 118E-00001-0124 Bolt 0017-00101-1717 Screw Plate 0017-00101-1713 0K47-01056-0000 Tensioning Bolt 0017-00101-0928 Adjustable Bracket 0K47-01052-0000 Auto Start Switch Bolts(2) and Cable 0017-00101-1048...

  • Page 9: Alternator Assembly

    Stepper SC8500 - S/N HSG100000 Alternator Assembly Alternator w/Flywheel Alternator Flywheel AK47-00038-0000 0K47-01069-0000 Alternator Pivot Bolt Locking Nut 0017-00101-0956 0017-00103-0117 Washer 0017-00104-0044 Tensioning Bracket 0K47-01053-0000 Tensioning Bracket Bolt 0017-00101-0986 Alternator Belt 0K47-01106-0000...

  • Page 10: Guide Rollers

    Stepper SC8500 - S/N HSG100000 Guide Rollers Spring Guide Pulley(2) 0K47-01066-0000 Snap Ring(6) 0017-00100-0050 Shaft 0K47-01154-0000 Bolt 0017-00101-1048 Belt Idler Pulleys (2) 0017-00009-1147 Bolts (2) 0017-00101-1098 0017-00103-0025 Belt Guide Pulleys (2) AK63-00008-0000 Bolt 0017-00101-1722 0017-00103-0025...

  • Page 11: Pcb And Resistor

    Stepper SC8500 - S/N HSG100000 PCB and Resistor Resistor AK47-00037-0000 Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92239-0000 PCB Bracket 0K47-01087-0000 Phillips Screw(4) 0017-00101-0823...
  • Page 12 Stepper SC8500 - S/N HSG100000 Bullhorns and Telemetry Polar Cap 0K47-01075-0000 Isolator 0K36-01059-0002 All Units EXCEPT ENG/ENG Screw Polar Receiver 0017-00101-1723 SK40-00045-0001 All Units EXCEPT ENG/ENG...
  • Page 13 Stepper SC8500 - S/N HSG100000 Cable Description Part Number Domestic 120/60 Battery Charge w/Cord 118E-00001-0165 Universal Battery Charger w/o Line Cord 118E-00001-0166 Line Cord 220V/60Hz 0017-00003-0704 Line Cord 100V/50Hz Line Cord 240+ 0017-00003-0918 Line Cord 220V/50Hz 0017-00003-0691 Line Cord 200V/50Hz...
