Page 1: Parts List

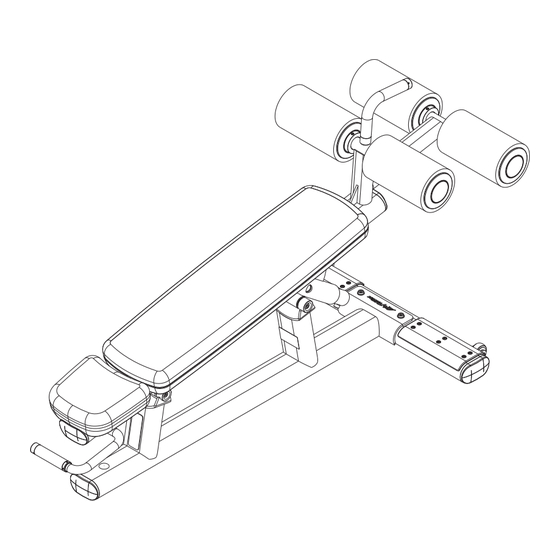

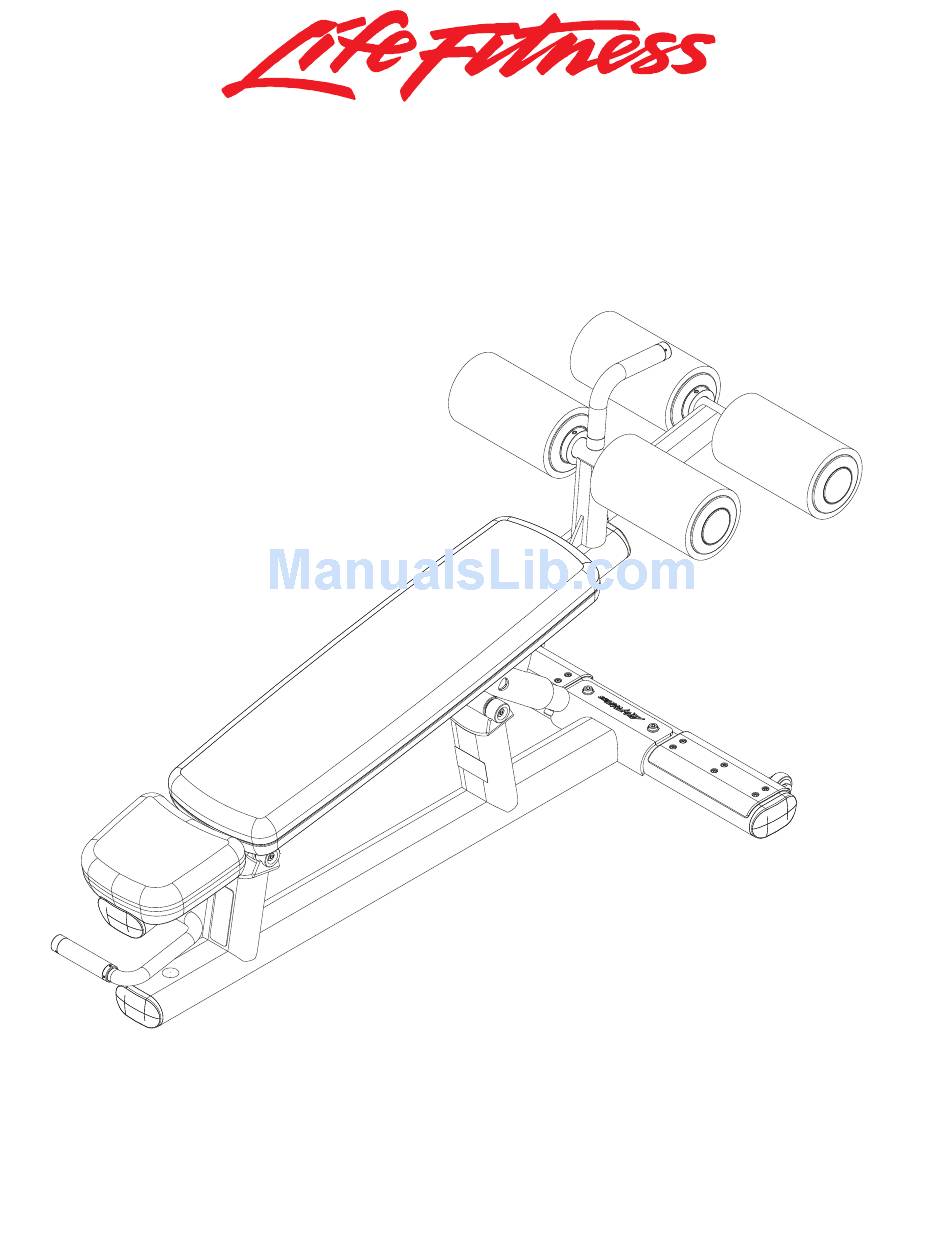

SIGNATURE SERIES SADB SIGNATURE ADJUSTABLE DECLINE BENCH Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
SADB SIGNATURE ADJUSTABLE DECLINE BENCH CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND BASE FRAME ASSEMBLY BACK ASSEMBLY BACK ASSEMBLY LEGEND BASE ASSEMBLY SEAT ADJUST ASSEMBLY IMAGE ________________________________________ NOTE: SUBSTITUTE PART NUMBERS ENDING WITH ‘XX’ WITH THE REQUIRED COLOR CODES. FRAME 01 = WHITE 02 = PLATINUM 03 = BLACK... -
Page 3: Component Assembly
SADB SIGNATURE ADJUSTABLE DECLINE BENCH COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
SADB SIGNATURE ADJUSTABLE DECLINE BENCH COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 82390XX PTD ASSY, SADB, BASE FRAME 82374XX PTD ASSY, SADB, BACK FLOV 82377XX PTD ASSY, SADB, BASE 82463XX PTD ASSY, SADB, SEAT ADJ 3256205 SCREW, M10 X 1.5 40MM ZN 3256202 SCREW, M10 X 1.5 25MM ZN 3256204 SCREW, M10 X 1.5 35MM ZN 3237403 PLUG, 1"... -
Page 5: Base Frame Assembly
SADB SIGNATURE ADJUSTABLE DECLINE BENCH BASE FRAME ASSEMBLY - 82390XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 82393XX WLDMT, SADB, BASE SPRT 7800401 CAP; LRG FLOV END 7810801 PAD, RUBBER FOOT, 10-0101-006, BNR 3114407 WASHER, FLAT #10 SAE ST BZ 3239102 SCREW, M5 X .8 X 12 PHL PAN TT ST BZ 3232405 RNG, BRE .352,5100-37,ST,PP,B 7656301 WHEEL, 2 OD X 3/8 ID RUBBER... -
Page 6: Back Assembly
SADB SIGNATURE ADJUSTABLE DECLINE BENCH BACK ASSEMBLY - 82374XX ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Back Assembly Legend
SADB SIGNATURE ADJUSTABLE DECLINE BENCH BACK ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 82373XX WLDMT, SADB, BACK FLOV 3114407 WASHER, FLAT #10 SAE ST BZ 7800401 CAP; LRG FLOV END 7810801 PAD, RUBBER FOOT, 10-0101-006, BNR 3239102 SCREW, M5 X .8 X 12 PHL PAN TT ST BZ 7662901 CAP, GRIP 1.25 OD 7662801 RING, GRIP 1.25 OD 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO... -
Page 8: Base Assembly
SADB SIGNATURE ADJUSTABLE DECLINE BENCH BASE ASSEMBLY - 82377XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 82377XX PTD ASSY, SADB, BASE 8106101 LABEL LIFE FIT 13/16 X 4-3/8" SG, 10-0101-016, BNR 7002401 LABEL; V WARNING 4.5 X 1.625 8106801 LABEL, SERIAL NUMBER, LARGE, 10-0123-001, BNR 7800401 CAP;... -
Page 9: Seat Adjust Assembly
SADB SIGNATURE ADJUSTABLE DECLINE BENCH SEAT ADJUST ASSEMBLY - 82463XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 82397XX WLDMT, SADB, SELECTOR TUBE 82463XX PTD ASSY, SADB, SEAT ADJ 3104901 BEARING, FLG .75 ID X 1.00 OD 7351501 SPRING; PULL PIN LARGE 8039501 LABEL, WARNING, TRIANGLE, 10-0099-067, BNR 8087201 BUSHING, SLIP TUBE, PLASTIC, 55.3MM OD X 45.2MM ID, BNR 7351302 PIN, PULL X 3.375... -
Page 10: Image
SADB SIGNATURE ADJUSTABLE DECLINE BENCH IMAGE ________________________________________ Page 10...
