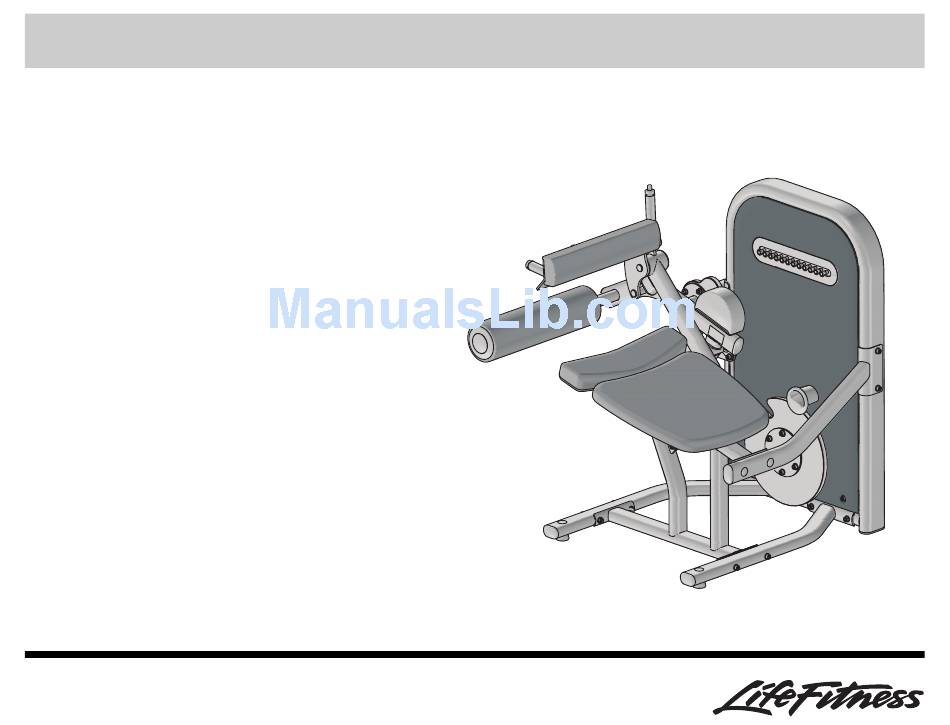

Page 1: Seated Leg Curl
Seated Leg Curl Assembly Instructions... -
Page 2: Table Of Contents
Seated Leg Curl Assembly Instructions Item Description Front Brace Rear Brace Tower M10 x 130mm Bolt 3/8” Flat Washer M10 Nylock Nut Seat Frame M10 x 90mm Bolt Top Brace M10 x 35mm Bolt M10 x 70mm Bolt Main Pivot Bracket... -
Page 4: M10 X 130Mm Bolt
Seated Leg Curl Assembly Instructions 1. LOOSELY assemble the FRONT BRACE (1) and REAR BRACE (2) to the TOWER (3) using four M10 X 130mm BOLTS (4), eight 3/8" SAE WASH- ERS (5) and four M10 NYLOCK NUTS (6) as shown. -
Page 5: Output Cam
6. Assemble the OUTPUT CAM (15), OUTPUT PLATE (16), and OUTPUT RING (17) using three M10 X 45mm BOLTS (18) and three 3/8" SAE WASHERS (5) as shown. Tighten the BOLTS securely. 7. Assemble the REAR SHROUD (19) and FRONT SHROUD (20) to the TOWER (3) using four M10 X 20mm BOLTS (21), four 3/8"... -
Page 6: Long Spacer
Seated Leg Curl Assembly Instructions 10. Attach the KNEE SUPPORT (26) to the MAIN PIVOT BRACKET (12) and SEAT FRAME (7) using seven M10 X 30mm BOLTS (27), fourteen 3/8" SAE WASHERS (5) and seven M10 NYLOCK NUTS (6) as shown. Tighten the BOLT and NUTS securely. -
Page 7: Medium Spacer
13. Insert the MEDIUM SPACER (33), two BEARINGS (34) and one SHORT SPACER (35) into the KNEE SUPPORT (26) as shown. Carefully insert the KNEE HANDLES (36) into the KNEE SUPPORT and secure it with one M10 X 25mm HEX BOLT (37) and one FENDER WASHER (48). Tighten the BOLT securely. -
Page 8: Cable Retaining Plate
BOLT and NUT. Do not over-tighten the BOLTS. 20. Install HOLE PLUGS in all open bolt holes. 2006 Life Fitness, a division of Brunswick Corporation. All rights reserved. © Life Fitness is a registered trademark of Brunswick Corporation.
