Summary of Contents for Life Fitness Squat

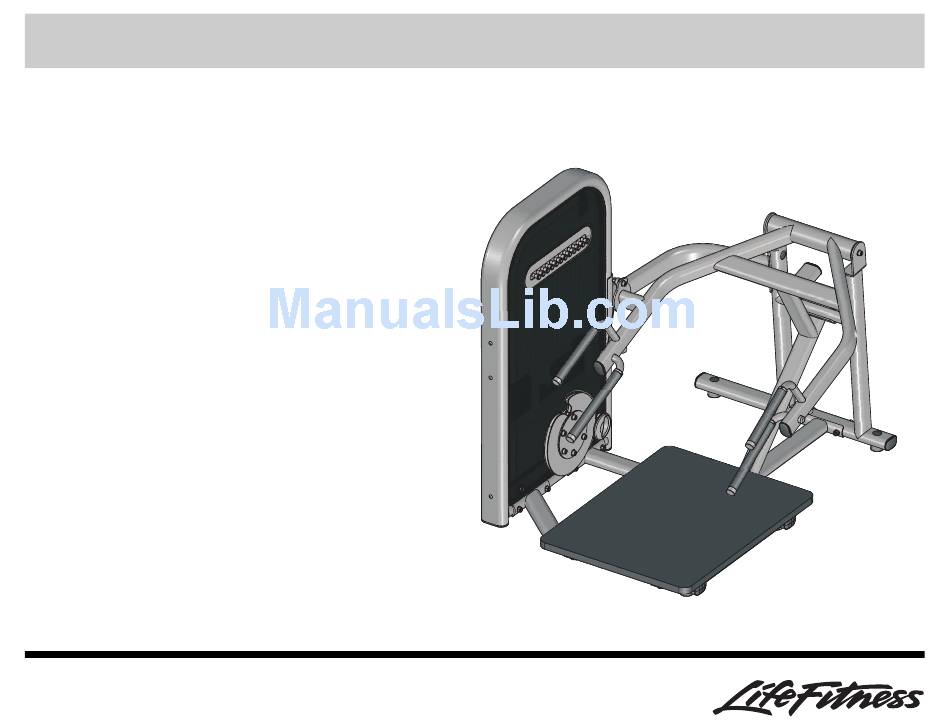

- Page 1 Squat Assembly Instructions...
-
Page 2: Assembly Instructions
Squat Assembly Instructions Item Description Platform Frame Tower M10 x 130mm Bolt 3/8” Flat Washer M10 Nylock Nut Center Brace M10 x 90mm Bolt Upright M10 x 25mm Bolt Upper Brace M10 x 70mm Bolt Pivot Shaft Long Spacer Bearing... - Page 4 Squat Assembly Instructions 1. LOOSELY assemble the PLATFORM FRAME (1) to the TOWER (2) using four M10 X 130mm BOLTS (3), eight 3/8" SAE WASHERS (4) and four M10 NYLOCK NUTS (5) as shown. 2. LOOSELY assemble the CENTER BRACE (6) to the PLATFORM FRAME (1) using two M10 X 90mm BOLTS (7), four 3/8"...
- Page 5 7. Assemble the OUTPUT CAM (17), OUTPUT PLATE (18), and OUTPUT RING (19) using three M10 X 45mm BOLTS (20) and three 3/8" SAE WASHERS (4) as shown. Tighten the BOLTS securely. 8. Assemble the REAR SHROUD (21) and FRONT SHROUD (22) to the TOWER (2) using four M10 X 20mm BOLTS (23), four 3/8"...
- Page 6 Squat Assembly Instructions NOTE: Some components have been removed from the illustration for clarity. 11. Assemble one M10 HEX JAM NUT (27) onto one end of the CABLE (28) approximately 1/2”. Assemble the ROD END BEARING (29) to the same end of the CABLE until it meets the M10 HEX JAM NUT.
- Page 7 16. Attach the PLATFORM (35) to the PLATFORM FRAME (1) using four M10 X 25mm BOLTS (9) and four 3/8" SAE WASHERS (4) as shown. Tighten the BOLT securely. 17. Install HOLE PLUGS in all open bolt holes.
- Page 8 Squat Assembly Instructions 2006 Life Fitness, a division of Brunswick Corporation. All rights reserved. © Life Fitness is a registered trademark of Brunswick Corporation. TCSL 6.09.06 8061101 RevA-2...
