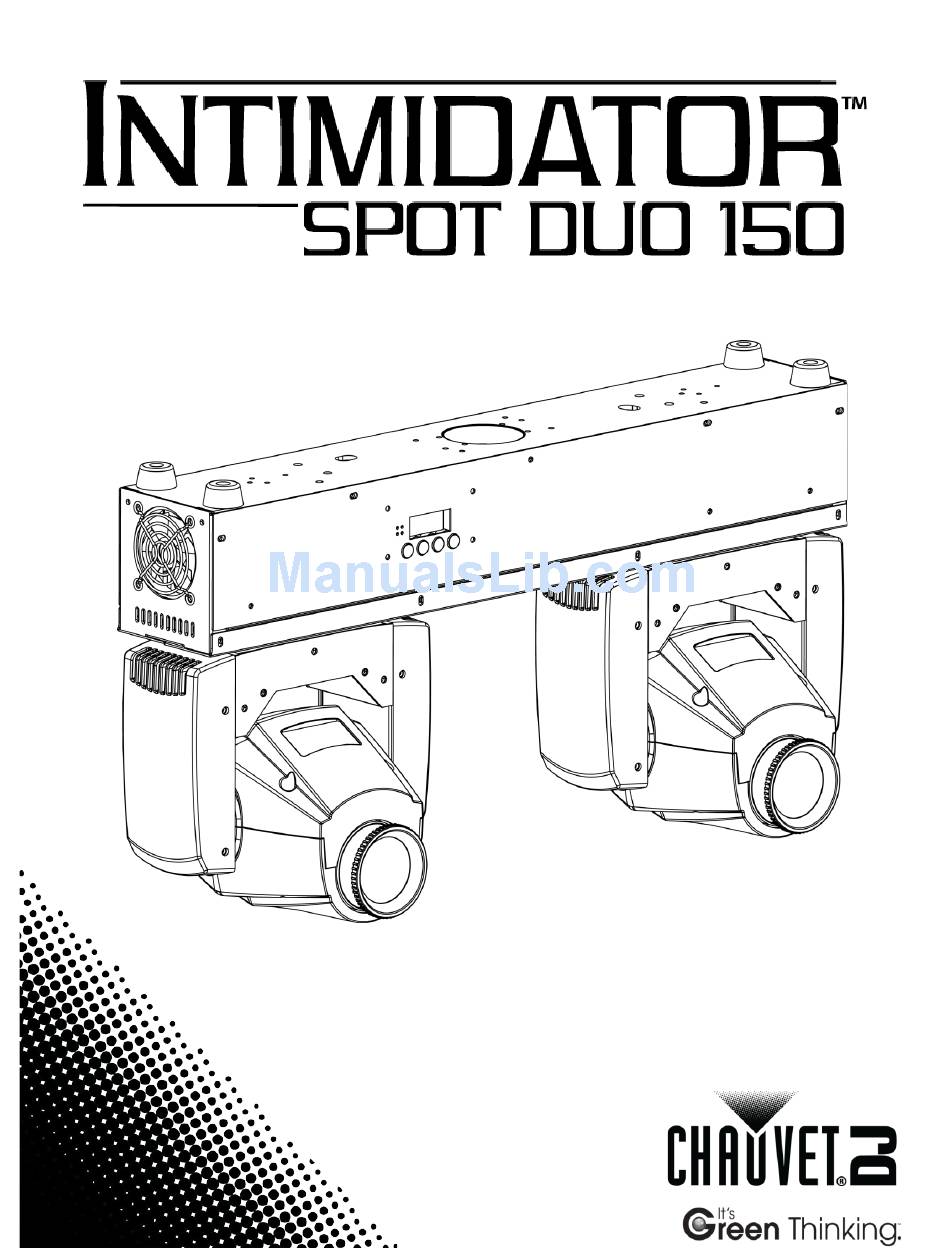

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................4 What Is Included ..........................4 Unpacking Instructions ........................4 Claims ............................... 4 Text Conventions ..........................4 Symbols ............................4 Disclaimer ............................4 Product at a Glance .......................... 5 Safety Notes ............................. 5 2. - Page 3 Product Maintenance ........................24 6. Technical Specifications ....................25 Returns ............................26 Contact Us ........................27 Intimidator™ Spot Duo 150 User Manual Rev. 1 Page 3 of 27...
-
Page 4: Before You Begin
Chauvet assumes no responsibility or liability for any errors or omissions that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions. -
Page 5: Product At A Glance
Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound-Active Replaceable Fuse User-Serviceable Master/Slave Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·... -

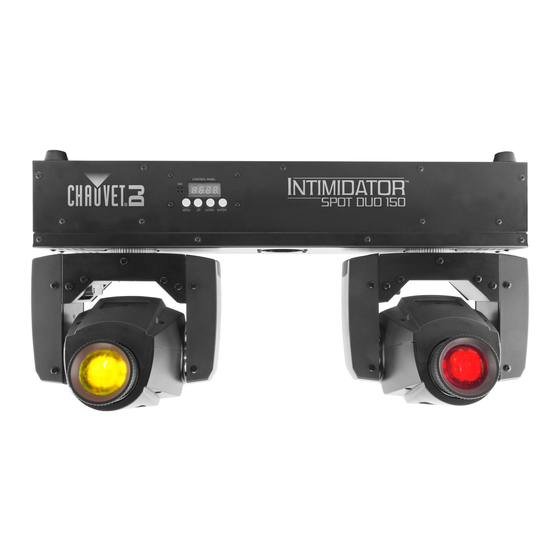

Page 6: Introduction
2. I NTRODUCTION Overview Microphone Digital Display Menu Front Panel View Buttons Focusing Lenses Safety Power In Loop Tripod Adjustment Fuse Power Out In/Out Knob Holder Moving Yokes Cooling Fan Back Panel View Page 6 of 27 Intimidator™ Spot Duo 150 User Manual Rev. 1... -
Page 7: Dimensions
Dimensions 21.5 in 546 mm 11.4 in 290 mm 7 in 179 mm Intimidator™ Spot Duo 150 User Manual Rev. 1 Page 7 of 27... -
Page 8: Setup
The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 9: Mounting
Specifications). · When mounting the product overhead, always use a safety cable (such as CH-05 from Chauvet). Mount the product securely to a rigging point, such as an elevated platform or a truss. · When rigging the product onto a truss, you should use a mounting clamp of appropriate weight capacity. -
Page 10: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function <MENU> Exits from the current menu or function Navigates upwards through the menu list and increases the <UP> numeric value when in a function Navigates downwards through the menu list and decreases the <DOWN>... -
Page 11: Configuration (Dmx)
Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. (DMX) Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 12: Dmx Channel Modes, Assignments, And Values
DMX Channel Modes, Assignments, and Values Channel Function Value Setting 20CH Pan 1 000ó255 Pan 0–360° for head 1 Fine Pan 1 000ó255 Fine panning control for head 1 Tilt 1 000ó255 Tilt 0–270° for head 1 Fine Tilt 1 000ó255 Fine tilting control for head 1 Pan 2... -
Page 13: 20Ch (Cont.)
Channel Function Value Setting 20CH (cont.) 000ó005 White 006ó011 Yellow 012ó017 Magenta 018ó023 Green 024ó029 030ó035 Cyan 036ó041 Orange 042ó047 Blue 048ó053 Light Green 054ó063 Amber 064ó069 White + Yellow Color Wheel 2 (Head 2) 070ó075 Yellow + Magenta 076ó081 Magenta + Green 082ó087 Green + Red... -
Page 14: 20Ch (Cont.)
Channel Function Value Setting 20CH (cont.) 064ó073 Gobo 9 shake with increasing speed Gobo Wheel 2 (Head 2) 074ó079 Gobo 8 shake with increasing speed 080ó085 Gobo 7 shake with increasing speed 086ó091 Gobo 6 shake with increasing speed 092ó097 Gobo 5 shake with increasing speed 098ó103 Gobo 4 shake with increasing speed... -
Page 15: 20Ch (Cont.)
Channel Function Value Setting 20CH (cont.) 000ó009 No function 010ó014 Pan/Tilt blackout 015ó019 Color blackout 020ó024 Gobo blackout 025ó029 Pan/Tilt/Color blackout 030ó034 Pan/Tilt/Gobo blackout 035ó039 Color/Gobo blackout 040ó044 Pan/Tilt/Color/Gobo blackout 045ó049 No function 050ó054 First two heads setting 055ó059 Latter two heads setting 060ó064 Cancel four heads 065ó069... -
Page 16: 17Ch
Channel Function Value Setting 17CH Pan 1 000ó255 Pan 0–360° for head 1 Fine Pan 1 000ó255 Fine panning control for head 1 Tilt 1 000ó255 Tilt 0–270° for head 1 Fine Tilt 1 000ó255 Fine tilting control for head 1 Pan 2 000ó255 Pan 0–360°... -
Page 17: 17Ch (Cont.)
Channel Function Value Setting 17CH (cont.) Dimmer 1 000ó255 Dimmer for head 1 (0–100%) Dimmer 2 000ó255 Dimmer for head 2 (0–100%) 000ó003 Light off 004ó007 Light on 008ó076 Shutter with increasing speed Shutter (Both Heads) 077ó145 Pulse strobe 146ó215 Random strobe 216ó255 Light on... -
Page 18: 17Ch (Cont.)
Channel Function Value Setting 17CH (cont.) 000ó007 No function 008ó022 Movement macro 1 023ó037 Movement macro 2 038ó052 Movement macro 3 053ó067 Movement macro 4 068ó082 Movement macro 5 083ó097 Movement macro 6 098ó112 Movement macro 7 113ó127 Movement macro 8 Movement Macros 128ó142 Movement macro 9... -
Page 19: 10Ch
Channel Function Value Setting 10CH 000ó255 Pan 0–360° for both heads Tilt 000ó255 Tilt 0–270° for both heads 000ó005 White 006ó011 Yellow 012ó017 Magenta 018ó023 Green 024ó029 030ó035 Cyan 036ó041 Orange 042ó047 Blue 048ó053 Light Green 054ó063 Amber 064ó069 White + Yellow Color Wheel (Both Heads) 070ó075... -
Page 20: 10Ch (Cont.)
Channel Function Value Setting 10CH (cont.) 000ó009 No function 010ó014 Pan/Tilt blackout 015ó019 Color blackout 020ó024 Gobo blackout 025ó029 Pan/Tilt/Color blackout 030ó034 Pan/Tilt/Gobo blackout 035ó039 Color/Gobo blackout 040ó044 Pan/Tilt/Color/Gobo blackout 045ó049 No function 050ó054 First two heads setting 055ó059 Latter two heads setting 060ó064 Cancel four heads 065ó069... -
Page 21: Configuration (Standalone)
Configuration Set the product in one of the standalone modes to control without a DMX controller. · Connect the product to a suitable power outlet. (Standalone) Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. -
Page 22: Pan Operation
Pan Operation To select whether you want the Intimidator™ Spot Duo 150 to operate with normal panning or inverted panning, do the following: Head 1: Press <MENU> repeatedly until PA1 (normal pan operation) or rPA1 (reverse pan operation) shows on the display. Use <UP>... -
Page 23: Master Auto Programs
Master Auto The Master Auto built-in programs control the actions of two Intimidator™ Spot Duo 150 units linked together by DMX data connection. A single Intimidator™ Spot Duo 150 (the Programs master) controls the actions of another Intimidator™ Spot Duo 150 (the slave). Configure the Master Auto programs in conjunction with the Slave modes as follows. -
Page 24: Technical Information
5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean the product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency. -
Page 25: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 21.5 in (546 mm) 7 in (179 mm) 11.4 in (290 mm) 18.6 lb (8.4 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power... -
Page 26: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 26 of 27... -
Page 27: Contact Us
Outside the U.S., United Kingdom, Ireland, or Mexico, contact the dealer of record and follow their instructions to request support or to return a product. Visit the Chauvet website for contact information. Intimidator™ Spot Duo 150 User Manual Rev. 1...
