Deluxe Inversion Table
Model IT 9300-E
CAUTION:
WARNING: Do not use this
inversion table without a
physician's approval.
Do not let children use the
inversion table unsupervised.
Read all instructions carefully
before using.
Tighten all bolts before using
equipment.
Leave adequate space to
properly invert.
.
Questions/ Comments
PLEASE DO NOT CONTACT THE
STORE
Elite Fitness is committed to
providing the very best of quality
and customer satisfaction for all of
the products we distribute. If for
any reason , you are dissatisfied
with the product you have
purchased or need assistance in
any way, please do not hesitate to
contact our knowledgeable support
623-888-6379
staff at:
Mon.-Fri 9:00 am –5:00 pm Mountain Time
Photo may differ from actual product
1
Owner's Manual
Advertisement
Related Manuals for Elite Fitness IT 9300-E
Summary of Contents for Elite Fitness IT 9300-E
- Page 1 Leave adequate space to properly invert. Questions/ Comments PLEASE DO NOT CONTACT THE STORE Elite Fitness is committed to providing the very best of quality and customer satisfaction for all of the products we distribute. If for any reason , you are dissatisfied...
- Page 2 Fitness Customer Service Number at 623-888-6379 for assistance in the repair or replacement of the product or any covered part. Elite Fitness will repair or replace, at its own option, the product or any covered part, except that this warranty does not cover damage caused by accident ( including transit) , or repairs or attempted repairs by any person not authorized by Elite Fitness, or by vandalism, misuse, abuse, or alteration.
- Page 4 Parts Identifier...
- Page 5 Parts Identifier...
- Page 6 Exploded View...
- Page 7 Base Frame and Handlebar Assembly STEP 1- Base Frame Unfold Top Base Frame Left ( 1-L) and insert Bottom Base Frame Left ( 2 &3) along with Support Tube Front (4) and Support Tube Rear (5) using Bolts (15) and Bolts (18) Repeat for Right Side of Frame as shown.
- Page 8 Handlebar Assembly Rear Front STEP 2 Attach the Handlebars (6) to the rear side of Top Base Frames ( 1-L & 1-R) using 4 Bolts (15), 4 Washers (16), and 2 Nuts (17). Insert Ball Pin (21) into hole on Top Base Frame ( 1-R) TIGHTEN ALL BOLTS and NUTS AT THIS TIME...
- Page 9 Backrest Support Tube Assembly Short Side Front Rear Rotating Plates STEP 3 Attach Backrest Support Frame (7) to the rotating plates of the Top Base Frames (1-L & 1-R) using 4 Bolts (20) 4 Washers (16) and 4 Nuts (17). Note: Short Side of Back Rest Support Frame should face to the Front.
- Page 10 Backrest Assembly to Base Frame STEP 4- Connecting Backrest Pad and Headrest Attach the Backrest Pad (8) to the completed Backrest Tube Assembly using 4 Bolts (9) and 4 Washers (16) as shown. NOTE: TIGHTEN ALL BOLTS & NUTS AT THIS TIME...
- Page 11 STEP 5-Body Height Adjustment Tube and Rollers Install Foot Rest Plate (13) into Body Height Adjustment Tube (10) using Bolt (27) Washer (28) and Lock Nut (29). Front Back Pull out Adjustable Leg Tube and position horizontally as shown. ( This will have spring pre- assembled inside Tube from factory which should not be removed) Slide 2 Foam Leg Rollers (25) over Leg Tube ( 11) and cap ends with 2- Round End Caps (26) Insert Leg Tube Rear (12) through Back section of Height Adjustment Tube (10) and secure...
- Page 12 STEP 6-Final Assembly Slide Completed Height Adjustment Tube (10) into Backrest Support Tube ( 7) and lock into place using Height Adjustment Knob (23). Ball Pin (22) is used to lock Height Adjustment Tube in place when desired Height Adjustment is obtained. Install Rear Safe T Bar ( 32) in desired inversion stop position Note: This product is designed to adjust from 4’10”...
- Page 13 Final Assembly Make Sure All Nuts Bolts and Screws are Completely Tightened Before Use. Extreme Products Group 6635 W. Happy Valley Rd. Suite A-104, #213 Glendale, AZ 85310 Phone: 623-888-6379 Fax: 623-434-9100 www.extremeproductsgroup.com...
- Page 14 To reduce the risk of serious injury, read all important precautions instructions and warnings in this manual before using the Inversion System. Elite Fitness, or Extreme Products Group assumes no responsibility for personal injury or property damage sustained by or through the use of the Inversion System.
- Page 15 USAGE GUIDELINES INVERSION SAFE T BAR Familiarize yourself with the Inversion Safe T Bar located on the Back of the Inversion Table Frame. The positioning of the Bar will determine the degree of Inversion that you are comfortable with. The 3 selections are: Top Position -Slight Inversion Middle Position-Moderate Inversion...
- Page 16 USAGE GUIDELINES- Securing Feet and Ankles ALWAYS WEAR ATHLETIC SHOES WITH LACES TIGHT WARNING: TO HELP SECURE YOUR FEET IN THE INVERSION SYSTEM, AND FOR FOOT PROTECTION WHILE EXERCISING. ALWAYS MAKE SURE THAT THE ANKLE LOCK IS SECURED SNUGLY AGAINST YOUR ANKLES AND THAT THE LONG KNOB IS FULLY TIGHTENED BEFORE YOU USE THE INVERSION SYSTEM Step 1- Expand the front rollers by pulling up on the...
- Page 17 USAGE GUIDELINES Finding the Proper Height and Weight Adjustment With head flat on back pad, slowly raise one arm up toward the ceiling. If the bed starts to invert backward, the height adjustment should be correct. If the bed does not start to invert, adjust the center slider arm upward one position at a time, until the bed starts to invert backward.
- Page 18 ELITE FITNESS Distributed By: Extreme Products Group 6635 W. Happy Valley Rd. Suite A-104, #213 Glendale, AZ 85310 Phone: 623-888-6379 Fax: 623-434-9100 www.extremeproductsgroup.com Note: For all parts requests, please visit our web site: www.extremeproductsgroup.com...
Need help?
Do you have a question about the IT 9300-E and is the answer not in the manual?
Questions and answers

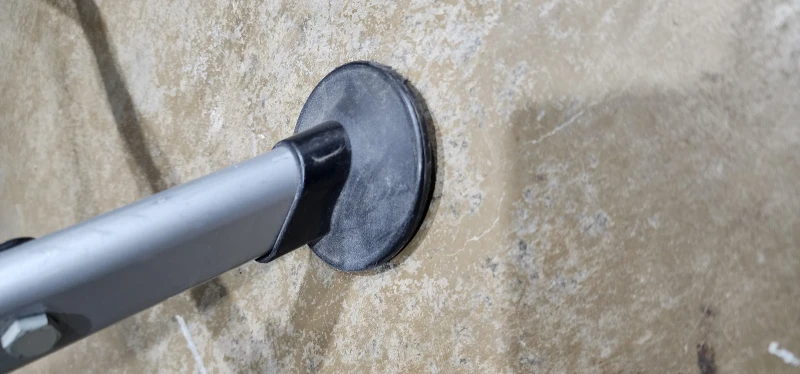

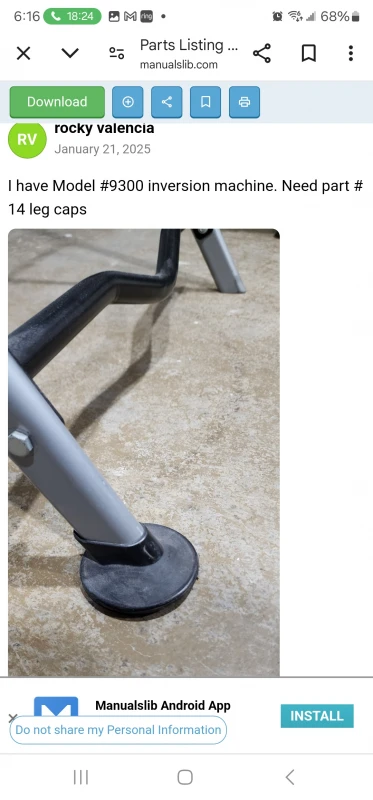

I have Model #9300 inversion machine. Need part # 14 leg caps

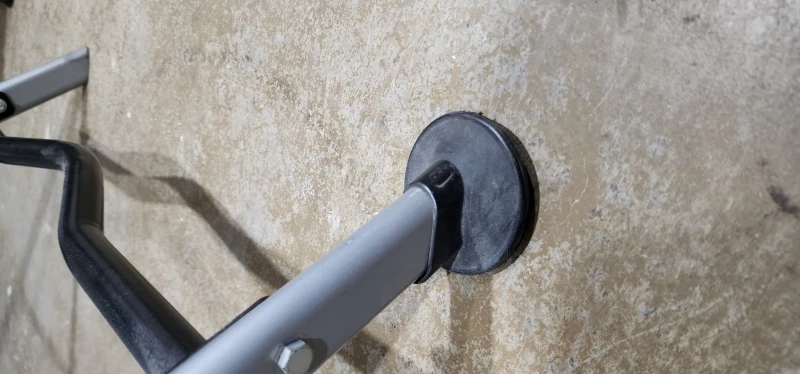

Need 1 non marring floor cap
