ASSEMBLY MANUAL
Record serial number
Elite Rivale+ Rowing Machine

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rivale+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elite Fitness Rivale+

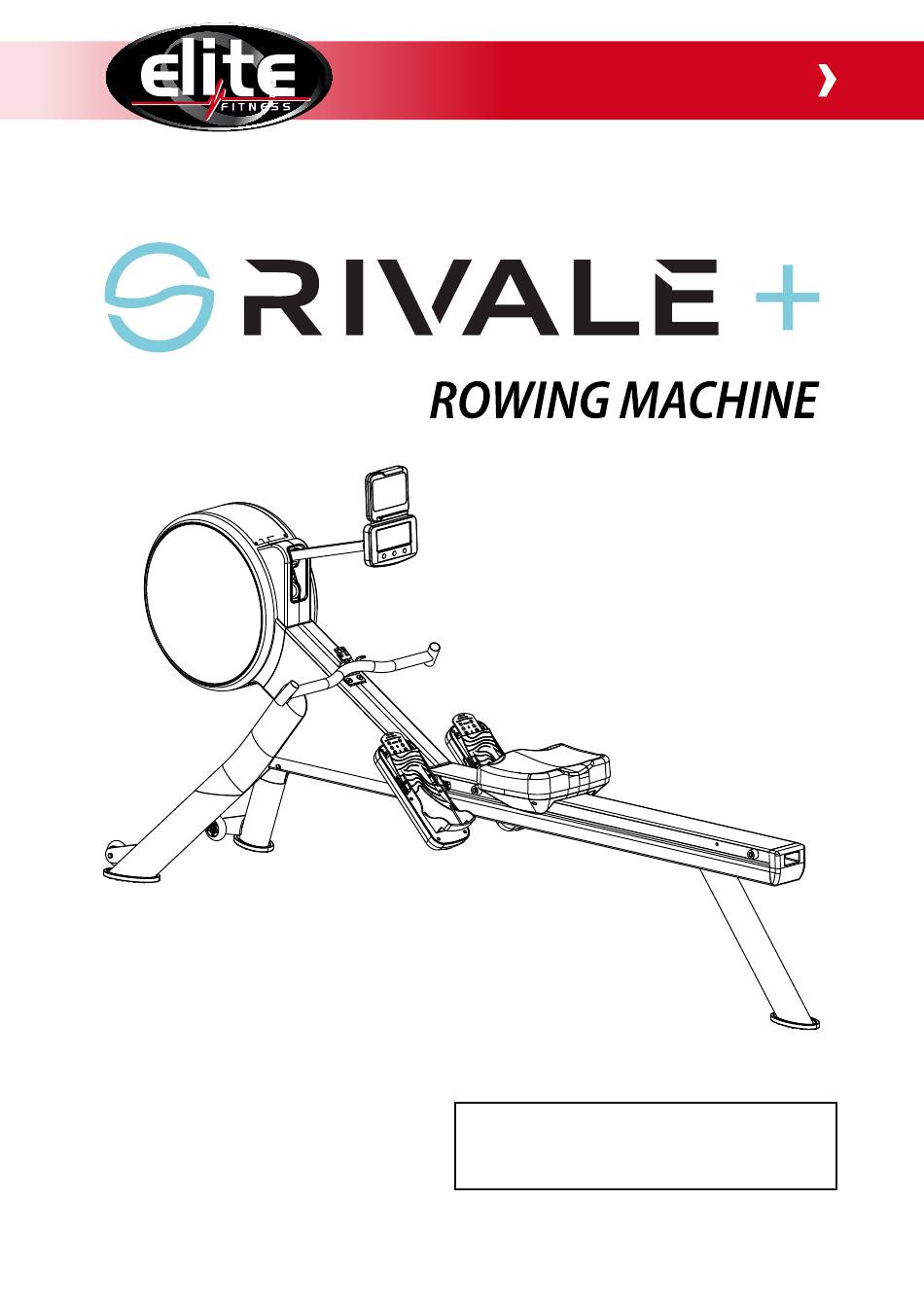

  • Page 1 ASSEMBLY MANUAL Record serial number Elite Rivale+ Rowing Machine...
  • Page 2 Doing so will help to insure that you get the most out of your SERVICE & WARRANTY For service and warranty assistance please visit: (09) 258 9067 Service. (09) 258 9070 Parts. Elite Fitness HQ 28 Morrin Roas St Johns, Auckland, New Zealand 0800 2 438 348...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE MACHINE not be applicable to products being subjected to professional use or products being used in a — — — — — — — — CONSULT A PHYSICIAN IMMEDIATELY. — — —...
  • Page 4 A) This product has been tested in accordance with the requirements of EN 957-1/A1, EN 957-5, serious injury PRODUCT SPECIFICATIONS User Weight Capacity: 120 kg Dimensions: 250 x 55 x 118 cm Shipping Weight: 51.5 kg Net Weight: 43 kg Power Requirements: 220-240 V SKU#:...
  • Page 5 PART LIST Before Assembly • A�er opening the carton, check all parts/components according to the parts list. Make sure all parts/components are present correctly before assembly • Do not firm �ghten all bolts/nuts un�l the machine is fully assembled. #3 117 x 60 x 48 1PC #45 110 x 100 x 30.5 1PC STEP 3 STEP 4...
  • Page 6 PART LIST Display 42L/R Aluminum guiding rail cover L/R Display seat assembly Aluminum guide rail Display bo�om cover Nut plate 2 Cross pan head screw M5*20 Aluminum guide rail rear cover End cap Cross pan head self-drilling screw ST4.2 Inner hex pan head bolt M10*80*20*S6 Rear stabiliser assembly Ipad holder Saddle cover...
  • Page 7 PART LIST Small belt wheel Power extension wire Aluminum ring Adaptor Cross countersunk screw ST4.2 Pressing spring Belt wheel Round magnet Hex thin nut M10 Magnet frame Double head sensor Pulling wire seat Pin sensor Magne�c plate Cross pan head screw Connec�on collumn Magnet board frame Belt...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 1 Use two larger Styrofoam pieces and stack them together. Place the main frame (93) on top of the Styrofoam, following the illustra�on provided. Refer to Figure 1: Use an Allen wrench to remove the inner hex pan head bolt (14) from both the main frame (93) and (123).
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 3 Gently invert the mainframe and posi�on it onto the Styrofoam surface. Refer to Figure 3: Aligning the bosses (a) and (c) located on the right feet assembly (17R) with the corresponding grooves (b) and (d) on the main frame (93). Then, secure the right feet assembly (17R) to the main frame (93) using the provided inner hex pan head bolt (14).
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 5 A�ach the rear stabiliser (47) to the aluminum guide rail (43) using the provided inner hex pan head screw (41), along with the spring washer (26) and washer (20). Slide the assembly assistance plate (124) into the rear stabiliser assembly (47). STEP 6 Ensure the mainframe (93) and guide rail (43) are perfectly aligned in a straight line.
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 7 Insert the saddle (56) into the guide rail (43), ensure its proper orienta�on. A�ach the limited block (39) to the guide rail (43) using the provided inner hex pan head bolt (38) and allen wrench (A) to firmly fasten the bolt. Fasten the aluminum guide rail rear cover (45) onto the guide rail (43) using the cross pan head screw (46) along with the sturdy solid wrench (C).
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 9 Fasten the pedal cover (27 L/R) onto the pedal frame (30 L/R) using the provided cross countersunk screw (29). STEP 10 Remove the two screws securing the display (1). A�ach the iPad holder (7) to the display (1) using the same screws that were just removed.
  • Page 13 ASSEMBLY INSTRUCTIONS GUIDE RAIL Please remove (124) before exercising. Save it for next disassembly. When the machine has not been used for a while and the surface is dirty, please wipe and clean the surface of the slide rail (43) before exercise.
  • Page 14 PRODUCT COMPLETE CONGRATULATIONS Assembly of your Elite Rivale+ Rowing Machine Failure to visually check and test and tech the assembly before use can cause damage to the Elite Rivale+ Rowing Machine and serious injury to users and bystanders and can also...
  • Page 15 CONSOLE DISPLAY HOME SCREEN ITEM DESCRIPTION RANGE TIME Time of exercise 0 min: 00 s ~ 99 min: 59 s Time per 500 meters: Real �me es�ma�on of �me/500m TIME/500m 0 min: 00 s ~ 99 min: 59 s at the current stroke speed DISTANCE Distance of exercise 0 ~ 9999 m...
  • Page 16 CONSOLE DISPLAY DESCRIPTION OF FUNCTIONS ITEM DESCRIPTION NOTES (PROGRAM 1) 1 × Exercise mode with a program of manual adjustment of MANUAL resistance force equivalent F-PLUS F-PLUS 1/2/3 LEVEL. The operation resistance will increase. (PROGRAM 2 ~ 12) 11× Exercise modes with a program of automatic adjustment PROGRAM of resistance force equivalent (PROGRAM 13) Test body fat percentage, body mass index and basal metabolic...
  • Page 17 CONSOLE DISPLAY ITEM DESCRIPTION Function mode of upward selection: Upward adjustment when setting, which is used to increase the ∧ value of LEVEL during exercise Function mode of downward selection: Downward adjustment when setting, which is used to ∨ decrease the value of LEVEL during exercise F-PLUS 1/2/3 LEVEL.
  • Page 18 CONSOLE DISPLAY Program 13 (Bodyfat): Note: The program requires the installa�on of a wireless heart rate receiver and a chest strap (not included) before use. 1. Ini�ate the setup process by pressing the ENTER bu�on. 2. Within the se�ng mode, follow this sequence: GENDER → HEIGHT → WEIGHT → AGE. U�lise the ↑...
  • Page 19 CONSOLE DISPLAY Recovery: Note: The program requires the installa�on of a wireless heart rate receiver and a chest strap (not included) before use. 1. While the instrument is displaying your heartbeat value, press the RECOVERY bu�on to ac�vate con�nuous heartbeat monitoring. 2.
  • Page 20 CONSOLE DISPLAY Error Codes Descrip�on: ERROR CODES POSSIBLE CAUSES INSPECTION SOLUTIONS Whether the motor wiring plug is Plug in the wiring plug or replace The motor is not working properly correctly plugged into the wiring the motor terminal The internal cable of the machine Whether the cable is damaged Replace the cable is failure...
  • Page 21 EXPLODED DRAWING RIVALE+ ROWING MACHINE ASSEMBLY MANUAL...
  • Page 22 EXPLODED DRAWING...
  • Page 23 CARE AND MAINTENANCE At least once a year, the cover on your rowing machine should be removed and any dust or debris Cleaning prevent unnecessary corrosion stains and damage to the structural components from sweat and Guide Rail: Chain: To oil the chain; pull the chain to its full extent and while holding the handle use a clean paper Adjust the End cap &...
  • Page 24 MAINTENANCE LOG GENERAL FRAME SERVICE DATE COMMENTS Lubricated Tighten Cleaned Joints Guide Rail 01/06 none...
  • Page 25 — 10 Years Frame The following conditions are not under warranty range: The damage due to incorrect adjustment of the machine; Repair and Maintenance Service or visit Please contact our Elite Fitness Service Department at RIVALE+ ROWING MACHINE ASSEMBLY MANUAL...
  • Page 26 WARM-UP EXERCISE — — a mat, put one leg straight, the other inward and close to the — Crus and Feet Tendon Stretches Standing with two hands on — with your right hand and stretch your right heel toward your —...
  • Page 27 ROWING TECHNIQUES to the balls of the feet connected to the footboard, all the muscles between these 2 points CATCH POSITION shoulders relaxed, head up, eyes looking DRIVE PHASE handle and only begin to bend once handle is above the knees, torso is strong with good posture and body angle opens up slowly as RELEASE POSITION shoulders relaxed, head up and eyes looking...
  • Page 28 TRAINING STAGES Note: Contact heart rate may provide inaccurate readings and is designed only as a guide...
  • Page 29 For more informa�on about our Elite Fitness equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2023 Elite Fitness Elite Fitness, 28 Morrin Road, St Johns, Auckland, New Zealand. 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, compe��ons and equipment, follow us on our social media sites.
