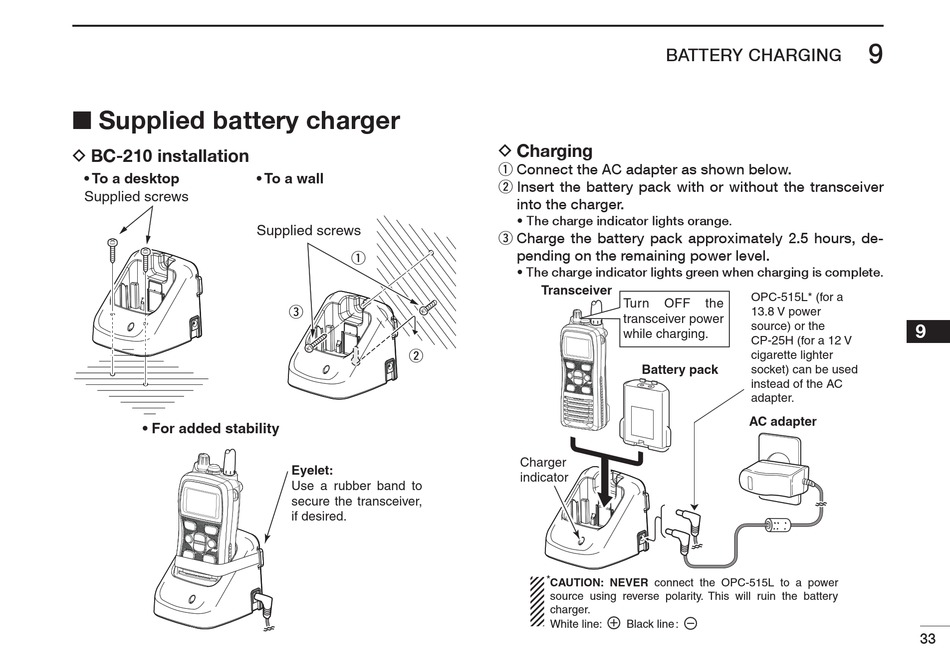

■ Supplied battery charger

D BC-210 installation
• To a desktop
Supplied screws
• For added stability
• To a wall
Supplied screws
q
e
w
Eyelet:
Use a rubber band to
secure the transceiver,
if desired.
BATTERY CHARGING
D Charging
q Connect the AC adapter as shown below.
w Insert the battery pack with or without the transceiver
into the charger.
• The charge indicator lights orange.
e e C harge the battery pack approximately 2.5 hours, de-
e
pending on the remaining power level.
• The charge indicator lights green when charging is complete.
Transceiver
Turn OFF
transceiver power
while charging.
Battery pack
Charger
indicator
*
CAUTION: NEVER connect the OPC-515L to a power
source using reverse polarity. This will ruin the battery
charger.
White line: Black line :
9
OPC-515L* (for a
the
13.8 V power
source) or the
CP-25H (for a 12 V
cigarette lighter
socket) can be used
instead of the AC
adapter.
AC adapter
