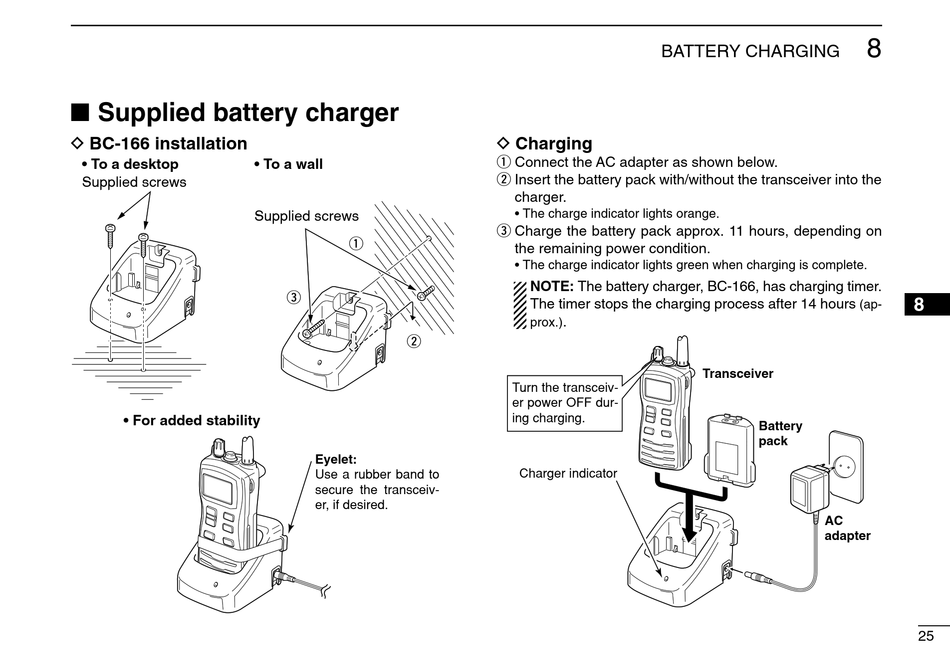

I Supplied battery charger

D BC-166 installation
• To a desktop
Supplied screws
• For added stability
• To a wall
Supplied screws
q
e
w
Eyelet:
Use a rubber band to
secure the transceiv-
er, if desired.
BATTERY CHARGING
D Charging
q Connect the AC adapter as shown below.
w Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights orange.
e Charge the battery pack approx. 11 hours, depending on
the remaining power condition.
• The charge indicator lights green when charging is complete.
NOTE: The battery charger, BC-166, has charging timer.
The timer stops the charging process after 14 hours
.
prox.)
Turn the transceiv-
er power OFF dur-
ing charging.
Charger indicator
8
(ap-
Transceiver
Battery
pack
AC
adapter
8
25
