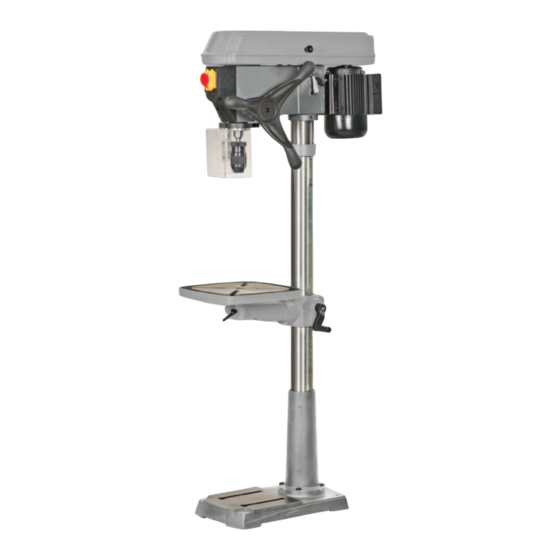

  • Page 1 Code 505203 Code 505204 Code 505205 Code 505206 Pillar Drills User Manual 505203 AT2001DP 505204 AT2501DP 505205 AT2801FDP 505206 AT3202FDP...

  • Page 2: Declaration Of Conformity

    Index of Contents Index of Contents Declaration of Conformaity What’s Included 03-04-05 General Safety Instructions General Safety Instructions for Drilling Machines Specification Assembly 08-09-10-11-12-13 Illustration and Parts Description 14-15 Changing the Speed Speed Select Table Removing the Chuck Assembly Maintenance Troubleshooting Parts Breakdown/List 21-22-22-23-24-25-26-27-28-29...

  • Page 3: What's Included

    What’s Included Quantity Item Part Model Number 1 No AT2001DP Pillar Drill Code: 505023 AT2801DP Pillar Drill Code: 505204 AT2801FDP Pillar Drill Code: 505205 AT3202FDP Pillar Drill Code: 505206 Box Containing: 1 No Pillar drill head 1 No Base (505203-505204-505205 Only) (505206 Only) 1 No Drill table mounting bracket arm assembly...
  • Page 4 What’s Included...

  • Page 5: General Safety Instructions

    ”What’s Included” , if there are any discrepancies, is required for your machine. It is also recommended please contact Axminster Tool Centre using the that the power supply outlet is the switched type, procedures laid down in the catalogue.
  • Page 6 General Safety Instructions It is good practice to leave the machine unplugged should be given to the removal of rings and until work is about to commence, also make sure to wristwatches, if these are liable to be a ‘snag’ hazard. unplug the machine when it is not in use, or Consideration should also be given to non-slip unattended.

  • Page 7: Specification

    Specification Model AT2001DP Model AT2801DP 505203 505204 Code Code Power 375W (230V 1ph) Power 550W (230V 1ph) Speed Range (12) 180-2,740rpm Speed Range (16) 160-3,000rpm 195mm 215mm Throat Throat Taper Taper Chuck Cap/Type 13mm Keyless Chuck Cap/Type 16mm Keyless 80mm 80mm Chuck Travel Chuck Travel...
  • Page 8 Assembly Please read through the section entitled Slot the drill table (4a) into the machined hole to the illustration and parts description, to front of the mounting arm (3a) and screw a Bristol identify the parts quickly and easily. clamping handle (8) into to the threaded hole beneath the table and tighten, (see fig 13) check it has ‘pinched’...
  • Page 9 Assembly Fig 08-09 Rise and fall rack Pinion Machined flat Fig 10 Fig 05-06 Fig 11 Fig 07 Top of rack Cup chamfer Continues Over...
  • Page 10 Assembly Fig 12 PIllar drill head Fig 13 WARNING! THE DRILL HEAD IS A HEAVY AND SUBSTANTIAL PIECE OF MACHINERY, YOU ARE ADVISED TO HAVE HELP TO LIFT IT CLEAR OF THE BOX AND FIT IT TO THE COLUMN. CHECK the drill head, ensure that the two hex socket grub screws that lock the head in place on the column are withdrawn and will not foul on the column (5) when the head is fitted (see fig 16).
  • Page 11 Assembly Fig 17 Threaded hole Raised boss Machined slot Grub screw caphead bolt, note the raised boss of the feed mechanism and the two spigots inside the feed handle. Mount the handle over the boss and ensure the spigots inside the handle (7) engages into the machined slot in the boss.
  • Page 12 Assembly Chuck guard Morse taper arbor & chuck (Radial Drills Only) Locate the morse taper arbor (10), insert the arbor Locate the chuck guard assembly (6) and the three into the keyless chuck (9) then slot the assembly up Phillips screws. Offer up the fixing holes in the micro into the quill.
  • Page 13 Assembly Pillar drills assembled. 505203 505204 AT2001DP AT2501DP 505206 505205 AT2801FDP AT3202FDP...

  • Page 14: Illustration And Parts Description

    Illustration and Parts Description Pulley drive belt cover Pulley cover hand knob Motor yoke locking knob On/Off switch shroud Drive belt tensioning lever lock Chuck guard micro switch Motor Chuck guard Lever feed handle Retaining collar Keyless chuck Rise and fall rack Drill table Crank handle Bristol clamping handle...
  • Page 15 Illustration and Parts Description Depth stop nuts On/Off switch (A) Depth stop assembly (A) Chuck guard height locking knob Emergency stop button (B) Depth stop scale (B) Bristol clamping handle Bristol clamping handle for Drive belt tensioning lever lock (A) for the drill table securing the table mounting arm Motor yoke butterfly knob (B)

  • Page 16: Changing The Speed

    Changing the Speed Fig 29-30-31-32 WARNING! DISCONNECT THE PILLAR DRILL FROM THE MAINS SUPPLY BEFORE CONTINUING! Locate and loosen the motor yoke butterfly locks (A). Locate the drive belt tensioning lever (B), (see fig 27) turn it clockwise, to move the motor assembly “in” . This will release the tension from the drive belts (See figs 29-30-31-32).

  • Page 17: Speed Select Table

    Speed Select Table...
  • Page 18 Removing the Chuck Assembly Preparation Removing the chuck While holding the handle in place turn the chuck to You wil require the morse taper drift (11) line up the morse taper arbor in the quill’s machined slot, (See fig 34). Insert the morse taper drift (11) in Lower the quill to its maximum depth by turning the the quill’s slot, thus pushing the morse taper down feed lever handle.

  • Page 19: Maintenance

    HAS BECOME DAMAGED If any servicing (other than the above cleaning) becomes necessary the unit should be returned to Axminster Tool Centre to be repaired by one of our qualified electricians. Contact our technical sales department for further assistance. Call 03332 406406 Email technical@axminster.co.uk...

  • Page 20: Troubleshooting

    Troubleshooting TROUBLE PROBABLE CAUSE REMEDY Noisy operation 1. Incorrect belt tension 1. Adjust the tension 2. Dry Spindle 2. Lubricate spindle 3. Loose spindle pulley 3. Checking tightness of retaining nut on pulley, and tighten if necessary 4. Loose motor pulley 4.

  • Page 21: Parts Breakdown/List

    Parts Breakdown/List (505203) Continues Over...
  • Page 22 Parts Breakdown/List (505203) Desc. of parts D&D Drawing No. Q’ty Switch KJD12A Base 13301001A Pan head screw GB818-85 M5x16 Support column 16101002B Wire terminal CE-5 Hex. Head screw GB5781-86 M10x35 Switch box 16102008D Hex. Socket head GB80-85 M10x12 Pan head screw GB818-85 M5x6 screw Lockwasher...
  • Page 23 Parts Breakdown/List (505203) Depth stop collar w/ 16104003C Center pulley 16105006 scale Idler pivot 16105007 Hub assm. 16104002B Motor pulley 16105005 Roll pin GB879-86 6x45 Hex. Socket head GB80-85 M8x12 Feed handle 16104001C screw Cylindric hex. Socket GB70-86 M8x30 Pan head screw GB818-85 M3x25 set screw Micro switch...
  • Page 24 Parts Breakdown/List (505204-505205)
  • Page 25 Parts Breakdown/List (505204-505205) Desc. of parts D&D Drawing No. Q’ty Wire terminal CE-5 Base 16101001A Switch box 16202008D Column support 16201002A Pan head screw GB818-85 M5x6 Hex. Head screw GB5781-86 M10x35 Lock washer GB862.1-87/5 Hex. Socket set screw GB80-85 M10x12 Special screw set 16102021 Rack...
  • Page 26 Parts Breakdown/List (505204-505205) Roll pin GB879-86 6x45 Idler pivot 16205007 Feed handle 16104001C Motor pulley 16205005 Cylindric hex. Socket GB70-86 M8x30 Pan head screw GB818-85 M3x25 set screw Micro switch 16105013-2 Retainning ring 16202024 Pan head screw GB818-85 M3x16 Ball bearing GB276-89/60205 Micro switch XN-5...
  • Page 27 Parts Breakdown/List (505206) Continues Over...
  • Page 28 Parts Breakdown/List (505206) Desc. of parts D&D Drawing No. Q’ty Self tapping screw GB845-85 ST4.2x9.5 Base 20101001A Switch KJD12 Hex. Head screw GB5781-86 M12x40 Wire terminal 16102019 Column support 20101002 Pan head screw GB818-85 M6x15 Hex. Socket set screw GB80-85 M10x12 Pan head screw GB818-85 M6x30 Table column...
  • Page 29 Parts Breakdown/List (505206) Roll pin GB879-86/8x25 Ball bearing GB276-89/60202 Head 20102001K Center pulley 20105006 Depth stop collar w/ 16104003C Idler pivot 20105007 scale Motor pulley 20105005B Hub. Assm. 20104002B Pan head screw GB818-85 M3x25 Roll pin GB879-86 6x45 Micro switch cover 16105013-2 Feed handle 16104001D...

  • Page 30: Wiring Diagram

    Wiring Diagram (505203-505204-505205)
  • Page 31 Wiring Diagram (505206)
  • Page 32 Hobby, Trade, Industrial, Engineer, Air Tool & Axcnc Technology Series machines It’s probably the most comprehensive FREE guarantee ever- buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! •...

This manual is also suitable for:

Trade at2501dpTrade at2801fdpTrade at3202fdp
