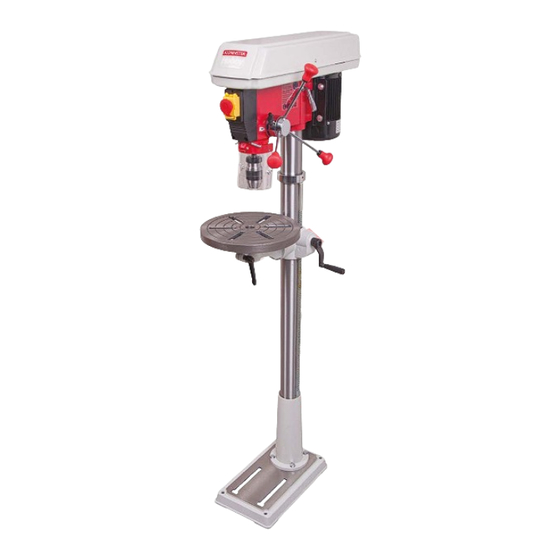

Summary of Contents for Axminster AHDP13B
- Page 1 AHDP13B Code 101925 AXMINSTER AXMINSTER AHDP16B Code 101926 Hobby Hobby AHDP16F Code 101927 AHRD16B Code 101928 AHRD16F Code 101929 SERIES SERIES Pillar Drills User manual Code 101927 Code 101926 Code 101925 Code Code 101928 101929 AT&M: 27/10/2016 REF: 101974...
-
Page 2: Table Of Contents
Index of Contents Index of Contents Declaration of Conformity What’s Included 04-05-06 General Safety Instructions 06-07 General Safety Instructions for Drilling Machines Specification Assembly 09-10-11-12-13 Illustration and Parts Description 14-15-16-17 Changing the Speed 18-19 Removing the Keyless Chuck Maintenance Speed Select Tables Drill Speed Material Table Troubleshooting Exploded Diagram/Parts List... - Page 3 What’s Included Model Number ZQJ4113A Model Number ZQJ4116Q Quantity Item Part Quantity Item Part 1 No AHDP13B Small Bench Pillar Drill 1 No AHDP16B Medium Bench Pillar Drill Model Number ZQJ4116A Model Number ZQJ3116 Quantity Item Part Quantity Item Part...
- Page 4 What’s Included...
- Page 5 What’s Included...
-
Page 6: General Safety Instructions
What’s Included General Safety Instructions Work Place/Environment/Installation Work Place/Environment DO NOT use when or where it is liable to get wet. If the machine Mains Powered Machines/ Primary Precautions is to be used outside and it starts to rain stop work and move it These machines are supplied with a moulded 13 Amp plug inside. -
Page 7: General Safety Instructions
General Safety Instructions It is good practice to leave the machine unplugged until work Likewise,consideration should be given to the removal of rings is about to commence, also make sure to unplug the machine and wristwatches, if these are liable to be a ‘snag’ hazard. when it is not in use, or unattended. -
Page 8: Specification
Specification Code 101925 Code 101926 Model AHDP13B Model AHDP16B Power 250W 50Hz (230V 1 ph) Power 375W 50Hz (230V 1 ph) Speed Range (5) 600 - 2,500rpm Speed Range (12) 210-2,580rpm Swing 210mm Swing 254mm Chuck Size 1.5-13mm Keyless Chuck Cap/Type... - Page 9 Having unpacked your machine and its accessories, please Fig 02 check the contents against the equipment list ”What’s Included” , if there are any discrepancies, please contact Axminster Tool Centre using the procedures laid down on our website. PLEASE DISPOSE OF THE PACKAGING RESPONSIBLY;...
- Page 10 Assembly collar over the column and slide it down onto the top of the rack. Lock it in place with the grub screw, ensuring that it has captured the upper end of the rack securely, but not too tight that the rack cannot be swivelled around the pillar see fig 8 . Fig 06-07 6.
- Page 11 Assembly Fig 17-18-19 Grub screw Note: On the two radial drills fit the extension arm (2d) into the mounting arm (2b and 2c) then the tables, see figs 14- 15-16. Fig 15-16 Radial Pillar Drill Head Only 2. Lay the drill head on its side, locate the column spacer block and insert it into machined recess inside the base of the drill head, see fig 20.
- Page 12 3. Locate another lift and shift handle (10) and screw it into the threaded hole for the Horizontal clamp assembly, see fig 22. Fig 22 1-13mm Keyless Chuck AHDP13B Only Locate the chuck (7) and insert it up over the morse taper arbor, using a high faced mallet, lightly tap it home.
- Page 13 30. Fig 29-30 Lever Feed Handles Locate the three lever feed handles (6) and screw them into the threaded holes on the depth stop ring, see fig 31-32. Fig 31-32 Model Letter AHDP13B AHDP16B AHDP16F AHRD16B AHRD16F...
- Page 14 Retaining collar Crank handle Keyless chuck Drill table Rise and fall rack Drill column Mounting flange Base casting ‘T’ slot Base casting 101925 AHDP13B 101926 AHDP16B Pillar drill securing holes Micro switch 101925 Drive Pulley 101926 Drive Pulley 101927 Drive Pulley...
- Page 15 Illustration and Parts Description Depth stop clamp (A) ON/OFF switch (A) Motor yoke clamp (A) Depth scale (B), Depth scale pointer (C) Emergency stop button (B) Table tilt locking bolt 90˚ Locking bolt Motor yoke clamp (A) Drive belt tensioning lever (B) Table tilt scale (A) Depth stop assembly (A) Quill rise and full return spring (A)
- Page 16 Illustration and Parts Description Vertical scale Horizontal column Motor yoke locking knob Horizontal column lock Pulley drive belt cover ON/OFF switch shroud Motor Drill column Chuck guard Retaining collar Rise and fall rack Keyless chuck Lever feed handle Crank handle 101929 AHRD16F Drill table Lift and shift handles...
- Page 17 Illustration and Parts Description Vertical scale (A) Horizontal column adjusting knob (A) Column pointer (B) Horizontal column clamping handle (B), Motor yoke clamp (C) Turn the horizontal adjusting knob Turn the horizontal adjusting knob Vertical locking pin anti-clockwise to move the column forward clockwise to move the column back Loosen the horizontal column clamping handle (B).
-
Page 18: Changing The Speed
Refer to the (speed select table) and ascertain the belt positions for the speed you require. Fig 36-37 AHDP13B Drive Pulley AHDP16F Drive Pulley Refer to the (speed select table) and ascertain the belt positions for the speed you require. Move the belts to these positions. -
Page 19: Removing The Keyless Chuck
Changing the Speed Radial Drills WARNING! TAKE CARE NOT TO TRAP YOUR FINGERS To release the tension, loosen the motor yoke tensioning locks, WHEN REPOSITIONING THE BELT ON THE PULLEYS! push the motor up against the drillhead casting, thus releasing the tension on the pulleys, see fig 38-39. -
Page 20: Maintenance
POWER CABLE HAS BECOME DAMAGED If any servicing (other than the above cleaning) becomes necessary, the unit should be returned to Axminster Tool Centre to be repaired by one of our qualified electricians. Contact our customer sales department for further assisance on 03332 406406 or email as @ csaxminster.co.uk . -
Page 21: Speed Select Tables
Speed Select Tables (5 Speed) 101925 AHDP13B Bench Pillar Drill (12 Speed) 101926 AHDP16B Bench Pillar Drill 101927 AHDP16F Floor Pillar Drill (5 Speed) 101928 AHRD16B Bench Radial Pillar Drill 101929 AHRD16F Floor Pillar Drill... -
Page 22: Drill Speed Material Table
Drill Speed Material Table 5 Speed Spindle Motor 12 Speed Spindle Jocky Pulley Motor Recommended Drill Size per Material Zinc Aluminium Cast Iron Steel Steel Cast Steel Average Guide Wood Plastic Diecast or Brass and Bronze Mild and Stanless and Speed Malleable Carbon... -
Page 23: Troubleshooting
Troubleshooting TROUBLE PROBABLE CAUSE REMEDY 1. Incorrect belt tension 1. Adjust the tension Noisy Operation 2. Dry spindle 2. Lubricate spindle 3. Loose spindle pulley 3. Checking tightness of retaining nut on pulley, and tighten if necessary 4. Loose motor pulley 4. - Page 24 Exploded Diagram/Parts List AHDP13B Bench Pillar Drill (ZQJ4113A)
- Page 25 Exploded Diagram/Parts List AHDP13B Bench Pillar Drill (ZQJ4113A) DESCRIPTION BOLT M8x16 BASE MOTOR PULLEY COLUMN HEADLESS SET SCREW BOLT M8X20 PULLEY COVER TABLE BRACKET WASHER SQUARE TABLE SCREW M6X10 BOLT M12x25 SPINDLE PULLEY CLAMPING LEVER HEADLESS SET SCREW BODY RETAIN RING...
- Page 26 Exploded Diagram/Parts List AHDP16B Bench Pillar Drill (ZQJ4116Q)
- Page 27 Exploded Diagram/Parts List AHDP16B Bench Pillar Drill (ZQJ4116Q) DESCRIPTION HEADLESS SET SCREW BASE SLIDE BAR BOLT BOLT SCREW COLUMN SLIDE BAR RACK RING INSTRUCTION MANUAL HEADLESS SET SCREW CHUCK KEY RACK SPRING MOUNTING ARM BRACKET SPRING SEAT WORM GEAR PLASTIC JAM NUT GEAR SCREW SHAFT...
- Page 28 Exploded Diagram/Parts List AHDP16F Floor Pillar Drill (ZQJ4116A)
- Page 29 Exploded Diagram/Parts List AHDP16F Floor Pillar Drill (ZQJ4116A) SHIFTER DESCRIPTION SLIDE BAR SLIDE BAR BASE MOTOR BASE HEX BOLT WASHER M12 LONG RACK LOCK WASHER M12 COLUMN NUT M12 TABLE BRACKET HANDLE MOTOR MOTOR PULLEY SET SCREW KEY 5 X 20 SHAFT GEAR SETSCREW M6X 6 V-BELT...
- Page 30 Exploded Diagram/Parts List AHRD16B Bench Radial Drill (ZQJ3116) AHRD16F Floor Radial Drill (ZQJ3116A)
- Page 31 Exploded Diagram/Parts List AHRD16B Bench Radial Drill (ZQJ3116) AHRD16F Floor Radial Drill (ZQJ3116A) DESCRIPTION BRACKET CHUCK TENSION ADJUSTMENT BAR LOWER SPINDLE ASSEMBLY HEX HEAD BOLT SPINDLE 8MM FLAT WASHER 6202LL BALL BEARING MOTOR MOUNT PLATE QUILL 10MM FLAT WASHER 6201LL BALL BEARING 10MM LOCK WASHER RETAINING RING HEX NUT...
- Page 32 Exploded Diagram/Parts List AHRD16B Bench Radial Drill (ZQJ3116) DESCRIPTION BASE COLUMN ASSEMBLY 8-1.25 X 20MM SOCKET HEAD BOLT RACK 6-1.0 X 10MM SET SCREW CRANK HANDLE RACK RETAINING RING TABLE BRACKET ASSEMBLY (INCL. REF. NOS. 12 AND 21) WORM AND PINION GEAR SET WORM GEAR PINION GEAR AND SHAFT LOCKING HANDLE...
- Page 33 Exploded Diagram/Parts List AHRD16F Floor Radial Drill (ZQJ3116A) DESCRIPTION BASE COLUMN ASSEMBLY 8-1.25 X 20MM SOCKET HEAD BOLT RACK 6-1.0 X 10MM SET SCREW CRANK HANDLE RACK RETAINING RING TABLE BRACKET ASSEMBLY (INCL. REF. NOS. 12 AND 21) WORM AND PINION GEAR SET WORM GEAR PINION GEAR AND SHAFT LOCKING HANDLE...
-
Page 34: Wiring Diagram
Wiring Diagram... - Page 35 CE Certificate AHDP13B Bench Pillar Drill (ZQJ4113A) AHDP16F Floor Pillar Drill (ZQJ4116A)
- Page 36 CE Certificate AHDP16B Pillar Drill (ZQJ4116Q)
- Page 37 CE Certificate AHRD16B Bench Radial Drill (ZQJ3116) AHRD16F Floor Radial Drill (ZQJ3116A)
-
Page 38: Notes
Notes... -
Page 39: Notes
Notes... - Page 40 Normal wear and tear; misuse, abuse and neglect are excluded and the machine should not have engineering machines, Axminster Air compressors and Air Tools, and bench top grinders - no been modified in any way. Please do not attempt to service the product without first contacting us;...
