788T/788T-SSD User Guide and Technical Information

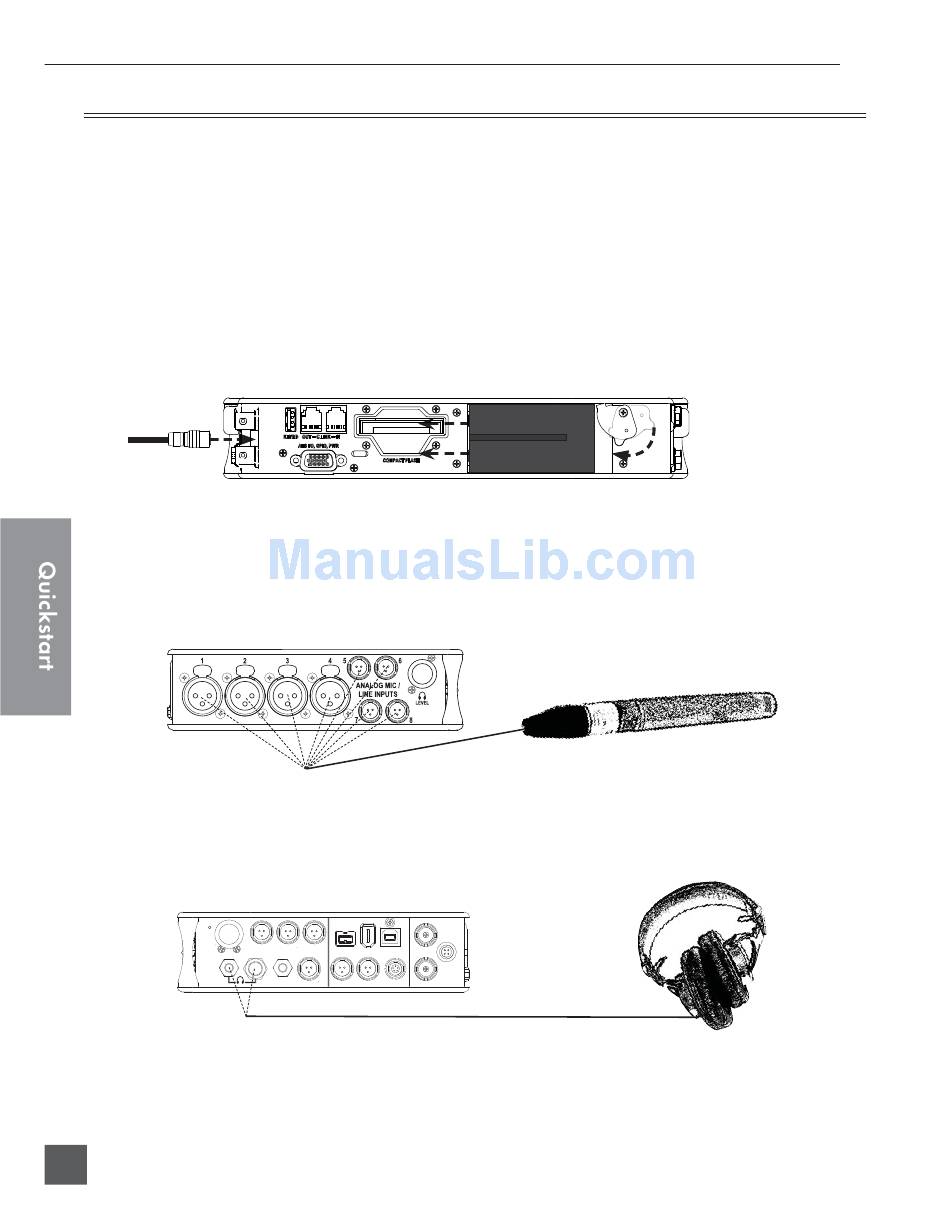

Quick Start Guide

This Quick Start Guide provides a brief overview for fi rst use of the 788T/788T-SSD. For detailed operating
instructions refer to the 788T/788T-SSD User Guide and Technical Information.
Connect Power.
1)
Connect the supplied AC-to-DC power supply to the DC connector on the Right
Panel.
Attach the supplied Li-ion rechargeable battery to the recorder.
2)
Be certain to line up the battery contacts with the battery compartment mounting
pins. Rotate the battery lock to secure the battery in place.
Connect analog microphone or line sources.
3)
Please refer to the 788T/788T-SSD User Guide and Technical Information for con-
nections with digital audio sources.
Connect headphones
4)
Connect to either the 1/4-inch or 1/8-inch headphone output on the Right Panel.
MENU
SELECT
4
v. 2.10 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
The included battery must be charged for six hours prior to initial use.
The 788T will charge the L-Mount battery when DC is connected.
1 2 3
FW800 FW400 USB
ANALOG BAL LINE OUTS
SYNC
BAL AES
OUT
5,6 4 1,2 3,4
UNBAL
TIMECODE
Included L-Mount Battery
788T Left Panel
WORD / VID IN
DC IN
10-18V
788T Right Panel
( )
PIN 4 +
PIN 1 ( ) -
WORD OUT
788T Rear Panel
