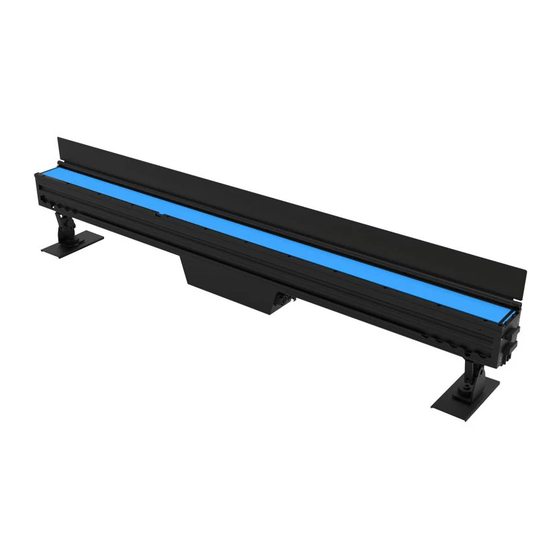

Summary of Contents for ADJ ELECTRAPIX BAR 16

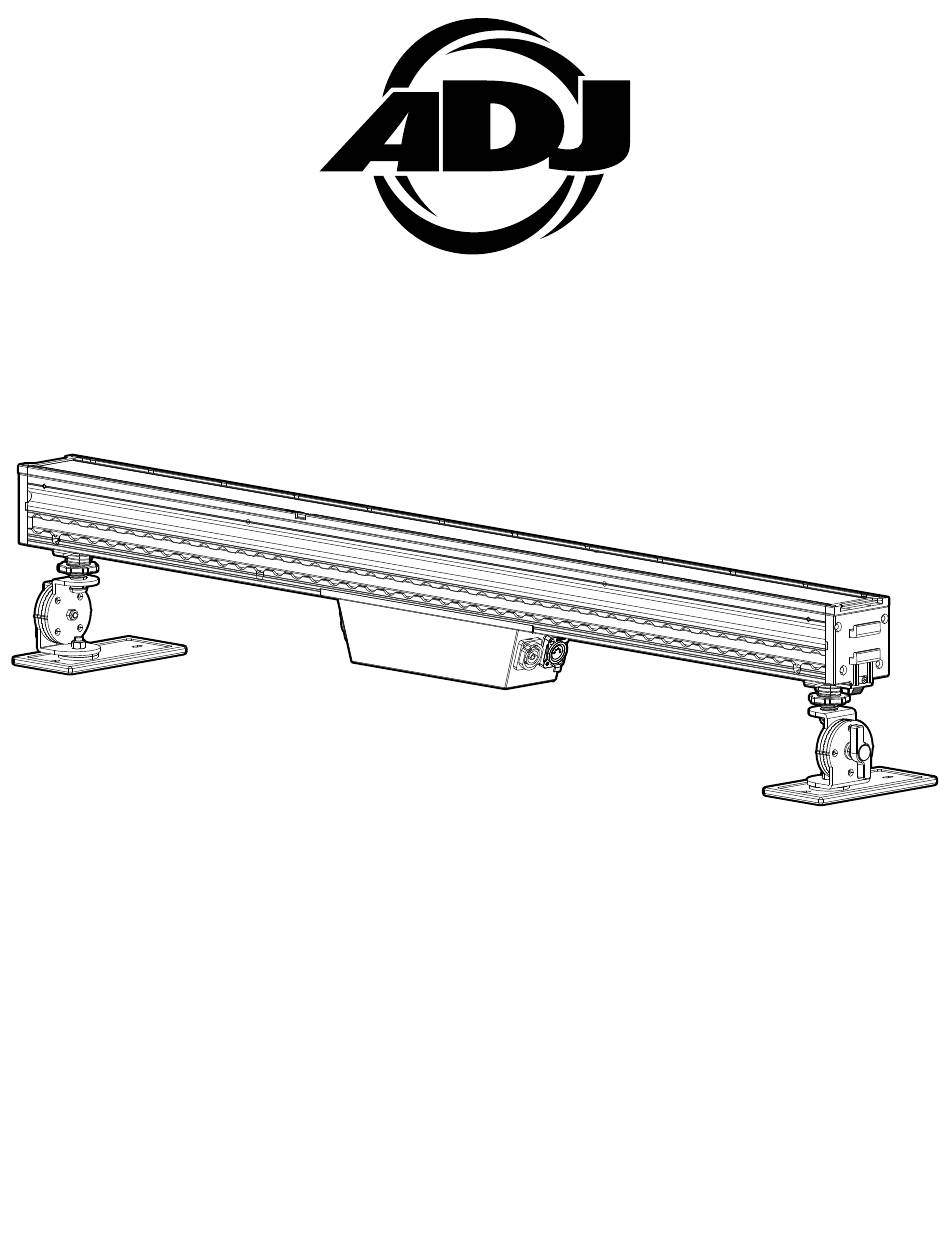

  • Page 1 ELECTRAPIX BAR 16 User Manual...
  • Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3 C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features IP65 Rating Statement Safety Guidelines Battery Warnings Overview Torque Settings for Screws IP Test Parameters Installation Guidelines Accessory Installations Frost Filter Glare Shield L-Track VFB1 Floor Base Battery Charger...

  • Page 4: General Information

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. FOR SOFTWARE SUPPORT, CONTACT ADJ CUSTOMER SUPPORT. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions.

  • Page 5: L I M I T E D Wa R R A N T Y ( U S A O N Ly )

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Warranty Registration

    WA R R A N T Y R E G I S T R AT I O N The Electrapix Bar 16 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.
  • Page 7 10,000-hours. This is a prophylactic measure intended to keep the unit running as cool as possible, insuring proper function of all internal components. A complete service breakdown is available, please contact service@adj.com for any needed parts or manuals.

  • Page 8: Safety Guidelines

    S A F E T Y G U I D E L I N E S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.
  • Page 9 S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER EYE AND SKIN PROTECTION.
  • Page 10 B AT T E R Y WA R N I N G S HANDLING PRECAUTIONS Do not short circuit the battery. Avoid subjecting the battery to a short circuit, as doing so gener- ates a very high current, resulting in overheating, electrolyte gel leakage, harmful fumes, explosion risk, or other damage to the battery.
  • Page 11 O V E R V I E W G G l l a a r r e e S S h h i i e e l l d d L L e e n n s s L L o o c c k k M M u u l l t t i i - - p p o o s s i i t t i i o o n n a a l l L L - - T T r r a a c c k k C C o o n n n n e e c c t t o o r r B B r r a a c c k k e e t t s s A A d d j j u u s s t t a a b b l l e e M M o o u u n n t t i i n n g g B B r r a a c c k k e e t t...
  • Page 12 T O R Q U E S E T T I N G S F O R S C R E W S IN ORDER TO MAINTAIN THE IP65 RATING ON THE LIGHTING FIXTURES, ALL SCREWS MUST BE TIGHTENED TO THE FOLLOWING TORQUE SPECIFICATION USING A TORQUE DRIVER. Refer to the table and diagram below for torque specifications.
  • Page 13 Following any repair or maintenance procedure that requires disassembly of the fixture, use ADJ’s Hydro IP Tester to confirm the IP integrity of the fixture. The air valve is located on the back panel next to the display screen, as shown in the diagram below. Please contact ADJ Service for information regarding the ADJ Hydro IP Tester, or visit the product information page online at: https://www.adj.com/hydro-ip-tester...

  • Page 14: Electrical Connections

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS).

  • Page 15: Clamp Installation

    I N S TA L L AT I O N G U I D E L I N E S CLAMP INSTALLATION This fixture features brackets for the attachment of mounting clamps. There are also safety cable attachment points located on the heatsink near each endcap. When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure appropriately rated clamps (not included) to the brackets, and attach a separate SAFETY CABLE of the appropriate weight rating to a safety cable attachment point.
  • Page 16 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.
  • Page 17 I N S TA L L AT I O N G U I D E L I N E S POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers, which are focused directly towards the exterior housing and/or penetrate the front lens opening of Elation lighting fixtures, can cause severe internal damage including burning of optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts,...
  • Page 18 A C C E S S O R Y I N S TA L L AT I O N : F R O S T F I LT E R Locate Frost Filter Lens Lock and press out to unlock it. Carefully slide Frost Filter Lens into the Lens Slots.
  • Page 19 A C C E S S O R Y I N S TA L L AT I O N - G L A R E S H I E L D 1. Locate 2 Glare Shield mounting screw holes on either side of fixture. 2.
  • Page 20 A C C E S S O R Y I N S TA L L AT I O N - L - T R A C K L-TRACK MOUNTING This unit’s L-track mounting system allows the user to slide the mounting clamps along the tracks and lock them down in the desired position.
  • Page 21 A C C E S S O R Y I N S TA L L AT I O N - V F B 1 F L O O R B A S E VFB1 FLOOR BASE: MOUNTING & STACKING To mount the ElectraPix BAR 16 fixture to the VFB1 Floor Base, align the connector recesses located at one end of the fixture with the bars on the VFB1 Floor Base.
  • Page 22 A C C E S S O R Y I N S TA L L AT I O N - B AT T E R Y C H A R G E R To charge the internal battery, carefully plug the Charging Base into the Charge Port, located on the bottom of the fixture next to the control panel, and plug the Power Supply into the Charging Base.

  • Page 23: System Menu

    S Y S T E M M E N U This unit features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the SETUP button to enter the sub-menu, then use the UP and DOWN buttons to scroll through sub-menu options.
  • Page 24 S Y S T E M M E N U - E N G L I S H MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) 001 - 512 DMX Address DMX Settings DMX Mode 5ch, 6ch, 9ch, 13ch, 22ch, 24ch, 96ch, 99ch, 114ch Hold Last, Blackout, Manual Settings, Internal Programs No DMX Status Primary, Secondary...
  • Page 25 S Y S T E M M E N U - E N G L I S H MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) 000-255 Green 000-255 Blue 000-255 Amber 000-255 Lime 000-255 000-255 RGBAL+UV Color Macros 000-064 Background Red 000-255...
  • Page 26 S Y S T E M M E N U - S PA N I S H MENÚ OPCIONES / VALORES (Configuración predeterminada en NEGRITA) PRINCIPAL 001 - 512 Direccion DMX Configuracion 5ch, 6ch, 9ch, 13ch, 22ch, 24ch, 96ch, 99ch, 114ch Modo Canales DMX Estado DMX TENER ULTIMO, Apagon, Configuracion Manual, Programas Internos...
  • Page 27 S Y S T E M M E N U - S PA N I S H MENÚ OPCIONES / VALORES (Configuración predeterminada en NEGRITA) PRINCIPAL Rojo 000-255 Verde 000-255 Azul 000-255 Ámbar 000-255 Lima 000-255 000-255 000-255 RGBAL+UV Macro de color Fondo Rojo 000-255 Manual...
  • Page 28 D I M M E R M O D E S A N D C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default)

  • Page 29: Remote Functions

    R E M O T E C O N T R O L G U I D E L I N E S REMOTE FUNCTIONS The functions available on the ADJ UC IR24 remote unit are detailed below: • ON: Activates the fixture.

  • Page 30: Blue Amber

    I R D E F A U L T V A L U E S BUTTON GREEN BLUE AMBER E D I T I N G I R B U T T O N V A L U E S These fixtures allow the user to create custom RGBA values and assign them to the numbered keys (0-15) on the remote control.

  • Page 31: D M X S E T U P

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

  • Page 32: Dmx Addressing

    D M X S E T U P DMX ADDRESSING All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The assignment of this starting DMX address is achieved by setting the correct DMX address on the digital control display on the fixture. You can set the same starting address for all fixtures or a group of fixtures, or set different addresses for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react in the same way. In this case, please note that changing the settings of one channel will affect all the fixtures simultaneously. If you set each fixture to a different DMX address, each unit will “listen” starting at the channel num- ber you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture. As an example, when operating this device in 6 channel mode, you should set the starting DMX address of the first unit to 1, the second unit to 7 (1 + 6), the third unit to 13 (1 + 6 + 6), and so on. (See the chart below for more details.) Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address 5 Channels 6 Channels 9 Channels 13 Channels...

  • Page 33: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 0-255 All Red, 0~100% 0-255 All Green, 0~100% All Blue, 0~100% 0-255 All Amber, 0~100% 0-255 All Lime, 0~100% 0-255 0-255 All UV, 0~100% 0-255 Red1, 0~100% Green 1, 0~100% 0-255 Blue 1, 0~100% 0-255...
  • Page 34 D M X T R A I T S CHANNEL FUNCTION VALUES RGBAL+UV programs: 0-10 11-26 Auto Program 1 27-43 Auto Program 2 44-60 Auto Program 3 61-76 Auto Program 4 77-93 Auto Program 5 94-110 Auto Program 6 111-126 Auto Program 7 127-143 Auto Program 8 144-160 Auto Program 9 161-176 Auto Program 10...
  • Page 35 D M X T R A I T S CHANNEL FUNCTION VALUES Dim Mode 000-020 Default to Unit Setting 021-040 Standard 041-060 Stage 061-080 TV 081-100 Architectural 101-120 Theatre 121-140 Stage 2 Dim Speed 0.1 s 0.2 s 0.3 s 0.4 s 0.5 s 0.6 s...

  • Page 36: Color Temperature

    C O LO R T E M P E R AT U R E DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 2300 6300 6400 2400 2500 6500 2600 6600 2700 6700 2800 6800 2900 6900 3000 7000 3100 7100 3200...
  • Page 37 C O L O R M A C R O S C H A R T: R G B A L + U V RGBWAL+UV COLOR VALUES RGB COLOR Color Color Value Value GRN BLUE AMB LIME RED GREEN BLUE Color Macro 33 129-132 Color Macro 1 Color Macro 34 133-136...
  • Page 38 C O L O R M A C R O S C H A R T: B A C K G R O U N D RGB COLOR INTENSITY RGB COLOR INTENSITY Color DMX Value Color DMX Value GREEN BLUE GREEN BLUE Color Macro 33 129-132...
  • Page 39 P I X E L F L I P PIXEL FLIP 1 PIXEL FLIP 2...

  • Page 40: R E M O T E D E V I C E M A N A G E M E N T ( R D M )

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 41: Cleaning And Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 42: Specifications

    Electronic Strobe (0.3Hz ~ 11Hz) • Rechargeable Lithium ion Electronic Dimming • Battery Capacity: 14,000mAh Attach up to two (2) ElectraPix Bar 16 to the • Battery Voltage: 22.2V Accu Stand VFB1 vertical floor base • Charge Time, AC Power: 5.5 Hours (To Full) •...
  • Page 43 D I M E N S I O N S Dimensions are not drawn to scale. 8.7in. [221.2mm] 6.0in. [152.2mm] 6.5in. [166.0mm] 10.8in. [274.2mm] 3.1in. [79.0mm] 3.4in. [86.0mm]...

  • Page 44: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM ELE160 1226100503 ElectraPix Bar 16 UC1024 810087371388 UCIR24 Remote ACC111 810087372699 Accu Stand VFB1 (Floor Base) LTR008 810087372552 LTrack A2 (LTrack Adapter Only) LTR112 810087372576 LTrack CA2 (LTrack Adapter with Narrow Clamp) PENDING PENDING EPIX B816 IPCB: replacement charging base & power supply TRIGGER CLAMP N/A Heavy Duty Wrap Around Hook Style Clamp AC5PDMX5PRO...
