Ground
3.3V Power
No Signal
Switch

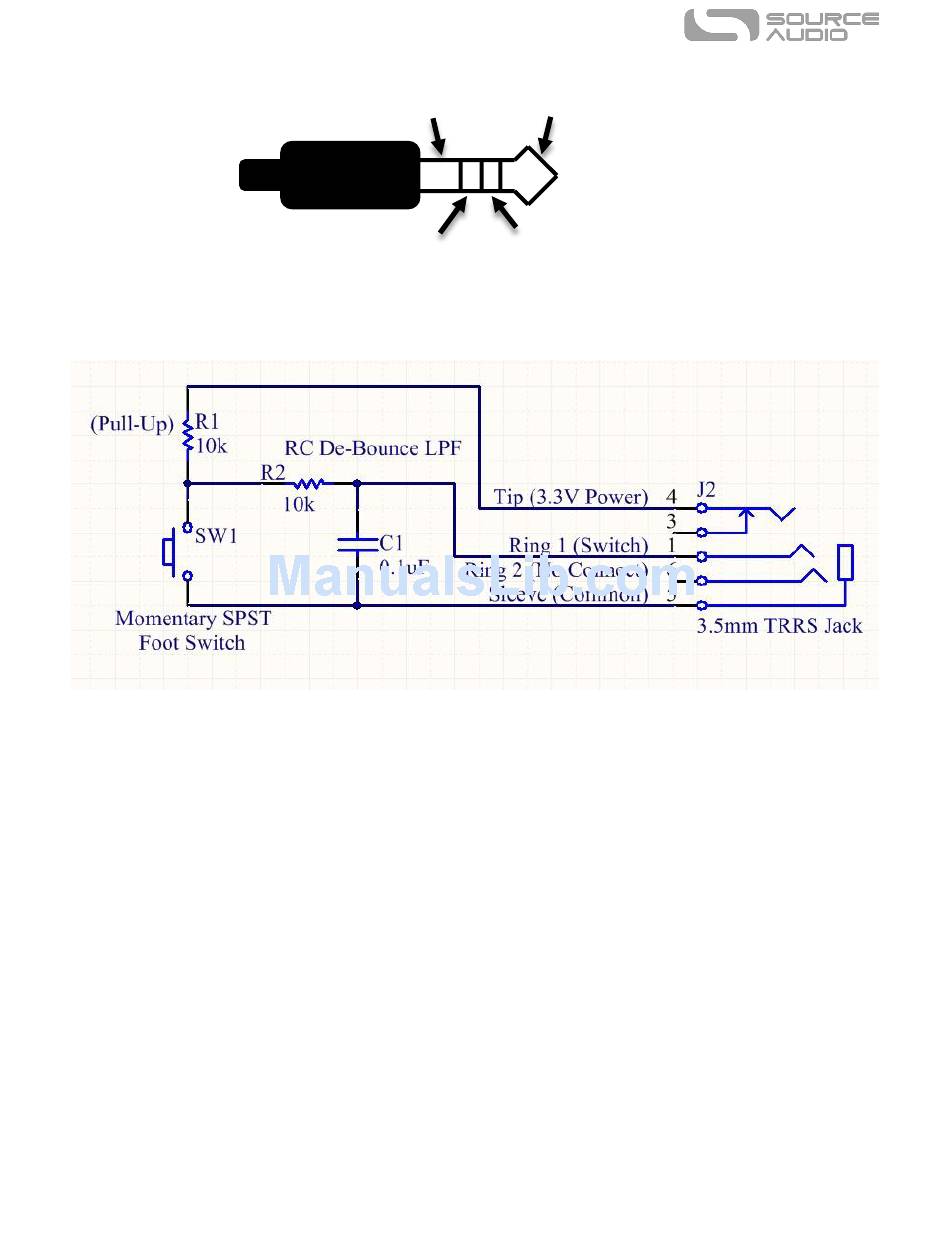

The tap tempo switch needs to be more than a simple switch; a pull-up resistor and RC passive low
pass filter are required. The circuit for the footswitch is shown in the following figure:
SA241
Lunar Phaser User's Guide
25
