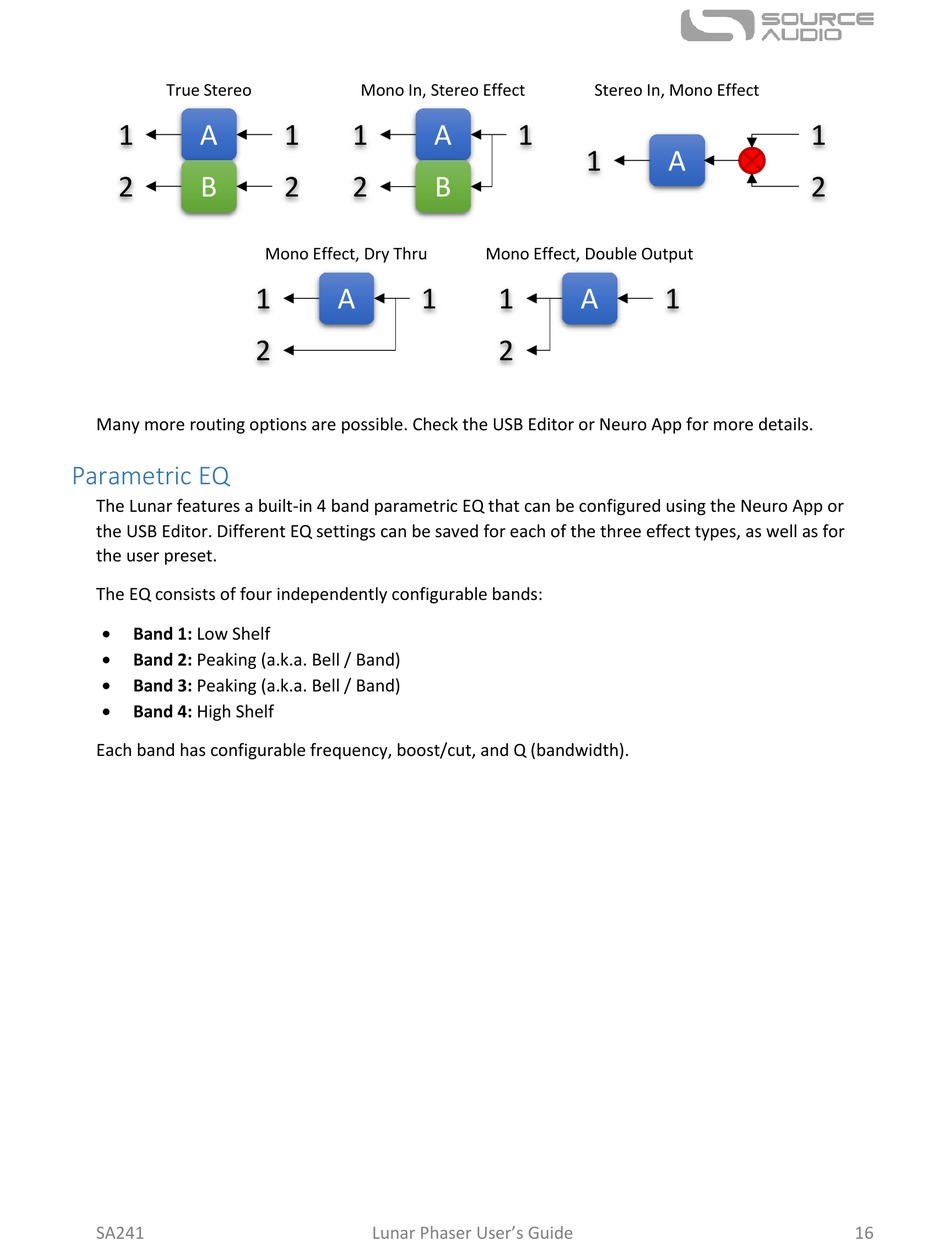

Parametric Eq - Source Audio Lunar Phaser User Manual

True Stereo
1 A
2 B
Many more routing options are possible. Check the USB Editor or Neuro App for more details.

Parametric EQ

The Lunar features a built-in 4 band parametric EQ that can be configured using the Neuro App or
the USB Editor. Different EQ settings can be saved for each of the three effect types, as well as for
the user preset.
The EQ consists of four independently configurable bands:

Band 1: Low Shelf

Band 2: Peaking (a.k.a. Bell / Band)

Band 3: Peaking (a.k.a. Bell / Band)

Band 4: High Shelf
Each band has configurable frequency, boost/cut, and Q (bandwidth).
SA241
Mono In, Stereo Effect
1 1
2 2
Mono Effect, Dry Thru
1 A 1
2
Lunar Phaser User's Guide
Stereo In, Mono Effect
A 1
1
B
Mono Effect, Double Output
1 A
2
1
A
2
1
