Wiring the Twisted Pair RJ-45 Connectors

When using STP cable, connect/solder the cable shield to the RJ-45 connector
shield. Figure
connectors.
i
EIA /TIA 568B
PIN
1
2
3
4
5
6
7
8
Pair 1
Pair 2
Pair 3
Pair 4
!
VM-1H4C – Wiring the Twisted Pair RJ-45 Connectors
3 defines the TP pinout using a straight pin-to-pin cable with RJ-45
Note, that the cable Ground shielding must be connected/soldered to
the connector shield.

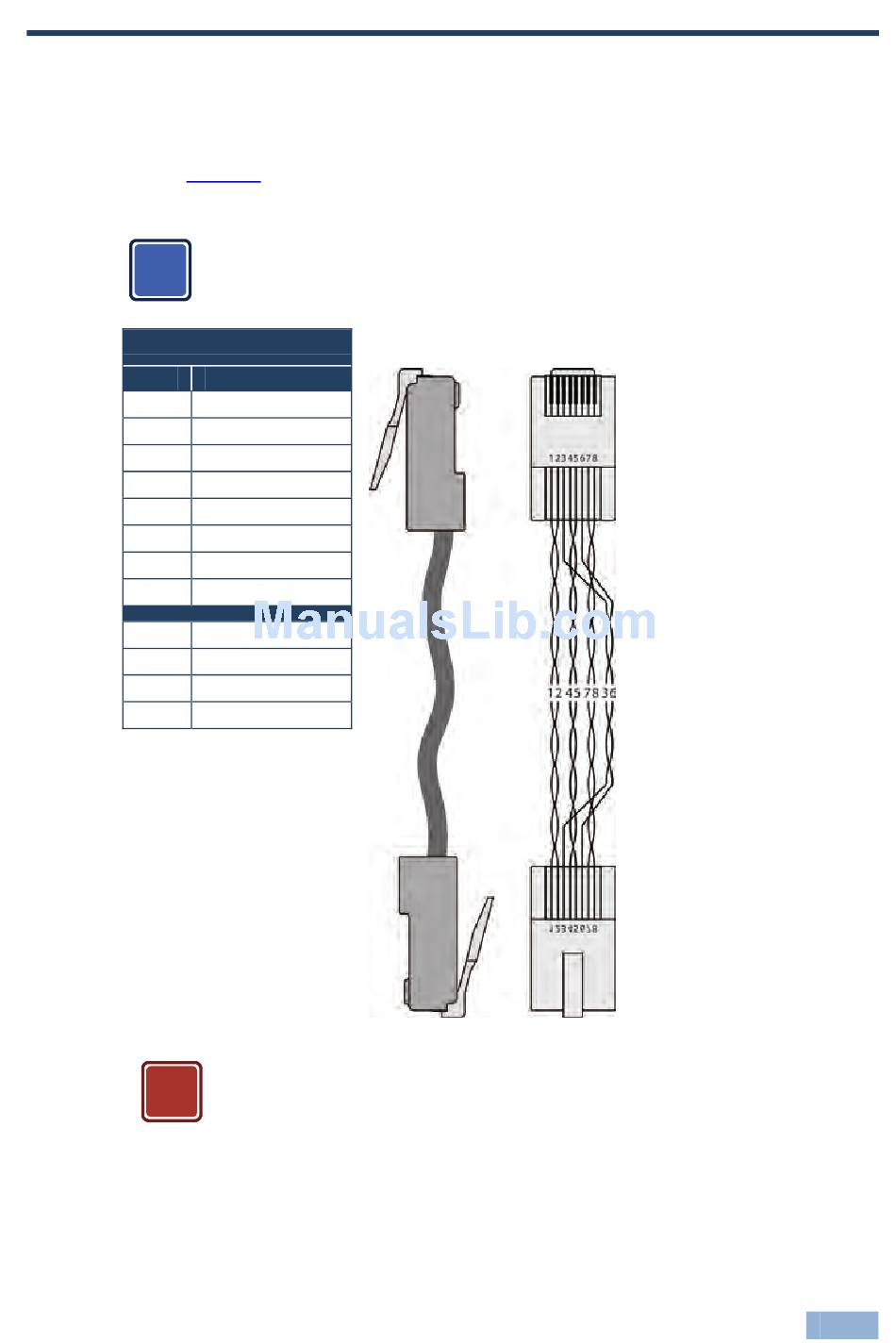

Figure 3: TP Pinout Wiring
Wire Color
Orange / White
Orange
Green / White
Blue
Blue / White
Green
Brown / White
Brown
4 and 5
1 and 2
3 and 6
7 and 8
Warning: Using a TP cable that is incorrectly wired may cause
permanent damage to the device
