Wiring the Twisted Pair LINE IN / LINE OUT RJ-45 Connectors

Table 2 and
pin-to-pin cable with RJ-45 connectors (note, that the cable Ground
shielding must be connected / soldered to the connector shield):

Table 2: CAT 5 PINOUT

EIA /TIA 568A
PIN Wire Color
1 Green / White
2 Green
3 Orange / White
4 Blue
5 Blue / White
6 Orange
7 Brown / White
8 Brown
Pair 1 4 and 5
Pair 2 3 and 6
Pair 3 1 and 2
Pair 4 7 and 8
1 CAT 6 or similar (heavier gauge) cabling can also be used
Using the TP-575 HDMI Line Receiver / DA
Figure 3 define the STP CAT 5 PINOUT
EIA /TIA 568B
PIN Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
Pair 1 4 and 5
Pair 2 1 and 2
Pair 3 3 and 6
Pair 4 7 and 8
1
, using a straight

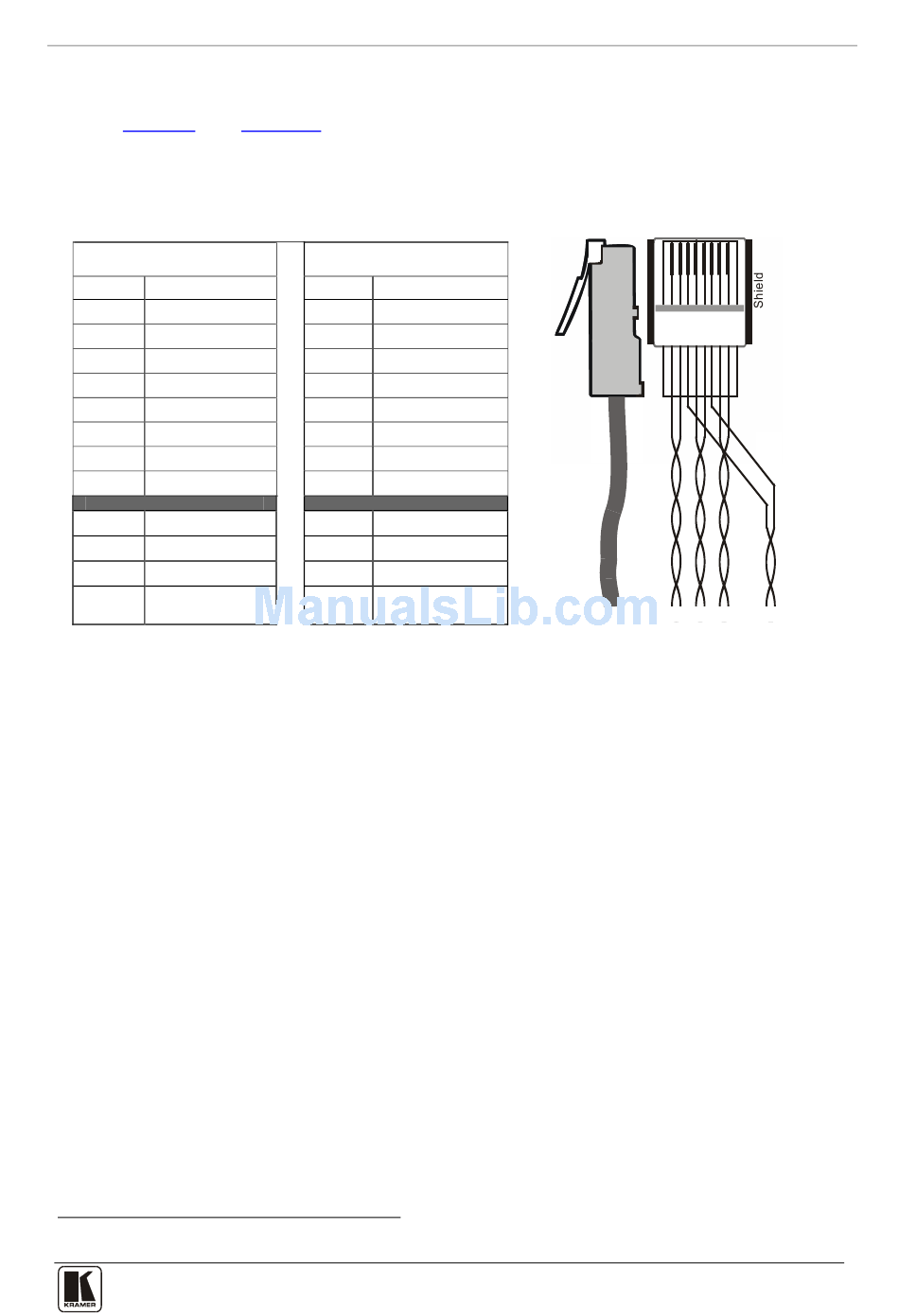

Figure 3: CAT 5 PINOUT

4 5 78
1 2 3 6
1 2 4 5 78 36
