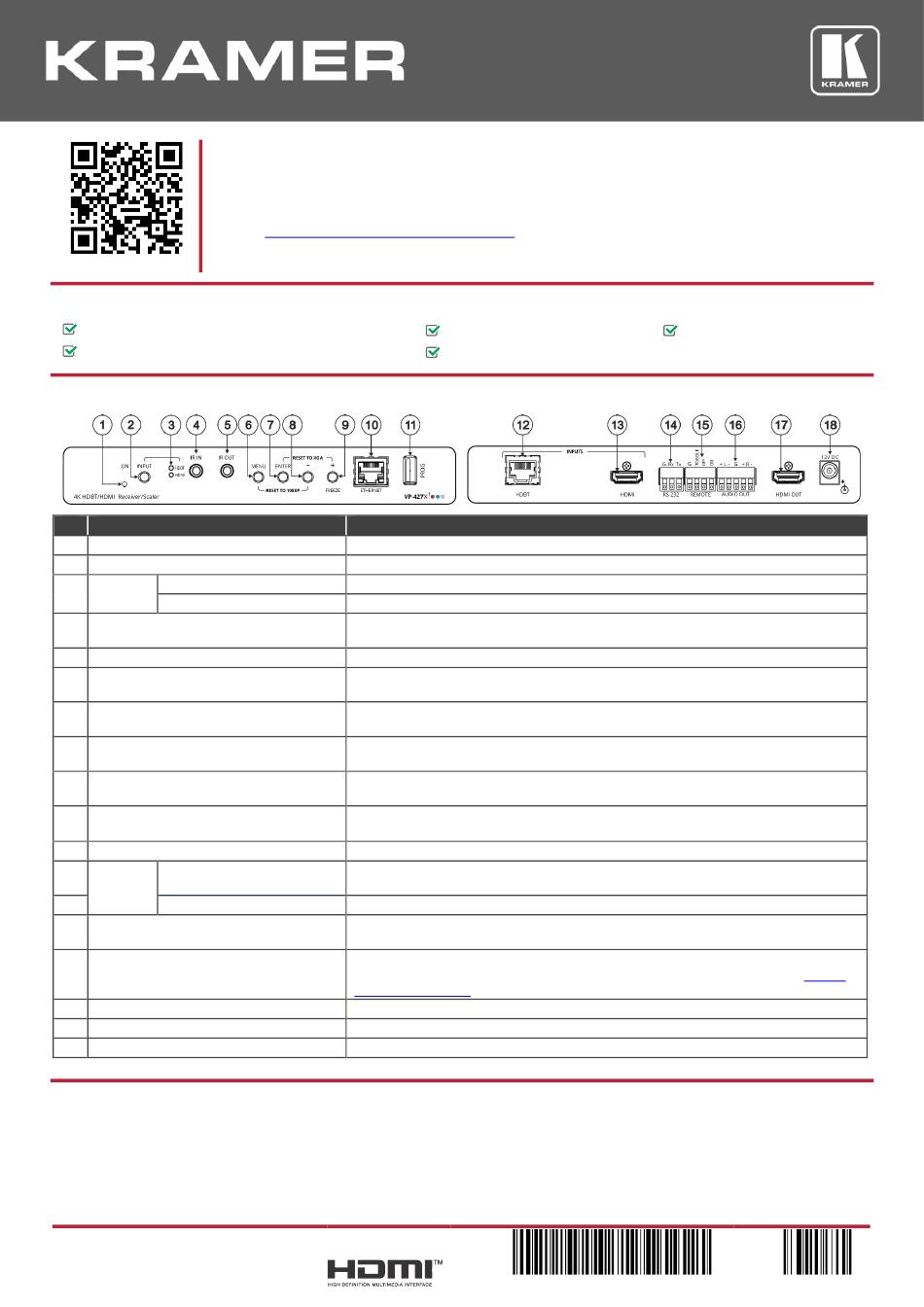

Kramer VP-427X1 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VP-427X1 4K HDBT/HDMI Receiver/Scaler
1 Power adapter and cord
Step 2: Get to know your VP-427X1
# Feature
1 ON LED
2 INPUT Select Button
3 INPUT HDBT
LEDs
HDMI
4 IR IN 3.5mm Mini Jack
5 IR OUT 3.5mm Mini Jack
6 MENU Button
7 ENTER Button
– Button
8
9 FREEZE/+ Button
10 Ethernet RJ-45 Connector
11 PROG USB Connector
12 INPUTS HDBT RJ-45 Connector with
PoE (PD)
13 HDMI Connector
14 RS-232 CONTROL 3-pin Terminal Block
Connector
15 REMOTE Contact-Closure 4-pin
Terminal Block Connector
16 AUDIO 5-pin Terminal Block Connector
17 HDMI OUT Connector
18 12V DC Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount VP-427X1
VP-427X1 Quick Start
VP-427X1 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VP-427X1
upgrades are available.
Function
Lights green when device is powered by power supply or PoE (PD).
Press to select the input (HDBT or HDMI).
Lights blue when the HDBT input is selected.
Lights blue when the HDMI input is selected.
Connect to an IR sensor to control a remote device connected to the transmitter side
via HDBT tunneling.
Connect to an external IR emitter to control a local device from the transmitter side.
Press to enter/exit the on-screen display (OSD) menu. Press together with the –
button to reset the output to 1080p resolution.
In OSD, press to choose the highlighted menu item. Press together with the
FREEZE/+ button to reset the output to XGA resolution (1024x768).
In OSD, press to move back through menus or decrement parameter values. Press
together with the MENU button to reset the output to 1080p resolution.
In OSD, press to move forward through menus or increment parameter values. When
not in OSD, press to freeze the display.
Connect to a PC via a LAN to setup and monitor the
software, as well as upgrade the firmware.
Connect to a USB stick to perform firmware upgrades.
Connect to a transmitter (for example, the Kramer TP-789Txr).
Connect to an HDMI source.
Connect to a serial controller or PC.
Connect to contact closure switches, an occupancy sensor and/or toggle switches
(contact between the desired pin and GND pin), to turn display on or off (see
Operate
Connect to a balanced stereo audio acceptor.
Connect to an HDMI acceptor.
Connect to the supplied power adapter.
VP-427X1 for the first time.
to download the latest user manual and check if firmware
2 Bracket sets
4 Rubber feet
VP-427X1).
P/N: 2 9 0 0 - 3 0 1 4 2 7 QS
1 Quick start guide
VP-427X1 via the Windows
Step 6:
Rev: 2
