4 Defining the VM-1H4C 1:4 HDMI Over CAT 5
DA
The VM-1H4C encodes the HDMI and IR signals and transmits them over TP
cable to a compat ble receiver (for example, the Kramer TP-574 HDMI/RS-232/IR
Line Receiver).
Figure 1

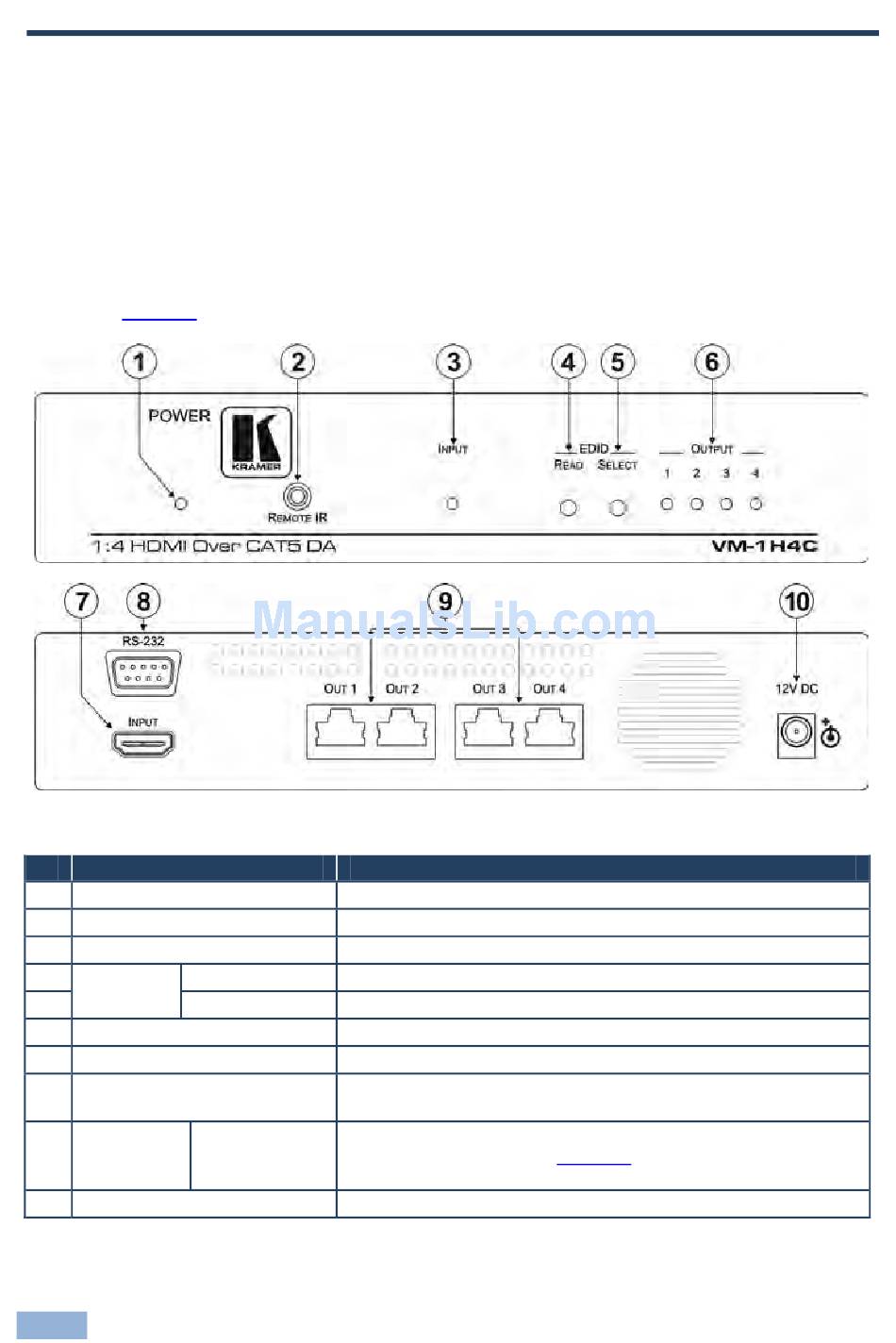

Figure 1: VM-1H4C 1:4 HDMI Over CAT 5 DA Front and Rear Panels
# Feature
1 POWER LED
2 REMOTE IR 3.5mm Mini Jack
3 INPUT LED
4 READ Button
EDID
5 SELECT Button
6 OUTPUT LEDs
7 INPUT HDMI Connector
8 RS-232 9-pin D-sub
Connector
9 OUT 1 ~ 4
10 12V DC Power Connector
6
defines the front and rear panels of the VM-1H4C.
Function
Lights green when the unit receives power
Connect to the remote IR blaster or receiver
Lights green when the input receives a signal
Press to capture the EDID from the active output
Press to select the output from which to capture the EDID
The relevant LED lights green when the output is connected
Connect to the HDMI source
For the use of Kramer service personnel only
TP Output Connect to the LINE IN RJ-45 connector on the TP receivers,
RJ-45 for example, TP-574 (See
Connectors
Connect to the +12V DC power adapter. Center pin positive
VM-1H4C – Defining the VM-1H4C 1:4 HDMI Over CAT 5 DA
Section 7 )
