Scan for full manual
Step 1: Check what's in the box
VM-1H4C
1:4 HDMI Over CAT5 DA
Power adapter (12V DC)
IMPORTANT NOTICE!
We highly recommend using only Kramer UNIKAT cables with these products. If using 3
shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-
span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the
extension line cable is lying straight and not coiled.

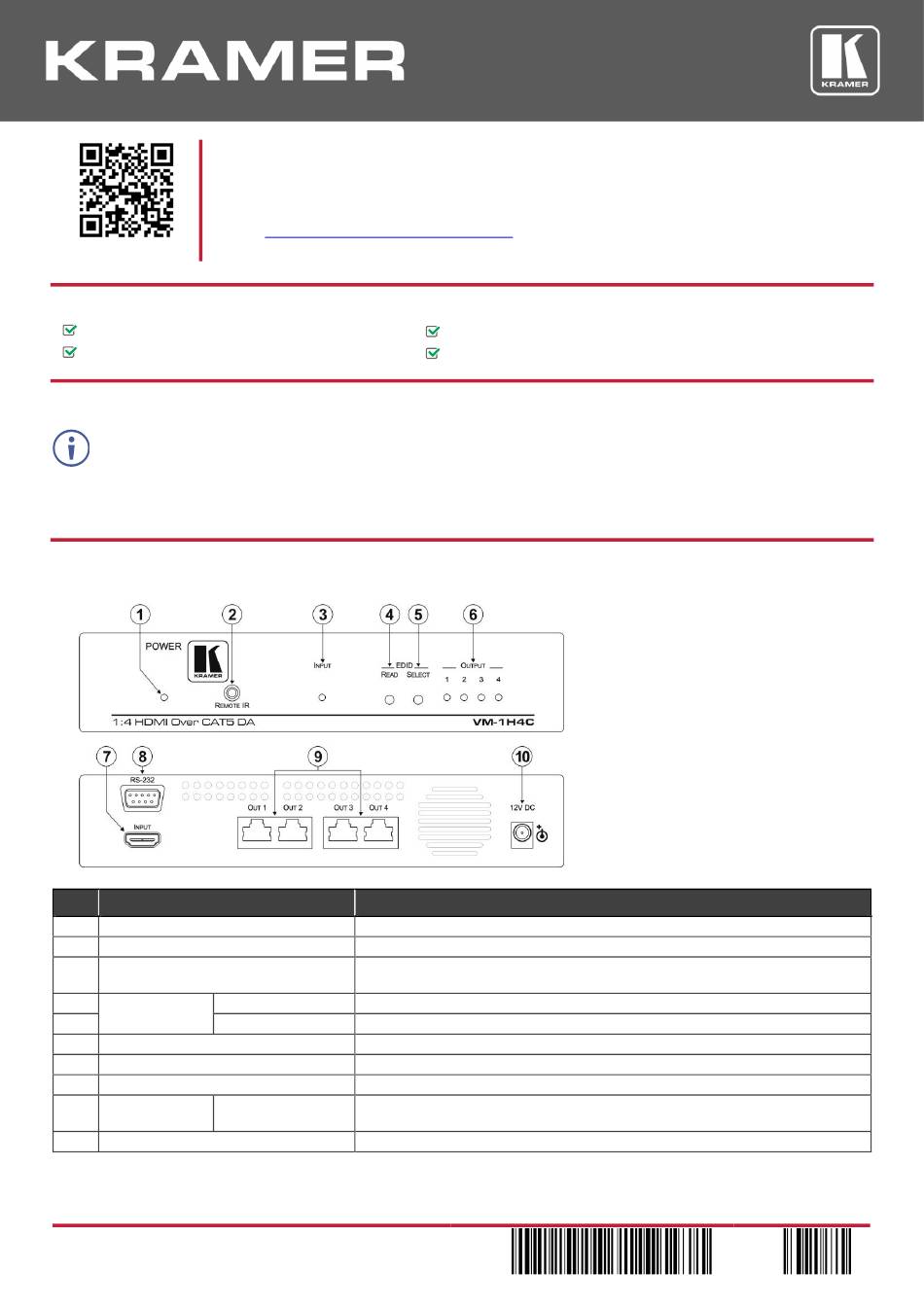

Step 2: Get to know your VM-1H4C
#
Feature
1
POWER LED
2
REMOTE IR 3.5mm Mini Jack
3
INPUT LED
4
EDID
READ Button
5
SELECT Button
6
OUTPUT 1~4 LEDs
7
INPUT HDMI Connector
8
RS-232 9-pin D-sub Connector
9
OUT 1 ~ 4
TP Output RJ-45
Connectors
10
12V DC Power Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VM-1H4C Quick Start
VM-1H4C Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VM-1H4C
upgrades are available.
Function
Lights green when the unit receives power
Connect to the remote IR emitter or receiver
Lights green when the input receives a signal. Flashes when connected but there
is no active signal
Press to capture the EDID from the active output
Press to select the output from which to capture the EDID
The relevant LED lights green when that output is connected
Connect to the HDMI source
Connect to an RS-232 controller
Connect to the LINE IN RJ-45 connector on the TP receivers
Connect to the +12V DC power adapter. Center pin positive
VM-1H4C
for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
rd
party shielded CAT-6A cables, both ends of the
P/N: 2 9 0 0 - 3 0 1 2 2 3 QS
Rev: 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer VM-1H4C
Summary of Contents for Kramer VM-1H4C
- Page 1 1 Power cord IMPORTANT NOTICE! We highly recommend using only Kramer UNIKAT cables with these products. If using 3 party shielded CAT-6A cables, both ends of the shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid- span cable connections.
- Page 2 • Reliable earthing of rack-mounted equipment should be maintained. Step 4: Connect inputs and outputs Always switch OFF the power on each device before connecting it to your VM-1H4C. To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-1H4C.
