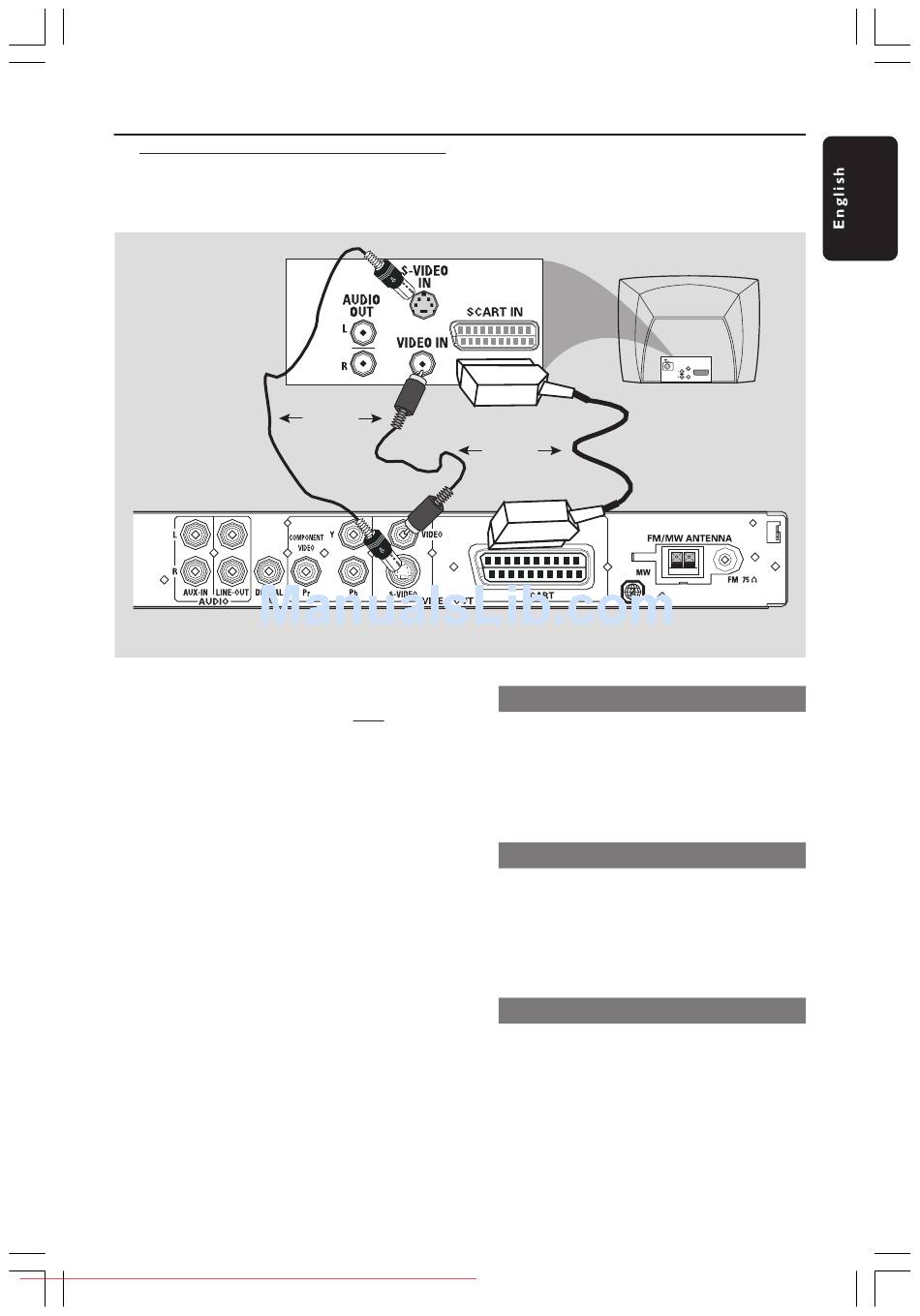

Step 3: Connecting TV

IMPORTANT!
– You only need to make one video
connection from the following
options, depending on the
capabilities of your TV.
– Connect the DVD system directly
to the TV.
– Scart (RGB) Video provides better
picture quality than S-Video and
Composite Video. These options
must be available on your TV.
Helpful Hint:
– To hear the TV channels through this DVD
system, use the audio cables (white/red - not
supplied) to connect AUX IN jacks to the
corresponding AUDIO OUT jacks on the TV
(not required if you are using Scart
connection).
Downloaded From TheatreSystem-Manual.com Manuals
001-047-LX83-22-Eng
OR
G
G
G
11
Connections
OR
Using Scart jack
Use the supplied scart video cable (black)
to connect the DVD system's SCART
jack to the corresponding Scart input
jacks on the TV.
OR

Using S-Video jack

Use an S-video cable (not supplied) to
connect the DVD system's S-VIDEO
jack to the S-Video input jack (or labelled
as Y/C or S-VHS) on the TV.
OR

Using Composite Video jack

Use a composite video cable (yellow -
not supplied) to connect the DVD
system's VIDEO jack to the video input
jack (or labelled as A/V In, Video In,
Composite or Baseband) on the TV.
6/9/04, 2:02 PM
S-VIDEO
IN
AUDIO
OUT SCART IN
VIDEO IN
11
