Connections
Step 4: Connecting a
IMPORTANT!
– The progressive scan video quality
is only possible when using Y Pb Pr
and a progressive scan TV is required.
– DO NOT connect both SCART
and Y Pb Pr to a TV, it may affect the
picture quality.

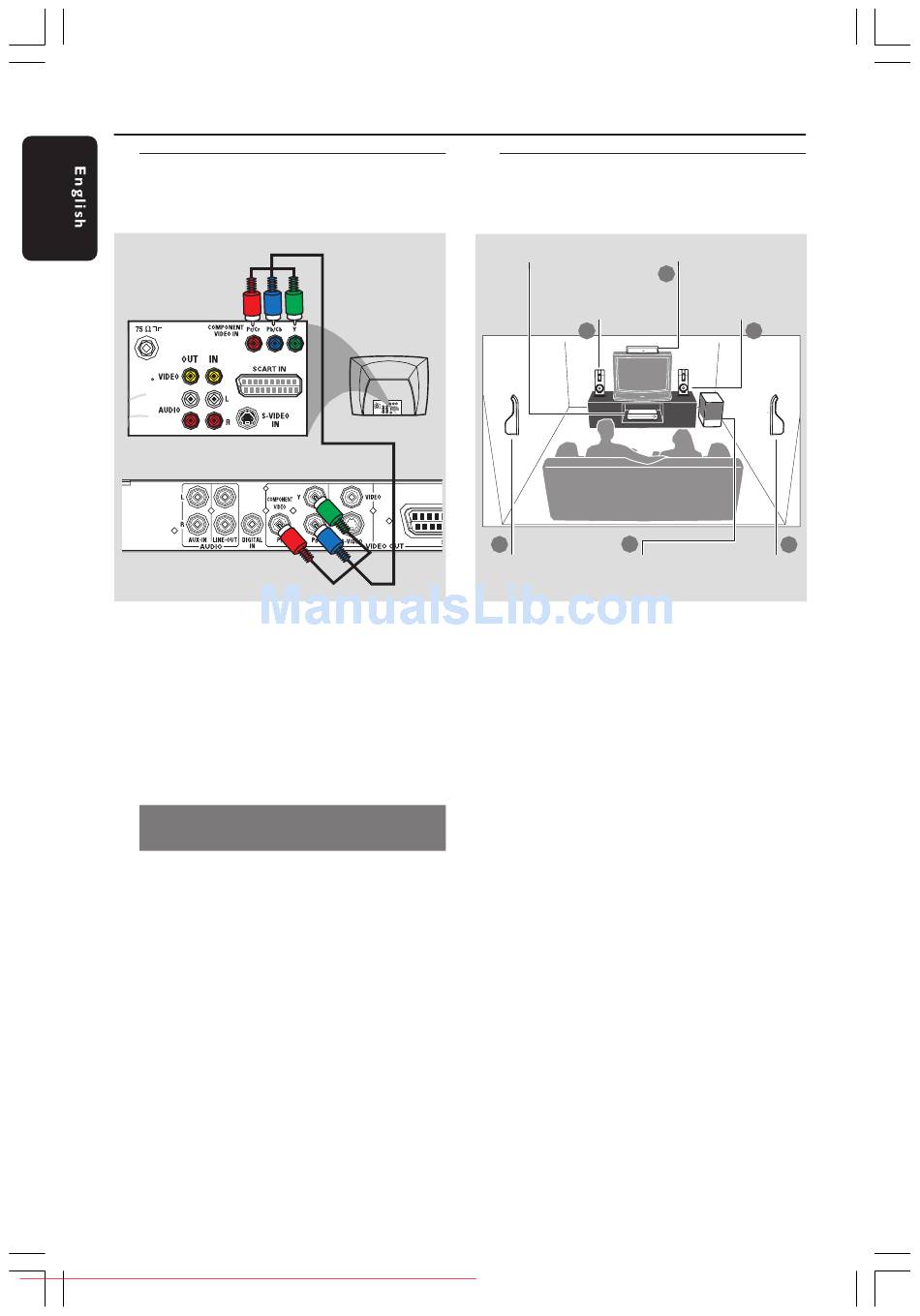

Using Component Video jacks
(Y Pb Pr)
1
Use the component video cables (red/
blue/ green - not supplied) to connect the
DVD system's Y Pb Pr jacks to the
corresponding component video input
jacks (or labelled as Y Pb/Cb Pr/Cr or
YUV) on the TV.
2
Change the component video setting
manually to YUV, see page 19.
3
Activate the progressive scan function,
see page 34.
12
Downloaded From TheatreSystem-Manual.com Manuals
001-047-LX83-22-Eng
Progressive Scan TV
12
Step 5: Placing the speakers
and AV subwoofer
Centre speaker
DVD System
Front Speaker
(Left)
1
4
3
Rear speaker AV Subwoofer
(Left)
For best possible surround sound, all the
speakers (except AV subwoofer) should
be placed at the same distance from the
listening position.
1
Place the front left and right speakers at
equal distances from the TV and at an
angle of approximately 45 degrees from
the listening position.
2
Place the centre speaker above the TV so
that the centre channel's sound is
localised.
3
Place the rear speakers at normal
listening ear level facing each other or
hang on the wall.
4
Place the AV subwoofer on the floor near
the TV.
Helpful Hints:
– To avoid magnetic interference, do not
position the front speakers too close to your
TV.
– Allow adequate ventilation around the
DVD system/AV subwoofer.
6/9/04, 2:02 PM
2
Front Speaker
(Right)
1
3
Rear speaker
(Right)
