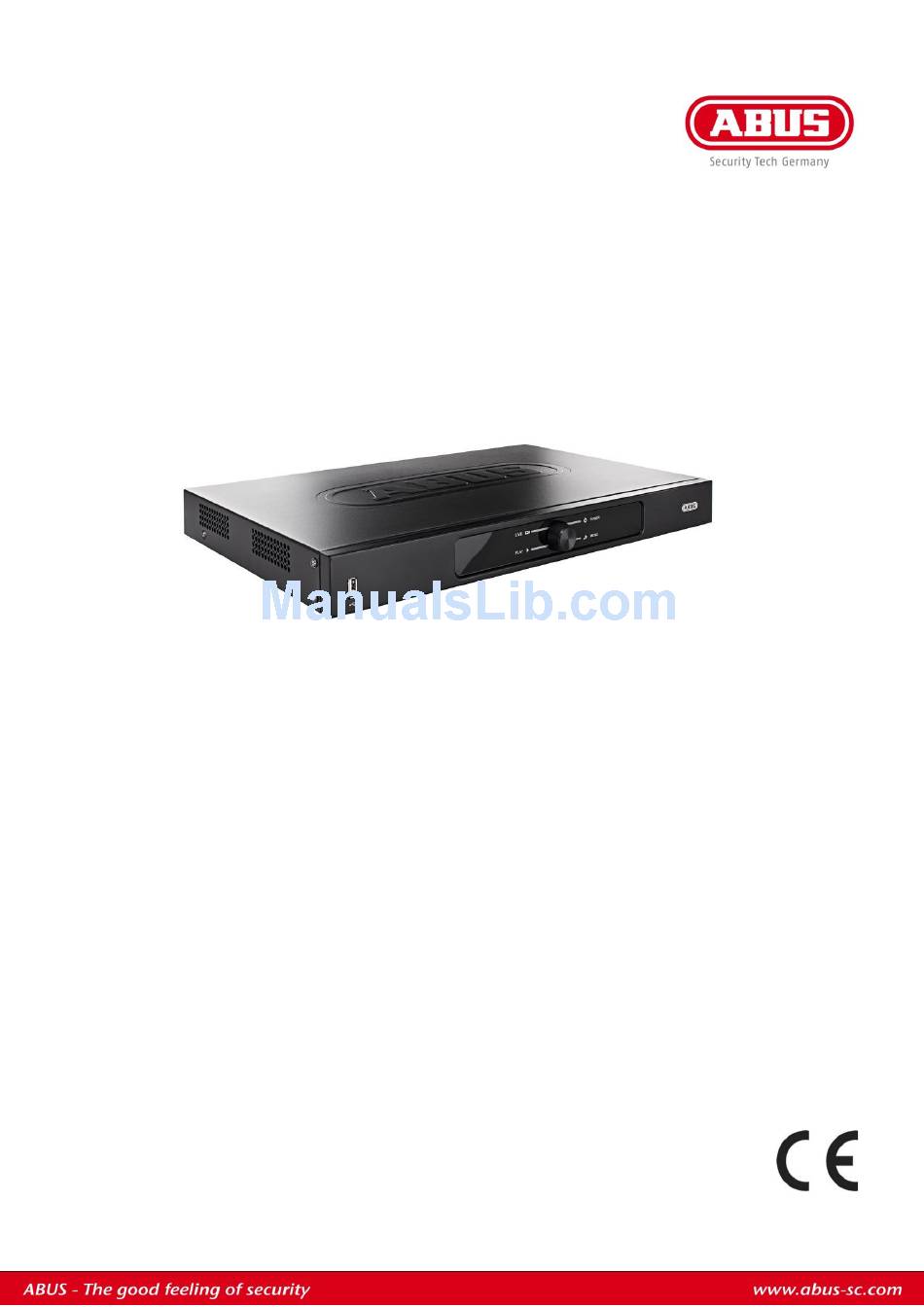

- Page 1 ABUS 5-channel network recorder TVVR35002 User guide Version 1.0...
-
Page 2: Device Overview
English This user guide contains important information on starting operation and using the device. Make sure that this user guide is handed over when the product is given to other persons. Keep this user guide to consult later. A list of contents with the corresponding page number can be found in the index. -
Page 3: Front Side
Device overview Front side Rear side... -
Page 4: System Operation
System operation System operation General The device can be controlled using the following: Operating with a mouse the jog dial on the front of the device Note a USB mouse The further descriptions contained in this user guide involve using a mouse. Connections at the back of the device The device is suitable for use with a USB mouse. -
Page 5: Status Overview
Status overview General The following status displays provide information about the operating status: LEDs on the front of the device acoustic signal tones icons (display elements) on the monitor. NVR LED four-way status display Status Function Segment lights up System status OK;... -
Page 6: Table Of Contents
Contents Device Overview ................................2 Front side ..................................3 Rear side ..................................3 System operation ................................4 General .................................... 4 Connections at the back of the device ..........................4 Operating with a mouse ..............................4 Operating with the jog dial ............................... 4 Status overview ................................ - Page 7 Contents Setting the camera output ............................. 20 Playback in the Live view .............................. 21 General ..................................21 Playback screen ................................21 Control via the control panel ............................21 Selecting playback type ..............................22 Device menu ................................... 23 Menu overview ................................23 Settings ...................................
- Page 8 Contents Local Advanced Operation............................. 47 Panic Recording ................................49 Recording ..................................49 Alarm ....................................49 Video Export ................................... 50 Normal.................................... 50 Event ....................................51 Maintenance ................................... 52 System Info ..................................52 Log Information ................................52 Import/Export ................................. 53 Upgrade ..................................53 Default ....................................
-
Page 9: Quick Guide
First make a connection to the motherboard with the Note blue data cable (small connector). Check the ABUS homepage (www.abus.com) if Connect the power supply cable (large 5-pin for this device any firmware updates are connector). -
Page 10: Important Safety Information
Important safety information Important safety information Explanation of symbols General information The following symbols are used in this manual and on the Before using the device for the first time, read the device: following instructions carefully and pay attention to all warnings, even if you are already familiar with electronic Symbol Signal word Meaning devices. -
Page 11: Overloading / Overvoltage
Important safety information To avoid the possibility of fires, the plug should always be Installation location / operating disconnected from the network socket if the device is not environment used for long periods. Disconnect the device from the mains power supply before impending electrical storms, Position the device on a firm, level surface and do not or use an uninterruptible power supply. -
Page 12: Care And Maintenance
Important safety information Care and maintenance Putting into operation Maintenance is necessary if the device has been Observe all safety and operating instructions before damaged. This includes damage to the plug, mains cable putting the device into operation for the first time. and housing, penetration of the interior by liquids or ... -
Page 13: Introduction
Quick guide contact us under the address shown on the back of the manual. ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and operating instructions at any time and without prior warning. -
Page 14: Keyboard
Introduction Keyboard Switching off, locking and rebooting the The on-screen keyboard appears after clicking on a text device entry field with the mouse: Click on “ShutDown” in the main menu. The overview appears. The following screen keyboard appears during mere numerical entry: To switch off the device, select ShutDown and confirm by pressing Yes. -
Page 15: Setup Wizard
Setup wizard Setup wizard Setting up the system Setting up the administrator The setup wizard guides you through the necessary Warning basic system settings. The network video recorder is then Note down the admin password. set up for recording and surveillance. The following password is preset Note “1 2 3 4 5”... -
Page 16: Network Settings
Setup wizard Network Settings HDD Management To set up a new hard disc, activate the “Check box” Note with a left click and then click on Init. To check whether DHCP can be selected (or if Warning you have to set the IP address and other settings manually), consult your network administrator. -
Page 17: Camera Assistant
Setup wizard Camera assistant Camera recording For “Camera”, select a network camera which you 1. Click Search to see the network cameras in your want to record with Activate the check box “Start recording”. network. 2. To add network cameras, activate the required Select the type of recording. -
Page 18: Live View
Live view Live view Status symbols Overview The following symbols are displayed depending on Live view starts automatically when the device is the operating status of the device: switched on. Symbol Meaning Yellow: motion recording recording only upon motion detection Blue: recording ... -
Page 19: Selection Bar In The Camera Image
Live view Note Start Auto-switch: Specify the display sequence delay in the display settings. Note Activation of "AUX monitor" without a connected spot monitor: mouse pointer function is deactivated. Selection bar in the camera image In single or multi-screen, click on a camera image. A selection bar will appear: (6) (7) No Meaning of the symbol... -
Page 20: Settings
Live view Settings No HDMI monitor connected: If no HDMI cable is connected to the monitor Note when the device is started up, the main video The following settings are available for the live signal will be emitted at the main VGA connection. view. -
Page 21: Playback In The Live View
Playback in the Live view Playback in the Live view Control via the control panel General The control panel (4) is used to control running playback. There are three different options for playback: The symbols have the following meanings: Through the event search in the main menu ... -
Page 22: Selecting Playback Type
Playback in the Live view 10 Reverse playback. Selecting playback type 11 Stop playback. 12 Start/pause playback. Selecting the playback type (5) allows various types of recording and event to be displayed and filtered in the 13 Go back 30 seconds. playback view. -
Page 23: Device Menu
Device menu Device menu You can also see important information about your Menu overview device on the right-hand side. The following menu overview shows the main menus Click on the menu you need to open it. used to set and control the device. ... -
Page 24: Settings
Settings Settings Menu description Menu Description Configuration Used to manage all device settings (General, Network, Live View, Warning and User). Camera Menu for setting camera parameters (OSD configuration, image mode, motion detection, private zone, tamper monitoring and video loss). recording Menu for setting recording parameters (schedule, camera resolution, holiday etc.) Used to initialise and manage a built-in hard disk drive (assign read/write functionality, cameras, manage network drive etc.) -
Page 25: Configuration
Configuration Configuration General settings Note The Configuration menu is used to manage all General tab Setting device settings. Language On-screen display language. CVBS Output Video output format at BNC video Warning Standard output (PAL/NTSC). Ensure that the date and time are set correctly. Resolution Monitor resolution ATTENTION:... - Page 26 Configuration Below there is an overview of terms related to using the DST Settings Setting device on networks. Parameter Setting Auto DST If the box is ticked, the device Adjustment switches automatically to daylight IP address An IP address is the unique address of saving time.
-
Page 27: Network Layout
Configuration avoid problems occurring. DDNS Server for Dynamic Domain Name System management used to update Port A port is an interface that enables host names and DNS entries. different programs to communicate. Certain ports are fixed (23: Telnet, 21: Network Time Protocol. FTP), whilst others can be freely Server for time synchronisation. -
Page 28: General Tab
IP address of the alternative DNS Server server. Report network Box ticked: To be able to use the ABUS DDNS function, you first interruption Acoustic alarm in the event of a need to set up an account at www.abus-server.com. network interruption. -
Page 29: Ntp Tab
Configuration Sender's The email address linked to the NTP tab Address email account Select Select three potential recipients for Receivers the email Receiver Enter the name of the recipient here Receiver's Enter the email address of the Address recipient Enable Attached Tick the box if camera recordings Picture should also be sent with the email as... -
Page 30: Upnp Tab
The IP If UPnP is enabled, the network ports configured by UPnP are transferred address must correspond to the one to the ABUS server (provided that in the video surveillance software. ABUS DDNS is enabled). RTSP Port... -
Page 31: Alarm
Configuration Settings Alarm Trigger Channel tab Alarm Status tab Here you can see a list of all the alarm inputs and outputs and their current status. Tick the corresponding box to select which camera channel is triggered in the event of an alarm. Alarm Input tab Arming Schedule tab Parameter... -
Page 32: Alarm Output Tab
Configuration Call Pattern Select the pattern number. Confirm the settings by clicking on Apply and exit the menu by clicking on OK. Alarm Output tab Parameter Notifications Full Screen Monitoring The camera is displayed in full screen in live view. Parameter Setting Audible Warning... -
Page 33: Warning
Configuration In user management, you can add new users, delete Warning users, and amend existing settings. To add a new user, select Add. Set the response of the recorder for warning messages and system events here. To do this, activate the "Enable Event Hint"... - Page 34 Configuration Control the access permission of the user by clicking on Warning the "Permission" icon. Only the access data of users Change the general settings of the user (name, added manually can be changed: password, level, MAC address) by clicking on the "Edit"...
-
Page 35: Camera
Click on Refresh to display the cameras on your camera, please check in advance that it is on the network. compatibility list at www.abus.com. The camera Click on Delete to delete the cameras you have already functionality supported by the recorder may be added. -
Page 36: Ip Camera Import/Export Tab
Camera Click on Protocol to create a custom RSTP profile for the rtsp://192.168.0.1:554/video.h264 selected camera. Parameter Setting Rtsp:// The protocol followed by "//" Note 192.168.0.1 IP address of the camera, separated by If your camera model is not included in the dots compatibility list, you also have the option of :554... -
Page 37: Image
Camera General tab Select the Setting camera channel Select the camera channel to be processed under to be processed "Camera". This menu item is used for the configuration of under "Camera". a PTZ camera controlled via the RS-485 interface. Parameter Camera Parameter Setting... -
Page 38: More Settings Tab
Camera More Settings tab Motion Select the camera channel to be processed under "Camera". Motion detection is controlled solely using the motion information on the recorder, which has been detected by Presets the camera. When the camera is connected to the Save and retrieve individual system, the recorder automatically sets a standard preset positions. - Page 39 Camera Trigger Channel Under Copy, select whether or not the setting should be applied to every day of the week and the holiday When you click on "Settings", the Trigger Channel tab settings. will appear (only for motion detection): Confirm the settings by clicking on Apply and exit the menu by clicking on OK.
-
Page 40: Video Loss
Camera Video Loss Linkage Action Select the Linkage Action tab. Here you can configure the response of the recorder during an event (e.g. motion detected) by ticking the corresponding box. Select the camera channel to be processed under "Camera". Tick the Enable Video Loss Alarm box and define any other optional parameters under "Settings". -
Page 41: Recording
Recording Recording Yellow Motion detection Schedule Alarm Open the main menu and click on Record. There are two Orange Motion or alarm types of configuration and data recording available: Light blue Motion and alarm recording Configuration of video stream Grey No selection recording from connected IP ... -
Page 42: Parameters
Recording 4. Specify the recording type in the drop-down menu for "Type": Normal Motion Alarm Motion or alarm Note For "Normal", you define the time period for recording. The other triggers, such as motion detection, only trigger recording when the specific trigger has occurred. -
Page 43: Record Tab
Recording There are three types of configuration available: recording Quality settings for continuous and event-based recording. Substream Quality settings for the substream, which is used for the live image display. Capture Quality settings for capturing single images. Record tab The following setting options are available in this submenu: Parameter Setting... -
Page 44: Substream Tab
Recording Substream tab Capture tab The following parameters can be set: The following parameters can be set: Parameter Setting Parameter Setting Camera Camera Camera to be set Camera to be set Parameter Type Stream Type Individual settings for continuous Predefined video stream and event recording. -
Page 45: Holiday
Recording Holiday Click on the "Edit" icon to apply these settings In this submenu, there are 32 different recording settings for holidays or bank holidays. Name Manually enter the name of the holiday or bank holiday Enable Confirm your settings by clicking on Apply and then OK. Enable or disable the holiday set Mode By Date/By Week/By Month... -
Page 46: Hdd
General Note The device can manage two 3.5" SATA hard disk drives. The installed hard disk drives have to be initialised before the device can be used for recording. It is only then that the device will recognise the hard disk drive. -
Page 47: Local Advanced Operation
Add NetHDD Local Advanced Operation Additional data storage devices can be added to enable Here you can define the settings for the storage mode. storage across the network. Warning Mode: Quota When using NetHDDs, ensure that your network is In this mode, video data is divided between the total of a sufficient size. - Page 48 Mode: Group In this mode, video data can be specifically (and also Parameter Description redundantly) stored on selected data storage devices. HDD No. Internal hard disk drive number for the recorder. In this mode, video data is written onto the data storage device and can also be read (default setting).
-
Page 49: Panic Recording
Panic Recording Panic Recording Recording Parameter Description Press the REC button or navigate to Manual Normal Click on the icon to activate continuous Management in the main menu to start manual recording for all channels for the whole picture/video recording. The settings are identical for day. -
Page 50: Video Export
Video Export Video Export In the menu, go to Video Export to export recorded Click on to lock and unlock a file. Locked files video data and images from the recorder. The following can no longer be overwritten by the system. options are available: Normal Export video data which was... -
Page 51: Event
Video Export Note Pre-play recordings can only be viewed if recording was started before the alarm. Event Note The "Normal" and "Picture" submenus are similar and will therefore not be described separately. Define the period of the recordings to be searched for using the "Start Time"... -
Page 52: Maintenance
Maintenance Maintenance for the device and information on the various settings of the cameras, recording, alarm, network and HDD. This can be useful for support queries, for example. Log Information Note This menu is used for device maintenance and should only be used by experienced users. Note You can search for "events"... -
Page 53: Import/Export
Maintenance Login, Logout Import/Export Local: Change Settings Local: Upgrade Local: Start Recording Information HDD Information HDD S.M.A.R.T. Start Recording Stop Recording Delete Expired Record Select the event you wish to search for in the log and then select a sub-parameter. -
Page 54: Default
Maintenance Upgrades via FTP are carried out in the same way as detailed above. The PC must be on the same local network. Set up a PC as an FTP server. Enter the IP address of the FTP server . Default Sending Shows the amount of data (in... -
Page 55: Network Stat. Tab
Maintenance After the progress display finishes and initialisation is successful, an information window will appear. Close it by clicking on OK. Click on Status to display the status of the LAN connections (connected/not connected). Click on Network to change your network settings. Network Stat. -
Page 56: Checking The Hard Disk Drive Status
Maintenance Temperature (°C) Shows the hard disk drive temperature Power On Shows the operating days of the hard disk drive (days) Self-evaluation Shows the status of the self- evaluation Complete Shows the status of the evaluation evaluation Confirm the settings by clicking on Apply and exit the menu by clicking on OK. -
Page 57: Display
Maintenance Display Note See description on page 18. Settings: recording Note See description on page Fehler! Textmarke nicht definiert.. Settings: Net Detect Note See description on page 27. -
Page 58: Troubleshooting
Troubleshooting Troubleshooting Before calling the Service department, read the following information to determine the possible cause of a malfunction. Malfunction Cause Solution No power Mains cable not connected Connect the mains cable securely to the socket Power switch set to OFF Turn the power switch to ON No current in the power socket Use another device on the socket, where... -
Page 59: Technical Data
Technical data Technical data Subject is to alterations and errors. The dimensions are approximate values. ABUS digital recorder TVVR35002 Video compression H.264, MPEG-4 Camera inputs 5 x IP Monitor outputs 1 x VGA, 1 x HDMI Operating mode Triplex VGA:... -
Page 60: Disposal
Disposal Disposal Information on the EU directive on waste Important information on disposing of electrical and electronic equipment batteries To protect the environment, do not dispose of the device Your product uses batteries which are subject to the with domestic waste at the end of its service life. It can be European directive 2006/66/EC and may not be disposed disposed of at one of the appropriate collection points in of with domestic waste. -
Page 61: Glossary
Domain this format. Name used for the identification of websites on the Internet (e.g. www.abus-sc.de). Network Time Protocol Dual Stream Method for synchronising the time across networks. Dual stream is a video transmission method. A high-... - Page 62 ZOLL (inches) Typical unit of screen size. One inch is equivalent to 2.54 Phase Alternating Line – European colour TV system. centimetres. The most common sizes of 16:9 displays Uses 576 visible image lines. Together with the lines are 26 inch (66 cm), 32 inch (81 cm), 37 inch (94 cm), 42 used for signal management, a full-screen image is inch (106 cm), 50 inch (127 cm) and 65 inch (165 cm).
-
Page 63: Internal Hdd
Internal HDD Internal HDD The internal hard disk drive (HDD) is very sensitive. Operate the device according to the following instructions in order to avoid drive errors. Important recordings should be backed up on external media to avoid unexpected data loss. Note ... - Page 64 Device overview ABUS 5-channel network recorder TVVR35002 Manufacturer: ABUS Security-Center GmbH & Co. KG Linker Kreuthweg 5 86444 Affing (Germany...
