Page 1: Installation Guide

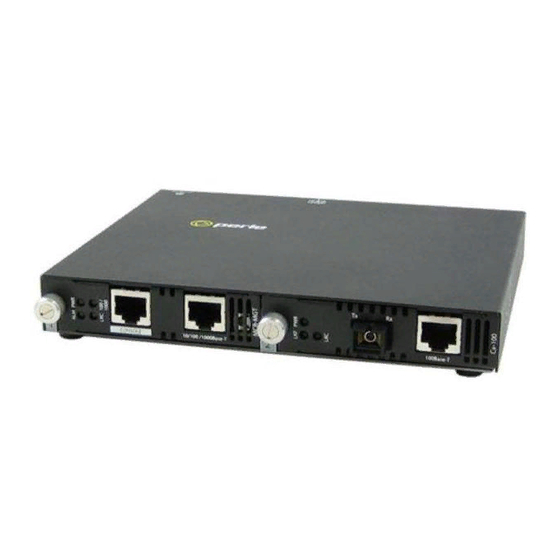

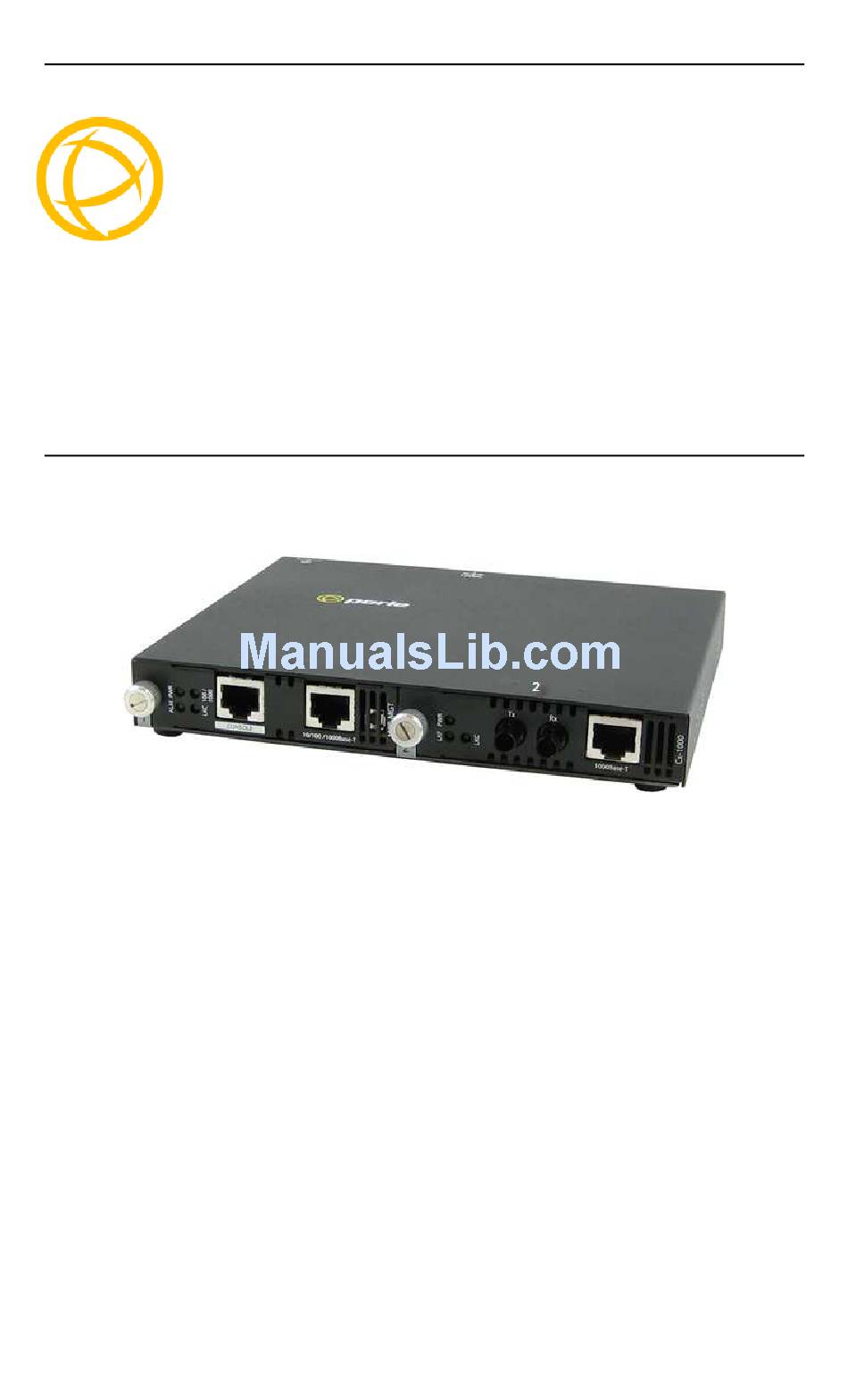

Perle SMI Media Converter Installation Guide P/N 5500316-10... - Page 2 Ethernet to Fiber networks. Overview This guide contains instructions necessary for the installation and operation of the Perle SMI Media Converter. This Media Converter consists of the MCR200 chassis, a MCR-MGT Management Module and one Media Converter Module.
- Page 3 1000/1110 Note 1 Note 1 Note 1: Fiber characteristics will depend on the SFP fiber module selected. Visit Perle’s web site for the most up to date Installation guides, models and specifications: http://www.perle.com/ Getting to know your SMI Media Converter...
- Page 4 User installation guide for the Media Converter Module • CDROM including firmware for the MCR-MGT Management Module and Media Modules, MCR- MGT User guide and MCR-MGT CLI guide. • This guide Front and Rear Panel Components Front View Rear View Perle SMI Media Converter Guide...
-
Page 5: Installation
(Refer to the product guide that came with your SMI Media Converter for individual LED definitions). Powering up the SMI Media Converter Note: The SMI Chassis should always be grounded for safe and proper operation. See Grounding the SMI Chassis 1. - Page 6 3. Set any jumpers and/or DIP switches on the Module to the desired operating mode. (Refer to the product guides that came with your SMI Media Converter). 4. Gently slide the module back into the slot until it becomes flush with the front of the chassis. Light pressure may be needed to seat the module.
- Page 7 Grounding the SMI Chassis (Optimal ) If your installation requires additional grounding the following procedure can be followed. Grounding the chassis requires the following items: • One grounding lug (not provided). • One 18 - 12 AWG wire (not provided).
- Page 8 Attach the power cord relief clip to the chassis and secure with the provided screw. • Plug the power cord into the AC power connector at the rear of the chassis. Plug the other end of the power cord into an appropriate power outlet. Perle SMI Media Converter Guide...
- Page 9 MCR-MGT Management Module Your SMI Media Converter comes with a powerful MCR- MGT Management Module that allows you to configure, monitor and control your SMI Media Converter. Features • Management access through AAA security such as RADIUS, TACACS, LDAP, Kerberos and NIS.
- Page 10 4 (DTR) 7 (DSR) 7 (RTS) 8 (CTS) Alternately, you can purchase the following two parts from Perle System Limited. • 3ft RJ45 straight through cable. Part #:04005120 • RJ-45 to DB9F-DTE (console adapter). Part #:04007040 Perle SMI Media Converter Guide...
- Page 11 Perle SetIP Utility On the CD provided with the MCR-MGT module, you will find an executable called “Perle SetIP”. You can run it directly from the CD or copy it to your local PC drive and execute it from there When the program runs, you can do the following;...
- Page 12 Serial Console Port 1. Using the proper cable connector, connect the MCR- MGT module to the serial port on your PC. Perle Systems has available for purchase an RJ-45 to DB9F- DTE console adapter (part #04007040) which can be used in conjunction with an RJ45 patch cable (part #04005120) to connect your PC’s serial port to the MCR-...
- Page 13 3 seconds (you can use a paper clip to do this). This will return the configuration to the factory default settings and will force the module to re-boot. Perle SMI Media Converter Guide...
- Page 14 The bootup should complete within 1 minute, at which time the PWR LED should go solid green. • Off - The MCR-MGT module has no power. • Red - Unrecoverable hardware error on MCR-MGT module. Perle SMI Media Converter Guide...
- Page 15 1000 Mbps. (Gigabit) • Yellow - The Ethernet speed on the management module is detected at 100 Mbps. • OFF - The Ethernet speed on the management module is detected at 10 Mbps Perle SMI Media Converter Guide...
-
Page 16: Troubleshooting
Loopback Mode • The fiber connection can also be verified by configuring the SMI Media Converter for loopback mode. Refer to the Media converter guide that came with your SMI Media Converter for DIP switch setup. MCR-MGT “PWR” LED is OFF •... - Page 17 MCR-MGT module. • If you don’t know what the IP address is, you can use the “SetIP” utility provided on the CD to display the IP address of all units on your LAN segment. Perle SMI Media Converter Guide...
- Page 18 Technical Specifications for the SMI Media Converter The following applies to all SMI-xxxx Media Converters: Max Power Input/Consumption:12V DC/15 Watts Operating Temperature: 0° C - 50° C (32° F - 122° F) Storage Temperature: -25° C - 70° C (-13° F - 158° F)
- Page 19 Console Port Cabling Requirements Pinout Console Port RTS (out) DTR (out) TxD (out) DSR (in) CTS (in) Note: Please refer to the product page on the Perle website for the most up to date specifications http://www.perle.com/ Perle SMI Media Converter Guide...
-
Page 20: Compliance Information
Failure to observe this warning could result in an eye injury or blindness. WARNING: Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Perle SMI Media Converter Guide... - Page 21 Warranty / Registration • Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support • Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
- Page 22 Copyright © 2011 Perle Systems Limited All rights reserved. No part of this document may be reproduced or used in any form without written permission from Perle Systems. Perle SMI Media Converter Guide...
