Summary of Contents for Perle S-4GPT-DSFP

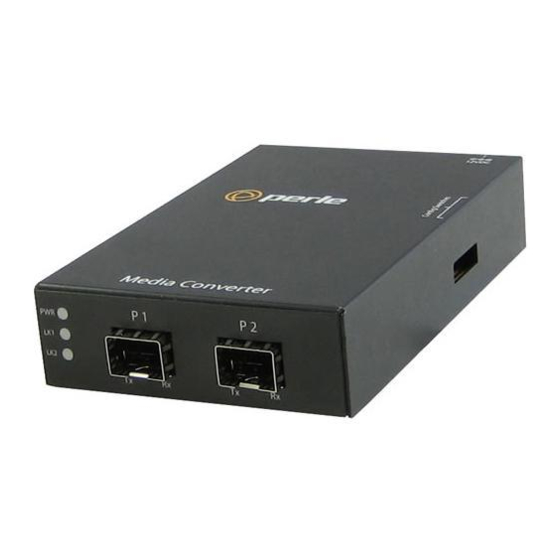

- Page 1 Perle Protocol Transparent Standalone Media Converters Installation Guide S-4GPT-DSFP S-4GPT-DSFP-XT Ver A.1.06.24.2019 Part # 5500334-10 Rev B...
- Page 2 SFP rates from 1 up to 4.25 Gbps Support for multi-rate SFPs Smart Link Passthrough Fiber Fault Alert Provides diagnosis LED functions Extended Temperature models available Refer the Perle web site for the most up to date Installation guides, www.perle.com models and specifications.
-
Page 3: Installation
Installation The default switch settings (all switches in the UP position) will work for most installations. See the Operation section of this guide for more details. The converter comes equipped with a bank of DIP switches and set of jumpers for setting configuration. The following steps are used to configure the Media Converter. - Page 4 and reflects this on the TX port of the other SFP by turning off the transmitter. When the signal (Link) gets restored and Signal Detector becomes active the affected transmitter gets re-enabled. Standard Mode: In Standard Mode the media converter will monitor the fiber link in the same manner.
- Page 5 Attaching the Power Cord Strain Relief Clip For extra power cable strain relief, attach the strain clip to the side of the unit, then thread the power cable through the clip in either one or two loops.
-
Page 6: Operation
Operation Powering up the Perle Media Converter 1. Connect the Perle supplied power adapter to the media converter. 2. Turn on the power at the source. 3. Check that the PWR LED light is lit. Terminal Block Connector 1. Ensure the Power Source is off prior to connection. -
Page 7: Technical Specifications
(-40°F - 158°F) Operating Humidity 5% to 90% non-condensing Storage Humidity 5% to 95% non-condensing Operating Altitude Up to 3,048 m (10,000 ft) Note: Please refer the product page on the Perle website for the most up to date models and specifications. -
Page 8: Compliance Information
For this reason, this unit should installed in a restricted access location. Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
