Instruction Manual

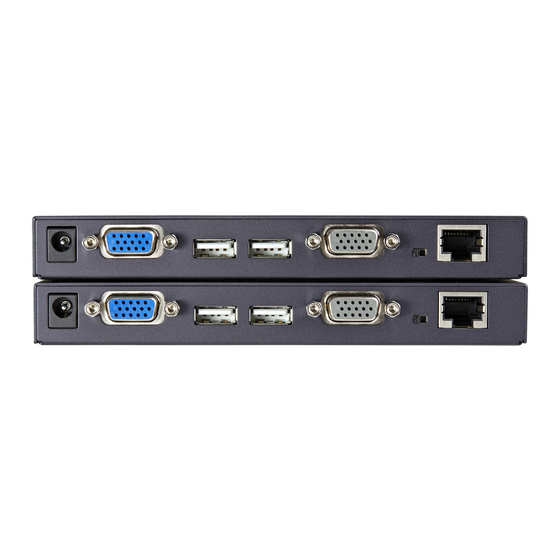

Long Range VGA USB KVM Console
Extender over Cat5 UTP - 1000 ft
SV565UTPUL
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/13/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV565UTPUL
Summary of Contents for StarTech.com SV565UTPUL
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/13/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Features ................................ 1 System Requirements ..........................1 Package Contents ............................. 2 Connecting Your KVM Extender ............3 Preparing Your Site ........................... 3 Installing the Remote Unit ........................5 Mask Hotkey Switch ..........................5 Video Calibration (Remote Unit only) ..........6 Using the KVM Extender ...............8 Using the Host Unit .......................... -
Page 4: Introduction
• USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console) System Requirements • 1 x StarTech.com integrated KVM cable for each, the host (included) and remote (optional) computer connections. If necessary, longer cables are available, StarTech.com ID: SVECONx (PS/2), SVECONUSx (USB) •... -
Page 5: Package Contents
This product will also control a KVM switch, allowing you to manage more than one computer remotely. In this configuration, you can connect the KVM extender’s Host Unit to the “console” ports on the KVM. You must use the provided power adapters if using this configuration. -
Page 6: Connecting Your Kvm Extender
Connecting Your KVM Extender Preparing Your Site Before you can install the product, you need to prepare your site. 1. Determine where the Host computer will be located and set up the computer. 2. Determine where the console devices (mouse, keyboard, monitor) will be located and place them appropriately. -
Page 7: Installing The Host Unit
2. Switch off the computer and disconnect any connected devices. 3. Using the provided StarTech.com integrated KVM cable, connect the end of the cable that has two (USB) or three (PS/2 + VGA) connectors to the VGA Out connector and the USB or mouse and keyboard PS/2 connectors on the Host computer as appropriate. -
Page 8: Installing The Remote Unit
VGA and input connections. Using a StarTech.com integrated KVM cable, connect the end of the cable that has two (USB) or three (PS/2) connectors to the VGA Out connector and the USB or mouse and keyboard PS/2 connectors on the computer as appropriate. -
Page 9: Video Calibration (Remote Unit Only)
Video Calibration (Remote Unit only) Video Calibration allows the user to adjust the equalization, gain and RGB skew on the Remote Unit to optimize video performance based on the length of the UTP cable being used, as well as other factors that may affect the signal. There are 16 levels of coarse tuning and up to 128/256 scales of fine tuning available for adjustment of the equalizer and gain. - Page 10 Hotkey Description Equalizer Adjustment (Sharpness): Num Lock and Caps Lock LEDs will flash. Press the left or right arrow keys for coarse tuning. Press and hold [SHIFT] and use the left and right arrow keys for fine tuning. Gain Adjustment (Brightness): Caps Lock and Scroll Lock LEDs will flash.
-
Page 11: Using The Kvm Extender
Using the KVM Extender This section details how to use your KVM extender at both the host and remote locations. Using the Host Unit The Host Unit allows users connected to the Host and Remote units to share control of devices (hosts, computers, KVM Switches) connected to it. -
Page 12: Keyboard Shortcut Command Sequences
Keyboard Shortcut Command Sequences With Compatibility Standard Command Description Mode Enabled Toggles control of Computer [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] A between Auto, Local, and Remote modes [Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] Cancels the hotkey sequence Enables (2 beeps) or disables (1 beep) Compatibility Mode... - Page 13 With Compatibility Standard Command Description Mode Enabled Privacy Setting: A. Host Unit in Local mode ( LED B: Off, LED A: On) 1 beep: Reset to Factory Default. 2/3 beeps: Disable the Local Unit output video signal. B. Host Unit in Auto mode ( LED A&B flashes alternately) 1 beep: Reset to Factory Default.
-
Page 14: Beep Codes
Beep Codes Some of the keyboard command sequences you issue to the Host Unit have multiple possible settings. The unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled 2 beeps: enabled... -
Page 15: Led Indicators
Using the Remote Unit The Remote Unit allows a user at the Remote Unit to assume control of devices connected to the Host Unit, if the Host Unit is set to Auto or Remote mode, and it also permits the user seated at the Remote Unit to use any connected system as though the KVM Extender was transparent. - Page 16 With Compatibility Standard Command Description Mode Enabled Switches control to Computer A (input allowed only if the Host [Ctrl] - [Ctrl] - [2] [Ctrl] - [Ctrl] - [E] - [2] Unit is in Remote or Auto mode) Toggles console control [Ctrl] - [Ctrl] - [F2] [Ctrl] - [Ctrl] - [E] - [F2] between Computer A and...
-
Page 17: Alternative Hot-Key Control
Alternative Hot-Key Control Instead of using the keyboard leading hot-key sequence, [Ctrl] - [Ctrl], the “Selection” button on the Host or Remote units can be used. These commands can be used regardless if the “Mask Hotkey” feature is enabled. Command Sequence - Host Unit Hot-Key Description [press + hold Selection button for... -
Page 18: Specifications
Specifications Maximum Resolution 1600x1200/1920x1200 (at maximum UTP cable length) Maximum Range 948 feet (300 meters) Network Cabling Straight-through Unshielded Twisted Pair (UTP) Type Cat. 5/5e/6 Each, Host and Remote Unit 1 x DE-15 VGA female 1 x DE-15 “Computer” female Connectors 1 x RJ-45 Ethernet female 2 x USB type A female (for keyboard/mouse only) -
Page 19: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
