StarTech.com SV565UTPDUV Quick Start Manual

Quick Start Guide
Uncompressed Video HDMI/DVI over Cat5e/6 KVM Extender - 330ft (100m)
SV565UTPHDU / SV565UTPDUV
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For complete instruction manual, please visit:
http://www.StarTech.com/SV565UTPHDU or http://www.StarTech.
com/SV565UTPDUV
Packaging Contents
• 1 x Local Extender Unit
• 1 x Remote Extender Unit
• 2 x Mounting Brackets
• 1 x HDMI Cable
• 1 x USB Cable
• 2 x Universal Power Adapters
• 6 x Power Cords (2 sets, NA/EU/UK)
• 1 x Quick Start Guide
System Requirements
• A USB-compatible computer with an HDMI / DVI output
• USB 1.1 or 2.0 Keyboard / Mouse
• An HDMI / DVI display
• A minimum of Cat 5e UTP cable with two Cat 5e RJ45 connectors
(if using surface cabling)
OR
• A minimum of Cat 5e UTP cabling with two information outlets
and two Cat 5e patch cords with Cat 5e RJ45 connectors (if using
premise cabling).
For the most up-to-date information, please visit: www.startech.com
Cabling
Solid core Category 6 STP cable with Category 6 RJ45 connectors
is recommended for best performance. Using Cat 5e or unshielded
Cat 6 cabling may leave your signal more susceptible to interference
and noise which may result in poor video performance or reduced
extension distance.
Cable Type
Solid Core
Cat 5e UTP
Solid Core
Cat 5e STP
Solid Core
Solid Core
Solid Core
*actual product may vary from photos
Installation
*SV565UTPHDU model shown in illustrations

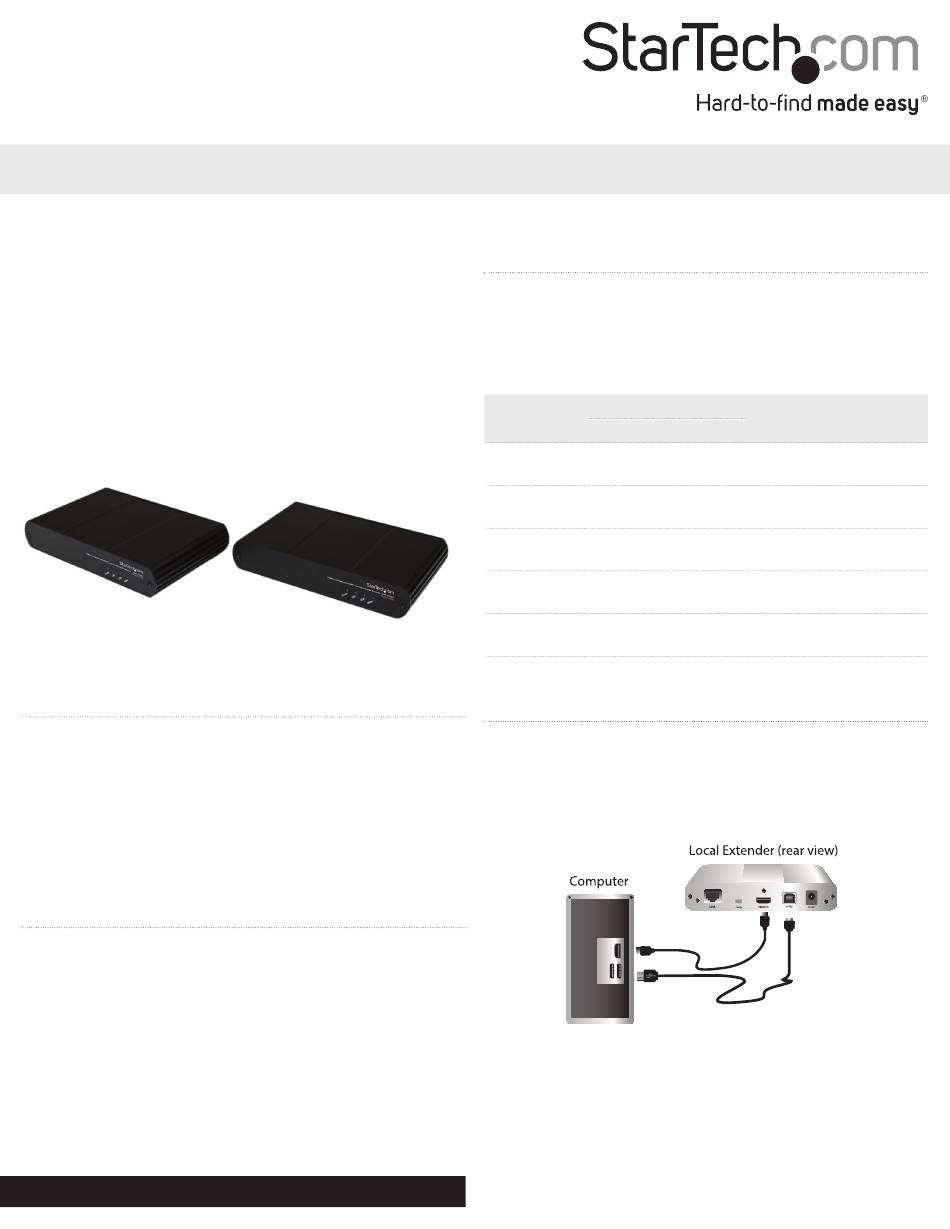

1. Using the included HDMI or DVI and USB cables, connect the
Local Extender to a computer.
2. Connect the Remote Extender to a monitor or TV with a high
quality HDMI or DVI cable (not included). Connect your USB
devices (e.g. keyboard and mouse) to the Remote Extender.
Maximum Distance
Uncoiled
100m
(330 ft)
100m
(330 ft)
100m
Cat 6 UTP (330 ft)
100m
Cat 6 STP (330 ft)
100m
Cat 7 STP (330 ft)
Notes
Coiled
70m High susceptibility to
(229 ft) electrical interference
80m Moderate susceptibility to
(262 ft) electrical interference
100m High susceptibility to
(330 ft) electrical interference
100m
Recommended
(330 ft)
100m
Recommended
(330 ft)
Manual Revision: 04/30/2021
