Page 1: Distribution Amplifiers

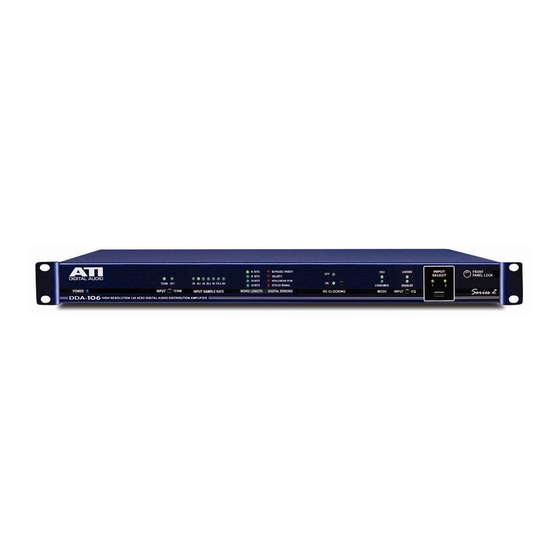

DDA-106 SERIES 2 192kHz AES/EBU DIGITAL AUDIO DISTRIBUTION AMPLIFIERS OPERATING AND MAINTENANCE MANUAL © Copyright 2011, ATI Audio Inc. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www. audio.com ■ ■... - Page 2 Dolby E encoded AES signals, or other signals that should not be re- clocked. DDA-106 Series 2 units work with AES signals that contain sample rates from 27 through 192kHz and16-bit through 24-bit density, thus permitting very high resolution signals to be distributed.
- Page 3 VERF then becomes the transmitted validity bit (V) and can be used by downstream error correction devices to interpolate through errors. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www.
- Page 4 (Channel Status, User and Validity bits) to be slaved to the block structure of the receiver. In the transparent mode the propagation delay of data is less than 25 nanoseconds even at the lowest sample rate. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www.
- Page 5 Select a cable for losses less than 20dB at 12MHz (for data rates up to 96kHz) at the maximum distance you require. Runs up to 1000 meters should be readily achievable with low loss coax. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■...
- Page 6 IEC320 3 pin connector 1 RU, 19”(48.3cm) W X 1.75”(4.5cm) H X 8.5”(21.6cm) D SIZE WEIGHT 7 lbs (3.2kg) net; 9 lbs (4.1kg) shipping weight MODELS: DDA-106XLR DDA-106BNC ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www. audio.com ■ ■...
- Page 7 ATI reserves the right to modify or discontinue, without prior notice to you, any model or style product. If warranty problems arise, or if you need assistance in using your product contact us. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■...
