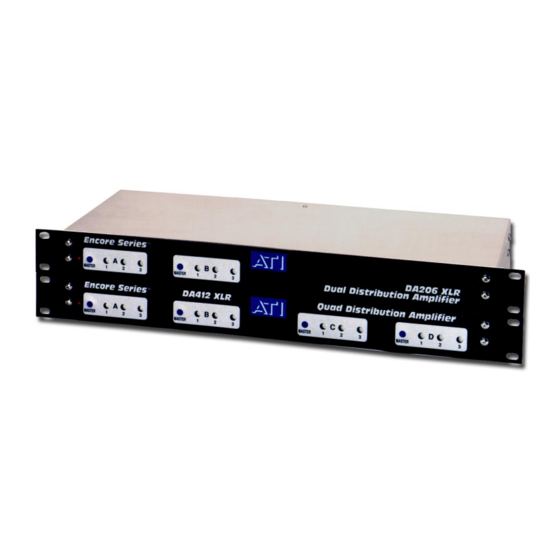

- Page 1 DA206 AND DA412 ANALOG AUDIO DISTRIBUTION AMPLIFIERS OPERATING AND MAINTENANCE MANUAL © Copyright 2011, ATI Audio Inc. ATI Audio Inc. ■ Tel: 856-719-9900 ■ Fax: 856-504-0220 ■ sales@atiaudio.com ■ www. audio.com...
- Page 2 20dB range to accommodate -10dbu semi-pro up to +8dBm line levels. Another of the DA206 and DA412 Distribution Amplifiers many claims to fame is the use of XLR type input and output connectors. XLRs are easy to use but make paralleling inputs for 1X6 or 1X12 operation difficult.
- Page 3 +4dBm out. The input paralleling jumper plugs (P4 & P5, P6 & P7, P10 & P11) are located under the cover just behind the input XLR connectors. They must be used in ATI Audio Inc. ■ Tel: 856-719-9900 ■...
- Page 4 (e.g.; P4 & P5 together) to properly jumper HI & LO input lines. These jumper plugs let you use a DA206 as a Dual 1X3 or a Mono 1X6, and a DA412 as a Quad 1X3, Stereo 1X6 or a Mono 1X12 DA.
- Page 5 19” (48.3cm) W X 1.75” (4.45cm) H X 7.5” (19cm) D SIZE: SHIPPING WEIGHT DA206: 5 lbs. (2.3kg) DA412: 6 lbs. (2.7kg) MODELS AVAILABLE: DA206 Dual 1X3 Active balanced outputs DA412 Quad 1X3 Active balanced outputs ATI Audio Inc. ■ Tel: 856-719-9900 ■ Fax: 856-504-0220 ■ sales@atiaudio.com ■...
- Page 6 ATI reserves the right to modify or discontinue, without prior notice to you, any model or style product. If warranty problems arise, or if you need assistance in using your product contact us. ATI Audio Inc. ■ Tel: 856-719-9900 ■...
