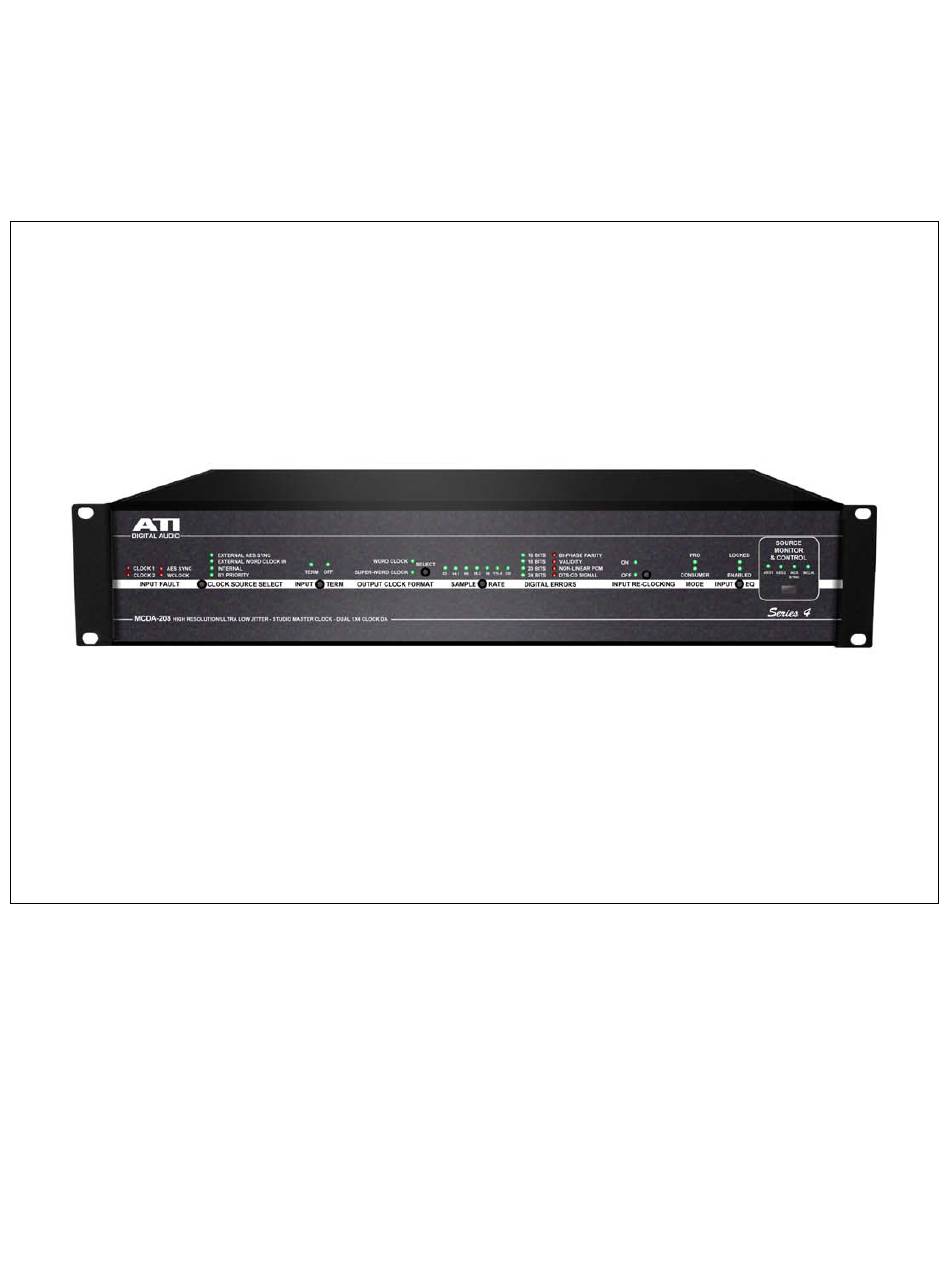

- Page 1 MCDA-208 Ultra-Low-Jitter Studio Master Clock Dual 1x4 AES/EBU Distribution Amplifier OPERATING AND MAINTENANCE MANUAL © Copyright 2011, DaySequerra Corp. Day Sequerra ! 154 Cooper Rd. #902 ! W. Berlin, NJ 08091 ! Voice 856-719-9900 ! sales@daysequerra.com ! www.atiaudio.com...
- Page 2 /)+*"$$"*2()& OO& ,5%62-26"*2()+& OQ& R"00")*.& O3& & MCDA-208 FEATURES Accepts AES3, S/PDIF, AES11, and Word Clock inputs • Independent Dual 1X4 AES/EBU Clock Distribution Amplifiers • Generates standard sample rates of 44.1, 48, 88.2, 96, 176.4 or 192 kHz •...
-
Page 3: Maintenance
FCC CFR 47, Part 15. CE Declaration of Conformity ATI Audio Inc., West Berlin, New Jersey 08091 USA, declares that all Model MCDA-208/ units are in conformity with the following EU regulations and amendments: Low Voltage Directive (LVD) 2006/95/EC (replaces 73/23/EEC) Electromagnetic Compatibility (EMC): EMC Directive 2004/108/EC EMC: EN55103-1/-2:2009, electromagnetic environments E2. -
Page 4: Air Temperature And Humidity
AES3-2003, AES11-2003 and IEC958 SPDIF DESCRIPTION The ATI Model MCDA-208 contains an ultra-low jitter studio master clock generator, dual 1X4 AES/EBU Digital Audio Distribution. Operation of the unit is simple and straightforward, and it is housed in a rugged 2U rack mount enclosure. All audio connections are made directly to the unit’s built-in BNC connectors, and no special breakout cables or accessory jack panels are... - Page 5 Since the purity of the clock reference is critical to the quality of the finished audio product, ATI has taken steps to assure that the MCDA generates the lowest jitter clock reference available. The MCDA’s internal reference is derived from a 24 MHz precision oscillator and divided down to achieve an ultra-stable signal, rather than multiplying up from a base reference as in some other units.
-
Page 6: Power Input Specifications
POWER INPUT SPECIFICATIONS: Voltage ..................85 ~ 264Vac Frequency ..................47 to 63Hz "#$%&'()!"*+,*-! - Page 7 FRONT PANEL DISPLAYS AND SWITCHES POWER Indicates that the MCDA is powered and power switch is on. INPUT FAULT Indicates loss of carrier on any of the four inputs, INPUT 1 (CLOCK 1), INPUT 2 (CLOCK 2), AES SYNC-IN (AES SYNC) or WORD CLOCK INPUT (WCLK). CLOCK SOURCE SELECT Selects timing reference source for clock generator.
- Page 8 INPUT RE-CLOCKING Indicates Input Re-Clocking is On or Off. Press the RE-CLOCKING button to toggle the setting. Note that this function applies only to the AES/EBU inputs and does not affect the AES External Sync and Word Clock inputs. Settings are individual for either INPUT 1 (AES 1) or INPUT 2 (AES 2).
-
Page 9: Configuration Dip Switches
The switches are labeled left to right BANK A switch “1” is “DIP Switch 1 in the following tables. DIP Switches 7 through 12 have no function in the MCDA-208/DA106. In this view Outputs 1-4 are connected to input 1. OUTPUT 5 to 8 are connected to Word Clock generated by the WORD CLOCK INPUT. - Page 10 SOURCE SELECTION FOR AES/EBU OUTPUTS 1, 2, 3 & 4 EXT AES WORD AES 1 Selected AES/EBU AES/EBU SYNC CLOCK FRAME Source " INPUT 1 INPUT 2 INPUT INPUT CLOCK Down Down Switch 1 Down Down Down Down Switch 2 Down Down Switch 3...
- Page 11 MCDA-208 BLOCK DIAGRAM Input processing includes transformer isolation, cable termination, cable equalization, and AES digital audio interface receiver (DIR) and digital audio interface transmission (DIT). The output of each input signal processor is routed to a multiplexing chip which allows connection to each of the three output groups.
- Page 12 INSTALLATION LOCATION The MCDA is readily installed into a 2 RU, 19” rack. The MCDA is only to be installed in an inside location where it is protected from inclement weather. Operate the MCDA in temperature range of +5 to +40°C (105°F), with relative humidity ranging from 5 to 85%. POWER Connector for socket fused IEC 320/C13.
- Page 13 MCDA-208/ SPECIFICATIONS INPUTS XLR female for AES/EBU and AES External Sync BNC for Clock CONNECTORS and Word Clock LEVEL XLR 200mVp-p minimum; BNC 1 Vp-p Transformer isolated, balanced and floating, XLR 110!, BNC 75 !; IMPEDANCE input terminations may be switched in or out via front panel control...
- Page 14 One Year Limited Warranty DaySequerra warrants ATI products to be free from defects in materials and workmanship to its original owner for one (1) year from the date of purchase. DaySequerra will repair or replace such product or part thereof that upon inspection by DaySequerra, is found to be defective in materials or workmanship subject to conditions contained herein.
- Page 15 For more information, please call 856-719-9900, visit www.atiaudio.com or email us at support@daysequerra.com.! Day Sequerra ! 154 Cooper Rd. #902 ! W. Berlin, NJ 08091 ! Voice 856-719-9900 ! sales@daysequerra.com ! www.atiaudio.com "#$%&'()!"*+,*-!
